6.5 Inch 640×480 Medical Grade Touch Screen Monitor TX17D01VM5BPA KOE A-Si TFT-LCD
TX17D01VM5BPA KOE a-Si TFT-LCD ,6.5 inch, 640×480 for Medical Imaging
TX17D01VM5BPA Basic Information
| Panel Model | TX17D01VM5BPA |
|---|---|
| Panel Brand | KOE |
| Descrition | a-Si TFT-LCD ,6.5 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Remarks | IPS-Like |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
TX17D01VM5BPA Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 122 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.069×0.207 mm (H×V) |
| Pixel Pitch | 0.207×0.207 mm (H×V) |
| Weight | 240g |
| Surface | Antiglare |
| Active Area | 132.48×99.36 mm (H×V) |
| Bezel Area | 135.9×102.8 mm (H×V) |
| Outline Dimension | 153×118 mm (H×V) |
| Outline Depth | 9.1 (Typ.) mm |
| Holes & Brackets | Side mounting holes (4-M2) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Embeded (4-wire Resistive, Film / Glass) |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
TX17D01VM5BPA Optical Features
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 640 cd/m² (Typ.) |
| Contrast Ratio | 350 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 50% NTSC (CIE1931) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.300; Wy:0.310 |
| White Variation | 1.43 (Max.)(9 points) |
| Sunlight Readable | N |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
TX17D01VM5BPA Electronics Feature
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (180°) |
| Total Power Consumption | 4.56W |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| SP14Q008 | KOE | 5.7" | 320×240 |
| SP14Q001-C1 | KOE | 5.7" | 320×240 |
| LMG9460XUCC-01 | KOE | 10.4" | 640×480 |
| LMG9460XUCC | KOE | 10.4" | 640×480 |
| LMG9400XUCC-A2 | KOE | 10.4" | 640×480 |
| LMG9400XUCC-A1 | KOE | 10.4" | 640×480 |
| LMG9400XUCC | KOE | 10.4" | 640×480 |
| LMG9200XUCC-A | KOE | 9.4" | 640×480 |
We also have other industrial LCD panels, pls contact to us for the further information

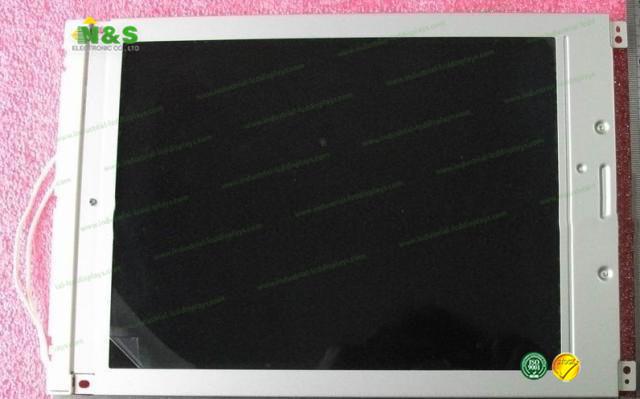

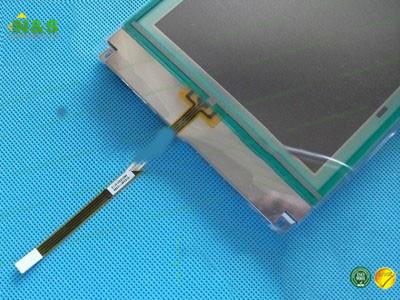

TX17D01VM5BPA pictures
