LTM150XH-L04 Medical Lcd Screen Replacement 15.0 Inch 1024×768 Long Lifespan
LTM150XH-L04 SAMSUNG a-Si TFT-LCD ,15.0 inch, 1024×768 for 60Hz
LTM150XH-L04 Basic Information
| Panel Model | LTM150XH-L04 |
|---|---|
| Panel Brand | SAMSUNG |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
LTM150XH-L04 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 1.35Kgs (Max.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 304.1×228.1 mm (H×V) |
| Bezel Area | 307.2×231.1 mm (H×V) |
| Outline Dimension | 331.6×254.8 mm (H×V) |
| Outline Depth | 12.5±0.5 mm |
| Holes & Brackets | Face mounting holes (2-Φ3.2, 2-R1.6) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare
LTM150XH-L04 Optical Features
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 330 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
| Display Color | 16.2M (6-bit + FRC) |
| Response Time | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/55/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| Sunlight Readable | N |
We can do for You:
- Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
LTM150XH-L04 Electronics Feature
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS429QC14 | Samsung | 4.3" | 540×960 |
| AMS300FW01-0 | Samsung | 3.0" | 240×400 |
| AMS260CM61 | Samsung | 2.6" | 240×320 |
| AMS410GJ01-0 | Samsung | 4.1" | 480×800 |
| AMS397GE37 | Samsung | 4.0" | 480×800 |
| AMFN888 | Samsung | 3.1" | 480×800 |
| AMS326PM01 | Samsung | 3.3" | 854×480 |
| AMBB004 | Samsung | 2.2" | 240×320 |
We also have other industrial LCD panels, pls contact to us for the further information

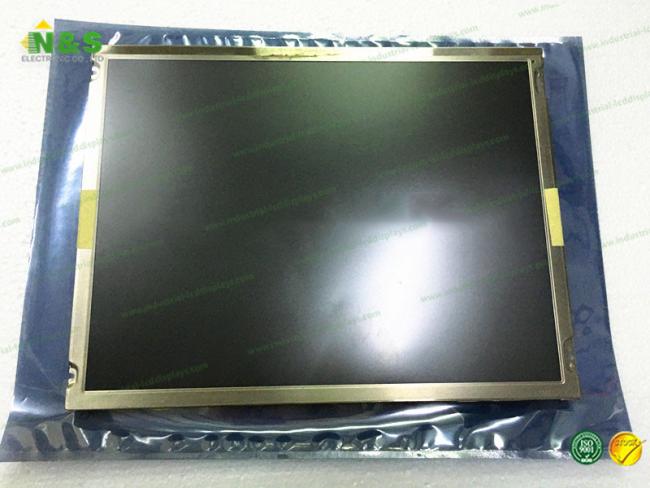

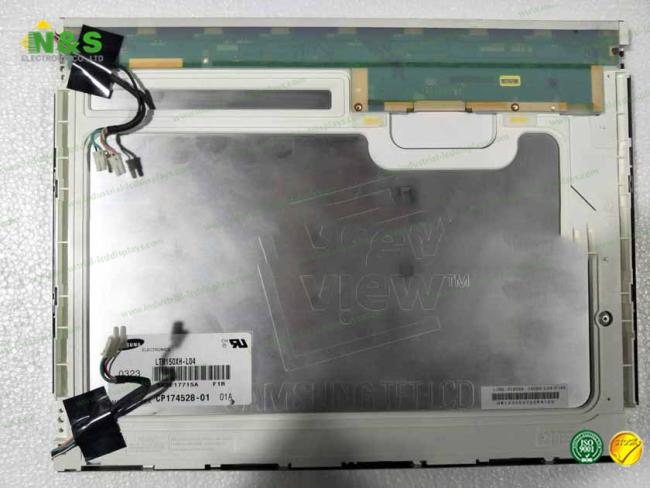

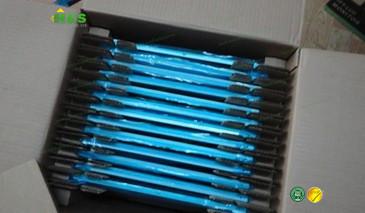

LTM150XH-L04 pictures
