15.0 Inch 1024×768 Medical LCD Displays LTA150B851F Toshiba Matsushita A-Si TFT-LCD
New and original LTA150B851F Toshiba Matsushita a-Si TFT-LCD ,15.0 inch, 1024×768 for Industrial Application
LTA150B851F Basic Information
| Panel Model | LTA150B851F |
|---|---|
| Panel Brand | Toshiba Matsushita |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -10 ~ 70 °C |
| Storage Temperature | -20 ~ 80 °C |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
LTA150B851F Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 1.30Kgs (Typ.) |
| Active Area | 304.128×228.096 mm (H×V) |
| Bezel Area | 307.2×231.1 mm (H×V) |
| Outline Dimension | 348×254.7 mm (H×V) |
| Outline Depth | 14.0 (Typ.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.6) on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our services
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.
LTA150B851F Optical Features
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 450 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/45/75 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable | N |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
LTA150B851F Electronics Feature
| Reverse Scan | Yes (U/D, L/R) |
|---|---|
| Total Power Consumption |
17.1W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTD121LA7SG (Z) | TOSHIBA | 12.1" | 1024×768 |
| LTD154LZ1SG | TOSHIBA | 15.4" | 1920×1200 |
| LTD141LA1SG | TOSHIBA | 14.1" | 1024×768 |
| LTD121EA43G | TOSHIBA | 12.1" | 1024×768 |
| LTH15C503-A | TOSHIBA | 15.0" | 1024×768 |
| LTM024D161 | TOSHIBA | 2.4" | 240×320 |
| LTM030DH60 | TOSHIBA | 3.0" | 240×427 |
| LTD154LZ1SG (Z) | TOSHIBA | 15.4" | 1920×1200 |
We also have other industrial LCD panels, pls contact to us for the further information

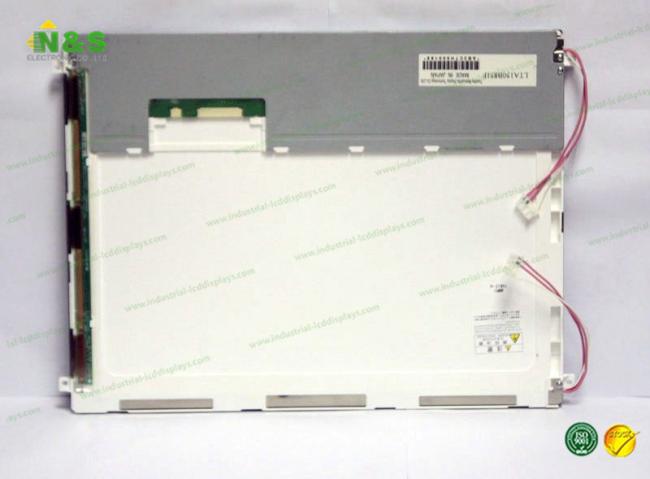

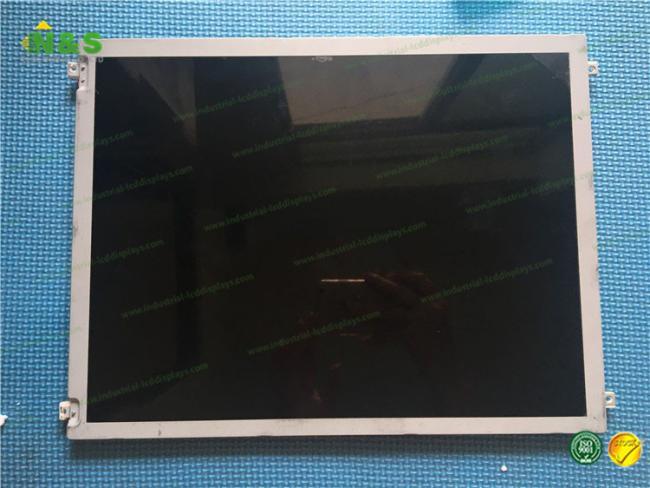

LTA150B851F pictures
