AA084VC05 Mitsubishi Medical LCD Panel A-Si TFT-LCD 8.4 Inch 640×480 60Hz
AA084VC05 Mitsubishi a-Si TFT-LCD ,8.4 inch, 640×480 for 60Hz
AA084VC05 Basic Information
| Panel Model | AA084VC05 |
|---|---|
| Panel Brand | Mitsubishi |
| Descrition | a-Si TFT-LCD ,8.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | T-51638D084J-FW-A-AB |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -20 ~ 80 °C |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
AA084VC05 Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 95 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.089×0.267 mm (H×V) |
| Pixel Pitch | 0.267×0.267 mm (H×V) |
| Weight | 360g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 170.88×128.16 mm (H×V) |
| Bezel Area | 174.9×132.2 mm (H×V) |
| Outline Dimension | 199.5×149 mm (H×V) |
| Outline Depth | 11.5±0.5 mm |
| Holes & Brackets | Face mounting holes (4-Φ3.4) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
AA084VC05 Optical Features
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 480 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.324 |
| White Variation | 1.30 (Max.)(5 points) |
| Sunlight Readable | N |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
AA084VC05 Electronics Feature
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (180°) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA150XN21 | Mitsubishi | 15.0" | 1024×768 |
| AA121TD03 | Mitsubishi | 12.1" | 1280×800 |
| AA150XT11-DE-01 | Mitsubishi | 15.0" | 1024×768 |
| AA121XN11-DE-01 | Mitsubishi | 12.1" | 1024×768 |
| AA104XF12-DE-02 | Mitsubishi | 10.4" | 1024×768 |
| AA084XE11-DA-02 | Mitsubishi | 8.4" | 1024×768 |
| AA084XE11-DA-01 | Mitsubishi | 8.4" | 1024×768 |
| AA084SD11-CA-01 | Mitsubishi | 8.4" | 800×600 |
We also have other industrial LCD panels, pls contact to us for the further information

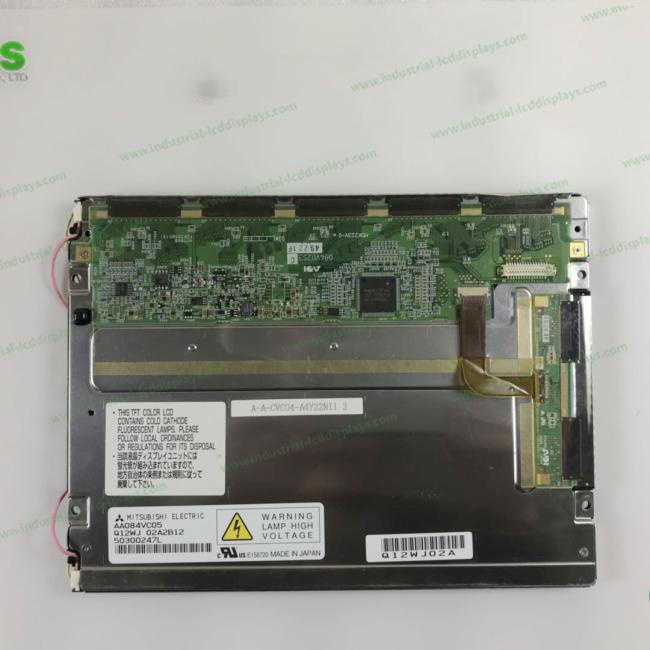

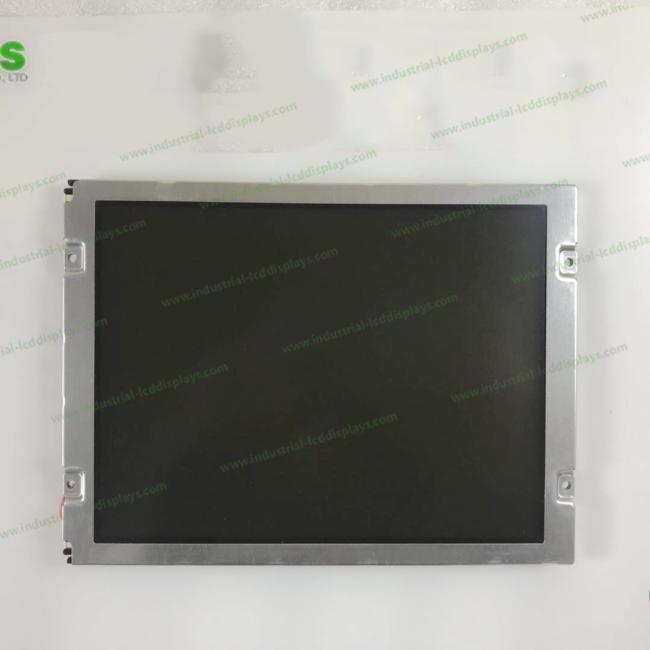

AA084VC05 pictures
