New / Original Industrial Lcd Screen AA070ME11 Mitsubishi A-Si TFT-LCD 7.0 Inch
New and original AA070ME11 Mitsubishi a-Si TFT-LCD ,7.0 inch, 800×480 for Industrial Application
AA070ME11 Basic Information
| Panel Model | AA070ME11 |
|---|---|
| Panel Brand | Mitsubishi |
| Descrition | a-Si TFT-LCD ,7.0 inch, 800×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C |
| Remarks | NCM |
Packing & Delivery for our LCD Screen Panel Replacements:
- Anti-static Bag Packing.
- Anti-Shock Bubble Bag Packing
- Foam and Hard Carton Packing
- Picked up by forward and delivered by express services.
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
AA070ME11 Mechanical Features
| Dot Resolution | 800(RGB)×480 (WVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 133 PPI |
| Aspect Ratio | 15:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch | 0.1905×0.1905 mm (H×V) |
| Weight | 200g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 152.4×91.44 mm (H×V) |
| Bezel Area | 154.4×93.5 mm (H×V) |
| Outline Dimension | 169.8×109.7 mm (H×V) |
| Outline Depth | 8.9±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen
AA070ME11 Optical Features
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 1500 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut | 54% NTSC (CIE1931) |
| Response Time | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.43 (Max.)(5 points) |
| Sunlight Readable | Y |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
AA070ME11 Electronics Feature
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (180°) |
| Total Power Consumption | 5.6W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA142XE02 | Mitsubishi | 14.2" | 1024×768 |
| AA142XE01 | Mitsubishi | 14.2" | 1024×768 |
| AA142XD11 | Mitsubishi | 14.2" | 1024×768 |
| AA142XC11 | Mitsubishi | 14.2" | 1024×768 |
| AA142XC03 | Mitsubishi | 14.2" | 1024×768 |
| AA142XC02 | Mitsubishi | 14.2" | 1024×768 |
| AA142XC01 | Mitsubishi | 14.2" | 1024×768 |
| AA142XB11 | Mitsubishi | 14.2" | 1024×768 |
We also have other industrial LCD panels, pls contact to us for the further information

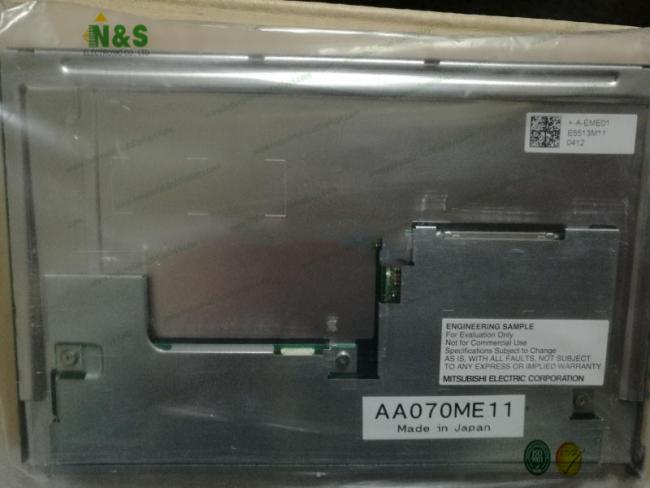

AA070ME11 pictures
