15.0 Inch 1024×768 AUO LCD Panel G150XTN01.0 Descrition 1024×768 85 PPI Pixel Density
G150XTN01.0 AUO a-Si TFT-LCD ,15.0 inch, 1024×768 for Medical Imaging
G150XTN01.0 Basic Information
| Panel Model | G150XTN01.0 |
|---|---|
| Panel Brand | AUO |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -30 ~ 85 °C |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
G150XTN01.0 Mechanical Features
| Dot Resolution | 1024(2)×768(2) (XGA) |
|---|---|
| Pixel Configuration | RGBW Rectangle |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1485×0.1485 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 1.00Kgs (Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 304.128×228.096 mm (H×V) |
| Bezel Area | 310.18×234.40 mm (H×V) |
| Outline Dimension | 326.5×253.5 mm (H×V) |
| Outline Depth | 13.1 (Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
G150XTN01.0 Optical Features
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
| Display Color | 16.2M (6-bit + FRC) |
| Color Gamut | 60% NTSC (CIE1931) |
| Response Time | 5.7/2.3 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
G150XTN01.0 Electronics Feature
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 6.34W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| B101EAN02.5 CELL | AUO | 10.1" | 800×1280 |
| B079XAN02.0 CELL | AUO | 7.9" | 768×1024 |
| B133XW03 V4 CELL | AUO | 13.3" | 1366×768 |
| B101EAN02.1 CELL | AUO | 10.1" | 800×1280 |
| H429AAN01 | AUO | 4.3" | 540×960 |
| T430HVN02.1 CELL | AUO | 43" | 1920×1080 |
| T430HVN01.4 CELL | AUO | 43" | 1920×1080 |
| T550QVN01.2 CELL | AUO | 55" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information

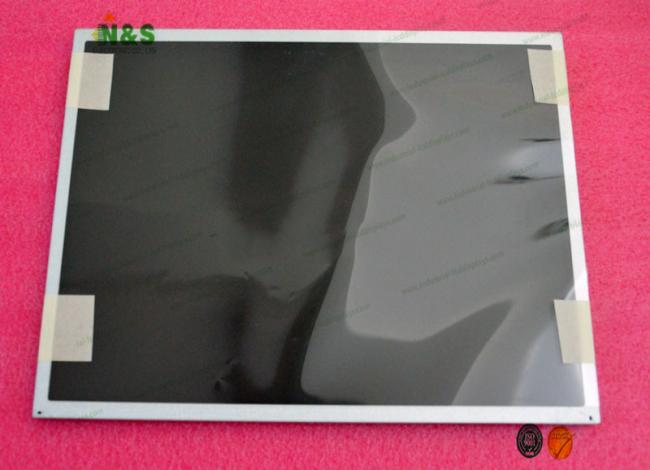

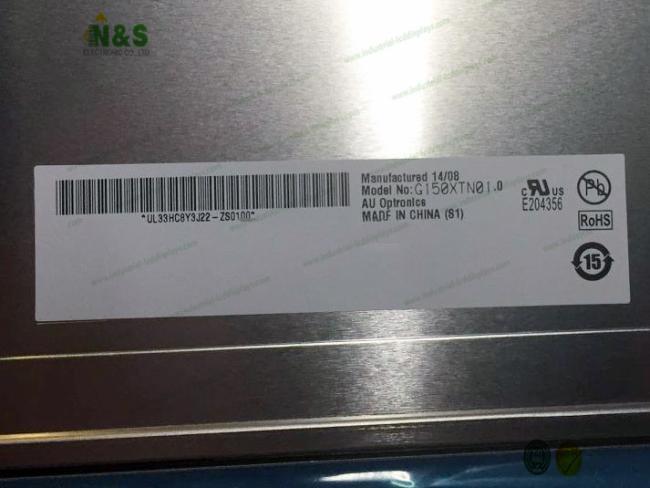

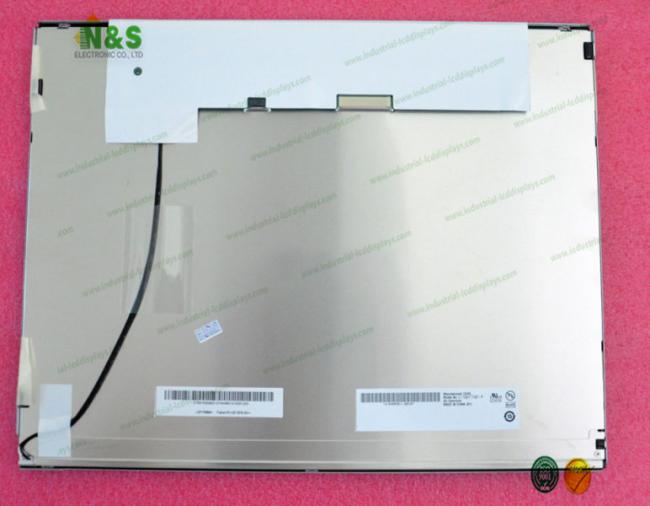

G150XTN01.0 pictures
