Flat Rectangle Sharp LCD Display Module LQ035Q7DH06 3.5 Inch Hard Coating Surface
LQ035Q7DH06 SHARP a-Si TFT-LCD ,3.5 inch, 240×320 for 60Hz
LQ035Q7DH06 Basic Information
| Panel Model | LQ035Q7DH06 |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,3.5 inch, 240×320 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -10 ~ 70 °C |
| Storage Temperature | -25 ~ 70 °C |
| Remarks | AD-TFT (Advanced TFT), 2 in 1 FPC |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
LQ035Q7DH06 Mechanical Features
| Dot Resolution | 240(RGB)×320 (QVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 113 PPI |
| Aspect Ratio | 3:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch | 0.2235×0.2235 mm (H×V) |
| Weight | 45g (Typ.) |
| Surface | Hard coating (2H) |
| Active Area | 53.64×71.52 mm (H×V) |
| Bezel Area | 57.4×75.2 mm (H×V) |
| Outline Dimension | 65×86.2 mm (H×V) |
| Outline Depth | 4.0±0.2 mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Embeded (4-wire Resistive) |
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
LQ035Q7DH06 Optical Features
| Display Mode | TN, Normally White, Transflective |
|---|---|
| Brightness | 225 cd/m² (Typ.) |
| Contrast Ratio | 3:1 (Typ.) (Reflective) |
| Display Color | 262K (6-bit) |
| Response Time | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle | 40/40/40/50 (Typ.)(CR≥2) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.300; Wy:0.330 |
| White Variation | 1.25/1.43 (Typ./Max.)(9 points) |
| Reflectance Ratio | 2.5/4.0% (Min./Typ.) |
| Sunlight Readable | Y |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
LQ035Q7DH06 Electronics Feature
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (U/D, L/R) |
Below are our other LCD panels stock for your easy reference
| Panel Model | Brand | Size | Resolution |
| LM8M64R | SHARP | 8.1" | 640×240 |
| LM32K102 | SHARP | 4.7" | 320×240 |
| LM12S469 | SHARP | 12.1" | 800×600 |
| LM64P60 | SHARP | 10.4" | 640×480 |
| LM64C35 | SHARP | 10.4" | 640×480 |
| LM64C08P | SHARP | 9.4" | 640×480 |
| LM64C031 | SHARP | 9.4" | 640×480 |
| LM32K07 | SHARP | 5.7" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information

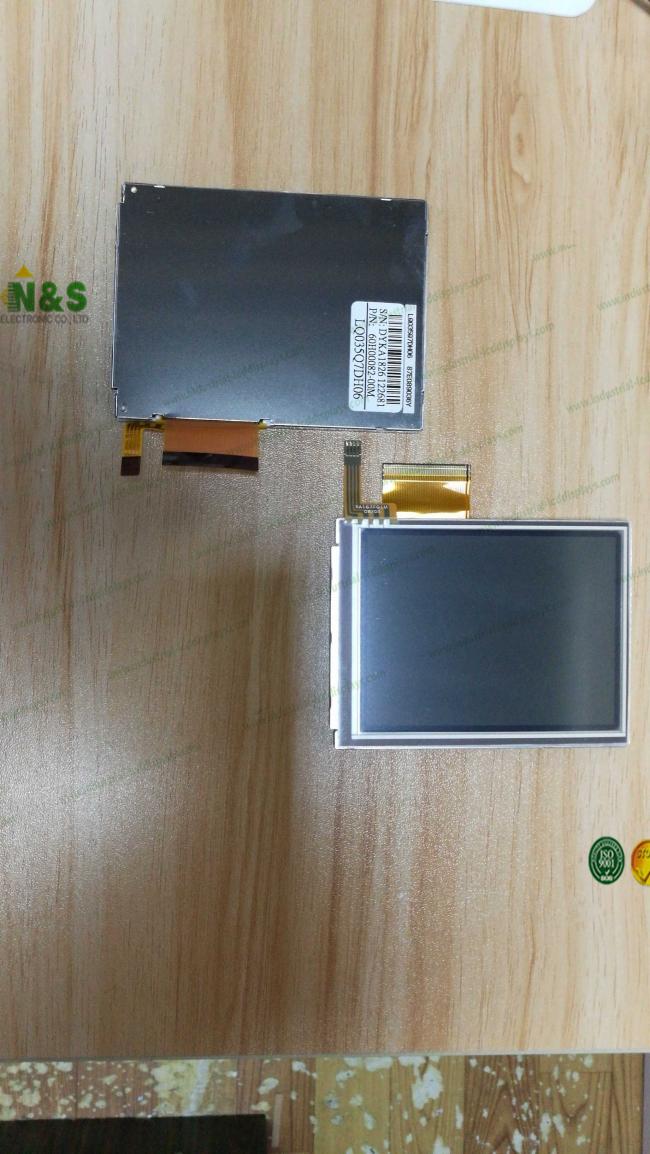

LQ035Q7DH06 pictures
