Hard Coating Surface Sharp LCD Panel LQ035Q7DB02 3.5 Inch 240×320 Industrial Application
LQ035Q7DB02 SHARP a-Si TFT-LCD ,3.5 inch, 240×320 for Industrial Application
LQ035Q7DB02 Basic Information
| Panel Model | LQ035Q7DB02 |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,3.5 inch, 240×320 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -10 ~ 60 °C |
| Storage Temperature | -25 ~ 70 °C |
| Remarks | AD-TFT (Advanced TFT) |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
LQ035Q7DB02 Mechanical Features
| Dot Resolution | 240(RGB)×320 (QVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 113 PPI |
| Aspect Ratio | 3:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch | 0.2235×0.2235 mm (H×V) |
| Weight | 50g (Typ.) |
| Surface | Hard coating (3H) |
| Active Area | 53.64×71.52 mm (H×V) |
| Bezel Area | 57.4×75.2 mm (H×V) |
| Outline Dimension | 65×85 mm (H×V) |
| Outline Depth | 4.5±0.3 mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Embeded (4-wire Resistive) |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.
(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.
LQ035Q7DB02 Optical Features
| Display Mode | TN, Normally White, Transflective |
|---|---|
| Brightness | 50 cd/m² (Typ.) |
| Contrast Ratio | 8:1 (Typ.) (Reflective) |
| Display Color | 262K (6-bit) |
| Response Time | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle | 40/40/40/50 (Typ.)(CR≥2) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.320; Wy:0.340 |
| Reflectance Ratio | 7/11% (Min./Typ.) |
| Sunlight Readable | Y |
The reasons you choose us
1).Mor e competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the h
ard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
LQ035Q7DB02 Electronics Feature
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (U/D, L/R) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM12S40 | SHARP | 12.1" | 800×600 |
| LM80C24 | SHARP | 11.3" | 800×600 |
| LM64C391 | SHARP | 11.3" | 640×480 |
| LM11X30 | SHARP | 11.1" | 1024×600 |
| LM10V33 | SHARP | 10.4" | 640×480 |
| LM9V38 | SHARP | 9.4" | 640×480 |
| LM32008F | SHARP | 4.7" | 320×240 |
| LM320081 | SHARP | 4.7" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information

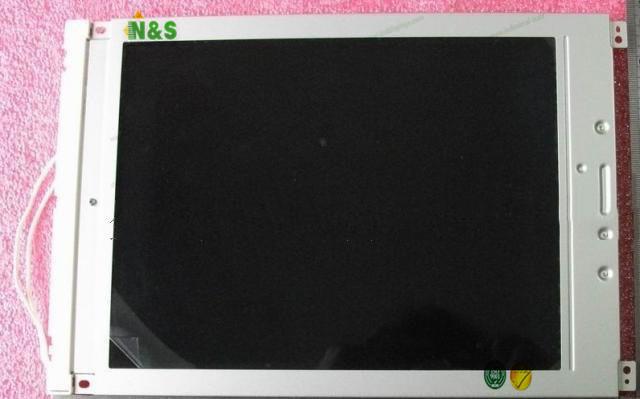

LQ035Q7DB02 pictures
