LQ065T9BR53 Sharp LCD Panel A-Si TFT-LCD 6.5 Inch RGB Vertical Stripe Pixel
New and original LQ065T9BR53 SHARP a-Si TFT-LCD ,6.5 inch, 400×240 for Industrial Application
LQ065T9BR53 Basic Information
| Panel Model | LQ065T9BR53 |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,6.5 inch, 400×240 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature |
-30 ~ 85 °C |
| Vibration Resistance | 2.9G (28.4 m/s²) |
| Remarks | NTSC(M) / PAL(B·G), Self heating backlight, Reflectivity 10% (Typ.) |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
LQ065T9BR53 Mechanical Features
| Dot Resolution | 400(RGB)×240 (WQVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 72 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1195×0.3305 mm (H×V) |
| Pixel Pitch | 0.3585×0.3305 mm (H×V) |
| Weight | 205g (Typ.) |
| Surface | Antiglare |
| Active Area | 143.4×79.326 mm (H×V) |
| Outline Dimension | 155×89.2 mm (H×V) |
| Outline Depth | 12.5 (Typ.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Quality Control:
- Visual Inspection
Make sure No damage, No Scratches, No dusty, No light leakage.
- Function Inspection
Make sure all functions are 100% tested ok
LQ065T9BR53 Optical Features
| Display Mode | TN, Normally White, Transflective |
|---|---|
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 7:1 (Typ.) (Reflective) |
| Display Color | Full color () |
| Response Time | 15/35 (Typ.)(Tr/Td) |
| Viewing Angle | 50/50/40/50 (Typ.)(CR≥5) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| Reflectance Ratio | 10% (Typ.) |
| Sunlight Readable | Y |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
LQ065T9BR53 Electronics Feature
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (U/D, L/R) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM12S02 | SHARP | 12.1" | 800×600 |
| LM6Q40A | SHARP | 5.5" | 320×240 |
| LM6Q40 | SHARP | 5.5" | 320×240 |
| LM6Q35 | SHARP | 5.5" | 320×240 |
| LM6Q33 | SHARP | 5.5" | 320×240 |
| LM6Q32 | SHARP | 5.5" | 320×240 |
| LM6Q31 | SHARP | 5.5" | 320×240 |
| LM5Q32R | SHARP | 5.0" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information

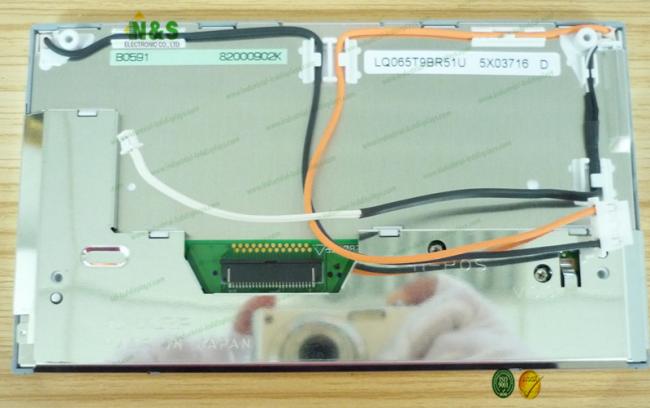

LQ065T9BR53 pictures
