6.5 Inch 400×240 Sharp Lcd Display Panels , Sharp Replacement Lcd Panel 400×240
LQ065T9BR51 SHARP a-Si TFT-LCD ,6.5 inch, 400×240 for Medical Imaging
LQ065T9BR51 Basic Information
| Panel Model | LQ065T9BR51 |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,6.5 inch, 400×240 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -30 ~ 85 °C |
| Vibration Resistance | 2.9G (28.4 m/s²) |
| Remarks | NTSC(M) / PAL(B·G), Self heating backlight |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
LQ065T9BR51 Mechanical Features
| Dot Resolution | 400(RGB)×240 (WQVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 72 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1195×0.3305 mm (H×V) |
| Pixel Pitch | 0.3585×0.3305 mm (H×V) |
| Weight | 190±10g |
| Surface | Antiglare |
| Active Area | 143.4×79.326 mm (H×V) |
| Outline Dimension | 155×89.2 mm (H×V) |
| Outline Depth | 12.5 (Typ.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
3Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
4long-term partner:
* Products are sold to more than 20 countries.
5Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
LQ065T9BR51 Optical Features
| Display Mode | TN, Normally White, Transflective |
|---|---|
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 7:1 (Typ.) (Reflective) |
| Display Color | Full color () |
| Response Time | 15/35 (Typ.)(Tr/Td) |
| Viewing Angle | 50/50/40/50 (Typ.)(CR≥5) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| Reflectance Ratio | 10% (Typ.) |
| Sunlight Readable | Y |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
LQ065T9BR51 Electronics Feature
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (U/D, L/R) |
| Time Controller (T-CON) | Embedded T-CON |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM5Q31 | SHARP | 5.0" | 320×240 |
| LM32019P | SHARP | 5.7" | 320×240 |
| LM32P101 | SHARP | 4.7" | 320×240 |
| LM32P18 | SHARP | 4.7" | 320×240 |
| LM32C04P | SHARP | 5.5" | 320×240 |
| LM32P10 | SHARP | 4.7" | 320×240 |
| LM32010P | SHARP | 4.7" | 320×240 |
| LM32K101 | SHARP | 4.7" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information

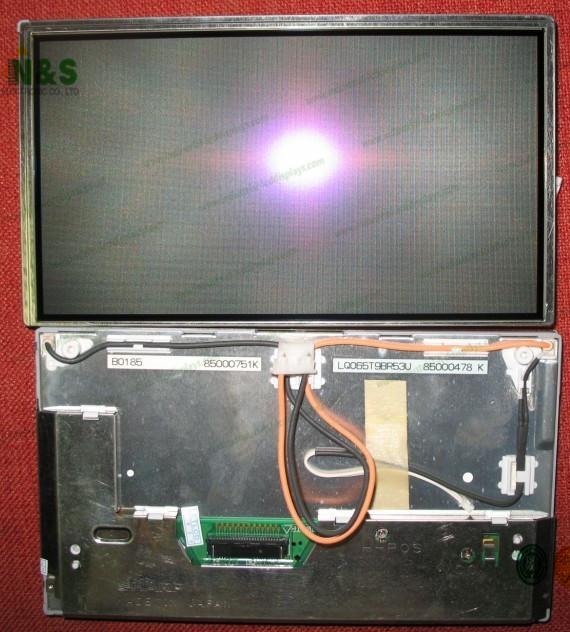

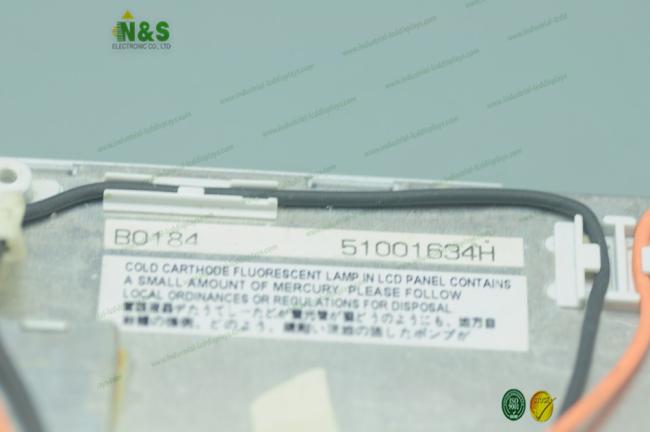

LQ065T9BR51pictures
