New / Original KOE LCD Display TX09D70VM1CEA HITACHI A-Si TFT-LCD 240×320
New and original TX09D70VM1CEA HITACHI a-Si TFT-LCD ,3.5 inch, 240×320 for 60Hz
TX09D70VM1CEA Basic Information
| Panel Model | TX09D70VM1CEA |
|---|---|
| Panel Brand | HITACHI |
| Descrition | a-Si TFT-LCD ,3.5 inch, 240×320 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Remarks | 3 in 1 FPC |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
TX09D70VM1CEA Mechanical Features
| Dot Resolution | 240(RGB)×320 (QVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 113 PPI |
| Aspect Ratio | 3:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch | 0.2235×0.2235 mm (H×V) |
| Weight | 44g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 53.64×71.52 mm (H×V) |
| Bezel Area | 57.64×75.52 mm (H×V) |
| Outline Dimension | 64×86 mm (H×V) |
| Outline Depth | 4.0/5.5 (Typ./Max.) mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Embeded (4-wire Resistive) |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
TX09D70VM1CEA Optical Features
| Display Mode | TN, Normally White, TMR |
|---|---|
| Brightness | 320 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/80/60 (Typ.)(CR≥5) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.320; Wy:0.340 |
| White Variation | 1.43 (Max.)(5 points) |
| Sunlight Readable | Y |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
TX09D70VM1CEA Electronics Feature
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Time Controller (T-CON) | Need external T-CON |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| SP14N001 | KOE | 5.1" | 240×128 |
| SX16H006 | KOE | 6.2" | 640×240 |
| SX14Q009-ZZA | KOE | 5.7" | 320×240 |
| SX14Q009 | KOE | 5.7" | 320×240 |
| SP14N003 | KOE | 5.1" | 240×128 |
| SP14Q002-T | KOE | 5.7" | 320×240 |
| SP14Q002-C2A | KOE | 5.7" | 320×240 |
| SP14Q002-C1A | KOE | 5.7" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information

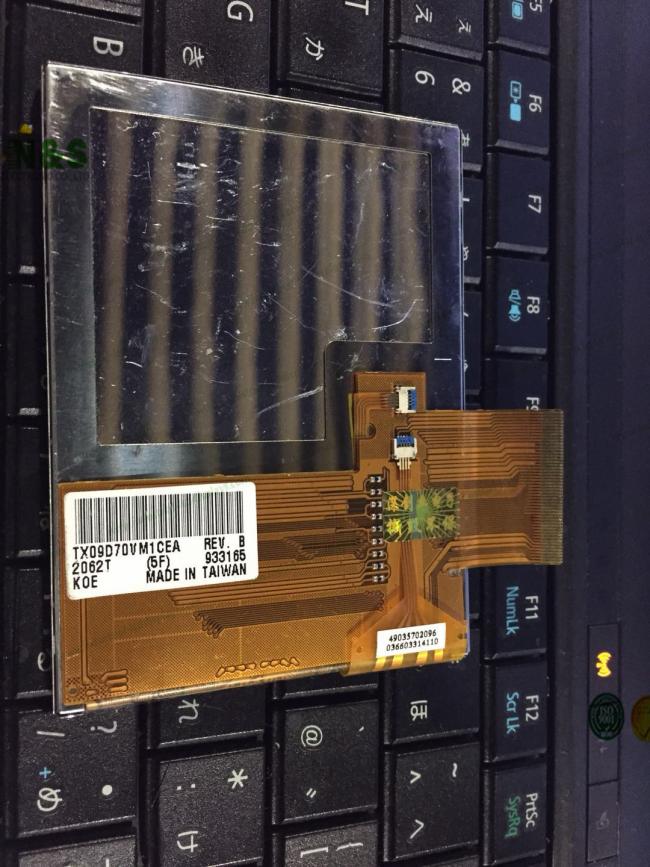

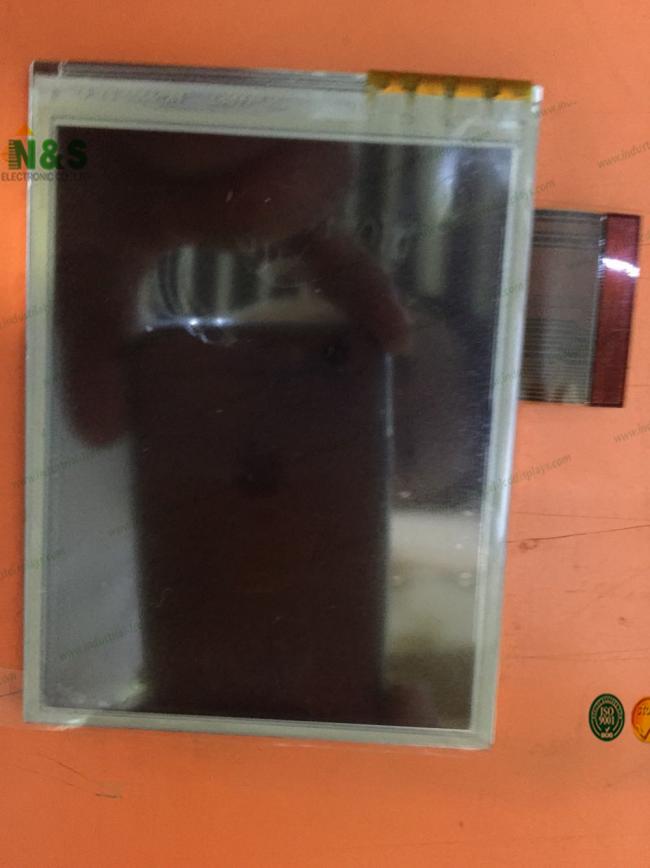

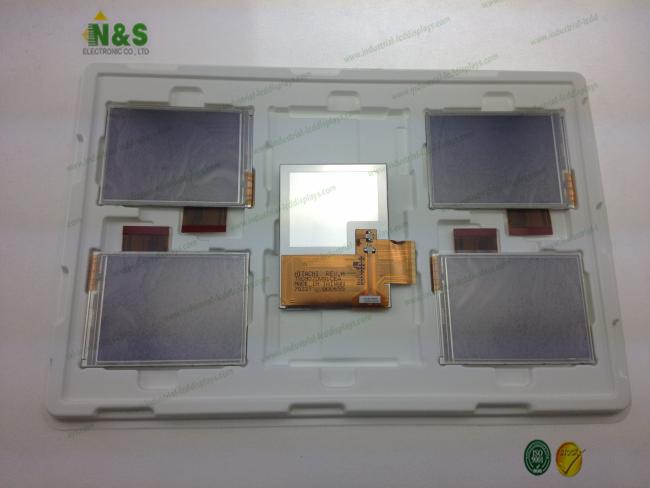

TX09D70VM1CEA pictures
