New / Original Sharp LCD Panel LQ050W1LC1B A-Si TFT-LCD 5.0 Inch 1024×600 For Medical Imaging
New and original LQ050W1LC1B SHARP a-Si TFT-LCD ,5.0 inch, 1024×600 for Medical Imaging
LQ050W1LC1B Basic Information
| Panel Model | LQ050W1LC1B |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,5.0 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 60 °C |
| Storage Temperature | -25 ~ 70 °C |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
LQ050W1LC1B Mechanical Features
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 238 PPI |
| Aspect Ratio | 17:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.035×0.106 mm (H×V) |
| Pixel Pitch | 0.106×0.106 mm (H×V) |
| Weight | 52/57g (Typ./Max.) |
| Surface | Glare (Haze 0%), Hard coating (2H) |
| Active Area | 109.1×63.9 mm (H×V) |
| Bezel Area | 111.5×66.3 mm (H×V) |
| Outline Dimension | 119×76.3 mm (H×V) |
| Outline Depth | 2.7/4.8 (Typ./Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
LQ050W1LC1B Optical Features
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 430 cd/m² (Typ.) |
| Contrast Ratio | 450 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.10/1.30 (Typ./Max.)(5 points) |
| Sunlight Readable | N |
We can do for You:
- Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
LQ050W1LC1B Electronics Feature
| Reverse Scan | No |
|---|
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LK400D3HA3K | SHARP | 40" | 1920×1080 |
| LK400D3HC75 | SHARP | 40" | 1920×1080 |
| JE400D3HC2N | SHARP | 40" | 1920×1080 |
| LK400D3HC84M | SHARP | 40" | 1920×1080 |
| LS024Q8UX99P | SHARP | 2.4" | 240×320 |
| LK315T3HB00X | SHARP | 31.5" | 1366×768 |
| LK200T3HA04W | SHARP | 20.0" | 1366×768 |
| LK315D3HA4M | SHARP | 31.5" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information

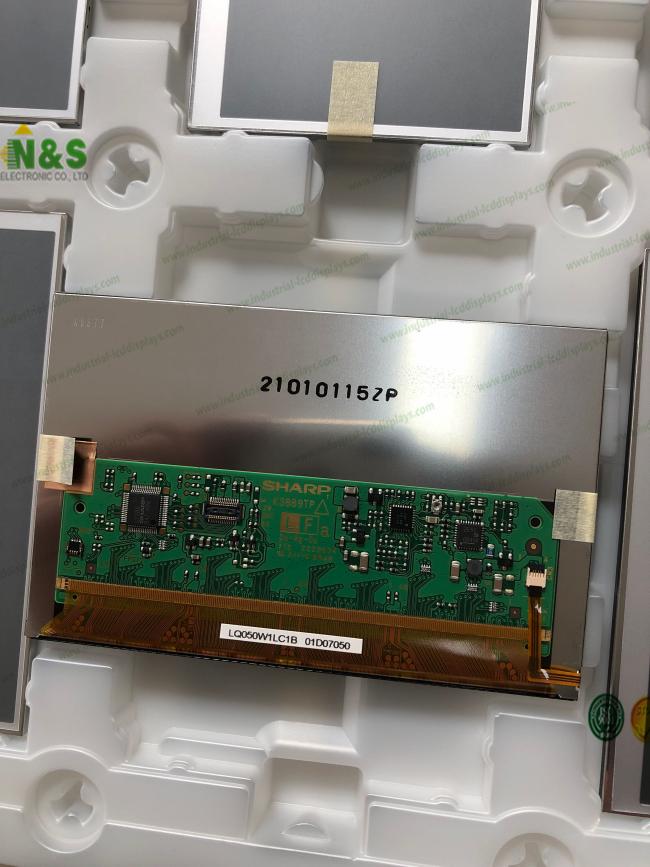

LQ050W1LC1B pictures
