60Hz Frame Rate Auo Tft Lcd G238HAN01.1 AUO 23.8 Inch LCM 1920×1080 Display
Price:
Negotiable
MOQ:
1
Delivery Time:
1-3 Working Days
Brand:
AUO
Product Description

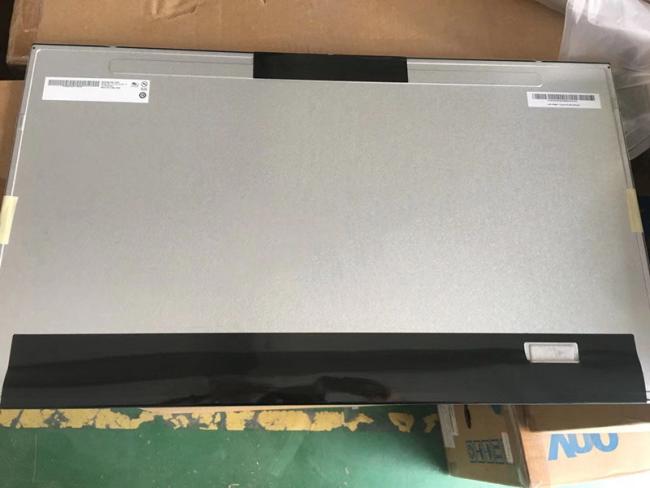

G238HAN01.1 AUO 23.8 inch LCM 1920×1080 LCD display
AUO G238HAN01.1 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 14 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | AHVA, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Gamut | Display Colors | White Coordinate |
| 72% NTSC (CIE1931) | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) | ||
AUO G238HAN01.1 Mechanical Features
| Panel Size : | 23.8" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1920(RGB)×1080 [FHD] | RGB Vertical Stripe | 0.2745×0.2745 | 0.0915×0.2745 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 527.04(H) × 296.46(V) | 530.2(H) × 299.6(V) | 543(H) × 317.4(V) | 8.4/11.65 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | - | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 2.30Kgs (Typ.) | - | Antiglare, Hard coating (3H) | ||
AUO G238HAN01.1 Electronics Features
| Reverse Scan : | No |
|---|---|
| Vertical Frequency : | 60Hz |
| Power Consumption : | 19.3W (Typ.) |
We also have other industrial LCD panels, pls contact to us for the further information
