60Hz AUO LCD Panel G320ZAN01.1 32 Inch LCM 3840×2160 Without Touch Panel
Price:
Negotiable
MOQ:
1
Delivery Time:
1-3 Working Days
Brand:
AUO
Product Description

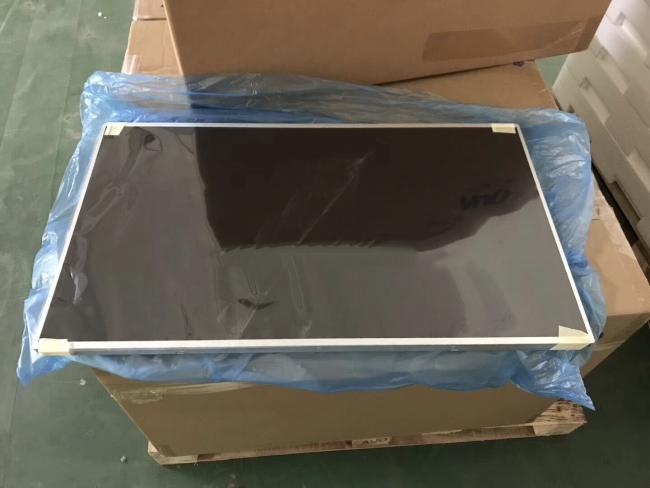

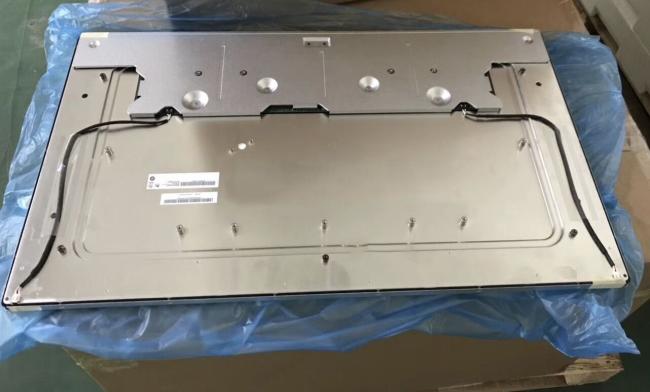

G320ZAN01.1 AUO 32 inch LCM 3840×2160 LCD display
AUO G320ZAN01.1 Optical Details
| Basic Information : | Luminance | 700 cd/m² (Typ.) | Contrast Ratio | 1350:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 8/10 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.07B (8-bit + Hi-FRC) |
| Gamut | 100% Adobe RGB | White Variation | 1.28 (Max.)(9 points) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
AUO G320ZAN01.1 Mechanical Details
| Pixel Features : | Number of Pixel | 3840(RGB)×2160, UHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.0615×0.1845 mm | Pixel Pitch(W×H) | 0.1845×0.1845 mm | |
| Physical Size : | Active Viewing | 708.48(W)×398.52(H) mm | Overall Dim. | 727.3(W)×424.5(H) mm |
| Bezel Opening | 714.48(W)×404.52(H) mm | Overall Depth | 20.48±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:09 | Shape Style | - | |
| Fixation : | Rear mounting holes | |||
| Other Detail : | Mass | 4.63±0.46Kgs | Surface | Antiglare |
AUO G320ZAN01.1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
We also have other industrial LCD panels, pls contact to us for the further information
