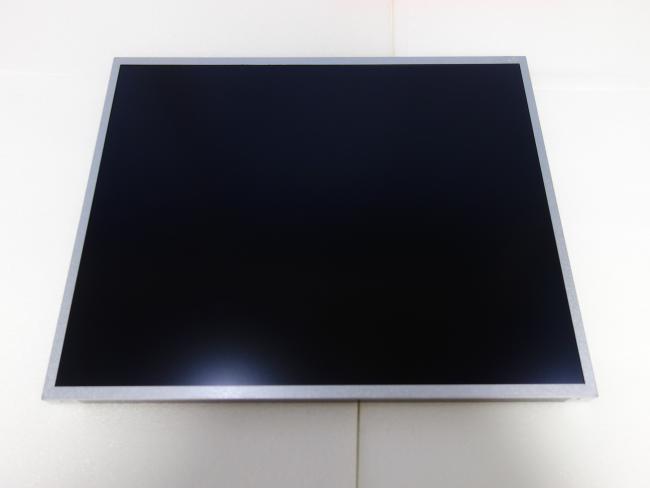

High Brightness Industrial Lcd Screen 19'' 1280×1024 TFT LCD G190EAN01.5 For Outdoor
Price:
Negotiable
MOQ:
1
Delivery Time:
1-3 Working Days
Brand:
AUO
Product Description
1. General Description
This specification applies to the Color Active Matrix Liquid Crystal Display G190EAN01.5 composed of a TFT-LCD display, a driver and power supply circuit, and a LED backlight system. The screen format is intended to support the SXGA (1280(H) x 1024(V)) screen and 16.7M colors. All input signals ar
2- channel LVDS interface compatible. LED driving board for backlight unit is included in G190EAN01.5.
2.Display Characteristics
| Items | Unit | Specifications |
| Screen Diagonal | [inch] | 19.0" |
| Active Area | [mm] | 376.32 (H) x 301.06 (V) |
| Resolution | 1280(x3) x 1024 | |
| Pixel Pitch | [mm] | 0.294 (per one triad) x 0.294 |
| Pixel Arrangement | R.G.B. Vertical Stripe | |
| Display Mode | Normally Black, AHVA | |
| Nominal Input Voltage VDD | [Volt] | +5.0 V |
| Power Consumption | [Watt] | Logic: max. 4 W@ white pattern BL power: max. 25.2 W |
| Weight | [Grams] | 1700 +/- 150g |
| Physical Size | [mm] | 396 (H) x 324 (V) x 15.3 (D) (Typ) |
| Electrical Interface | LVDS | |
| Surface Treatment | Anti-Glare treatment | |
| Support Color | 16.7M colors (8bit) | |
Temperature Range Operating Storage (Non-Operating) |
[oC] [oC] |
0 to +50 -20 to +60 |
| RoHS Compliance | Yes |
3.Optical Characteristics
| Item | Unit | Conditions | Min. | Typ. | Max. | Note | |
| White Luminance | cd/m2 | Center point (at LED= 55mA) | 560 | 700 | --- | 1 | |
| Uniformity | % | 9 points | 80 | --- | --- | 2,3 | |
| Contrast Ratio | -- | 600 | 1000 | 4 | |||
Response Time | msec | Rising | - | 13 | 18 | | |
| Falling | - | 12 | 17 | ||||
| Rising + Falling | - | 25 | 35 | ||||
Viewing Angle | degree | Horizontal CR >= 10 | (Right) | 85 | 89 | --- | |
| (Left) | 85 | 89 | |||||
| Vertical CR >= 10 | (Upper) | 85 | 89 | ||||
| (Lower) | 85 | 89 | |||||
Color / Chromaticity Coordinates (CIE 1931) | -- | Red x | 0.621 | 0.651 | 0.681 | ||
| Red y | 0.313 | 0.343 | 0.373 | ||||
| Green x | 0.272 | 0.302 | 0.332 | ||||
| Green y | 0.581 | 0.611 | 0.641 | ||||
| Blue x | 0.125 | 0.155 | 0.185 | ||||
| Blue y | 0.045 | 0.075 | 0.105 | ||||
| White x | 0.283 | 0.313 | 0.343 | ||||
| White y | 0.299 | 0.329 | 0.359 | ||||
| Color Gamut | % | --- | 72% | --- | |||
4.Service
