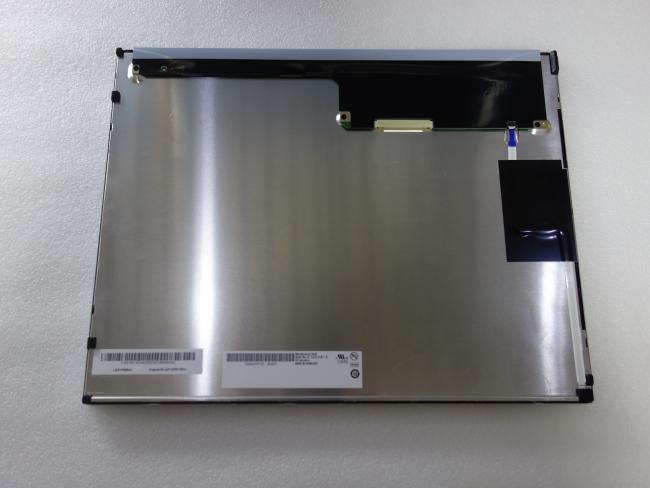

300cd/m² Anti Glare Lcd Screen , Auo Touch Panel 15 Inch 1024×768 G150XVN01.0
Price:
Negotiable
MOQ:
1
Delivery Time:
1-3 Working Days
Brand:
AUO
Product Description
1.AUO G150XVN01.0 Mechanical Details
| Pixel Features : | Resolution | 1024(RGB)×768, XGA | Dot Pitch(mm) | 0.099×0.297 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.297×0.297 (H×V) | |
| Mechanical Size : | Active Area(mm) | 304.128(H) × 228.096(V) | Bezel Area(mm) | 307.2(H) × 231.1(V) |
| Outline Dim.(mm) | 326.5(H) × 253.5(V) | Depth(mm) | 10.1 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 950g (Max.) | Treatment | Antiglare, Hard coating (3H) |
2.AUO G150XVN01.0 Optical Details
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 1500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | MVA, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 20/15 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.300; Y:0.325 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 7274K | White Uniformity | 1.33 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 92% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 73% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3.Service
4.FAQ
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 2-3 working days after receipt of payment.
Q4:Do you accept sample order?
A:Yes,sample order is welcome.
Q5:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
