Anti Glare Hard Coating Auo Touch Panel 1024×600 3H TFT-LCD 10.1 Inch G101STN01.2
Price:
Negotiable
MOQ:
1
Delivery Time:
1-3 Working Days
Brand:
AUO
Product Description
1.General Description

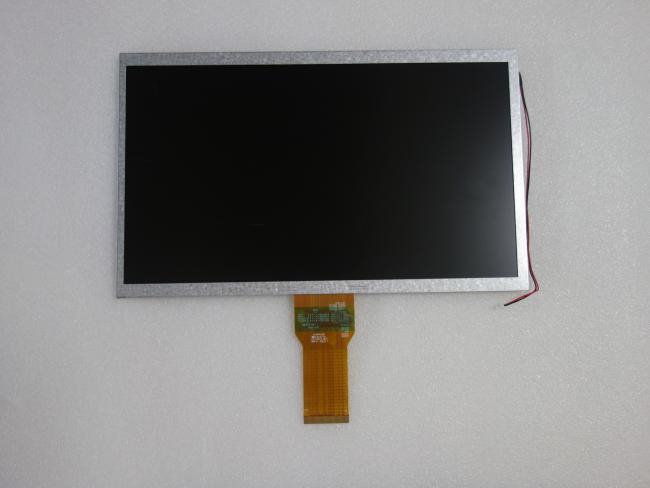

This specification applies to the Color Active Matrix Liquid Crystal Display G101STN01.2 composed of a TFT-LCD display, a driver and power supply circuit, and a LED backlight.
The screen format is intended to support Wide SVGA (1024(H) x 600(V)) screen and 262k/16.7M colors (RGB 18/24-bits).
And PCBA is not embedded in G101STN01.2. All input signals are RGB interface.
G101STN01.2 designed with wide viewing angle; wide temperature and long life LED backlight (30k hrs) is well suited for industial applications.
G101STN01.2 is a RoHS product.
2.AUO G101STN01.2 Optical Details
| Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 7/9 (Typ.)(Tr/Td) ms |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.25 (Max.)(5 points) |
| NTSC Ratio | 46% | sRGB | 64% coverage |
| Adobe RGB | 48% coverage | DCI-P3 | 47% coverage |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3.Service
4.FAQ
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.
Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q3:How long is the lead time?
A:The lead time is about 2-3 working days after receipt of payment.
Q4:Do you accept sample order?
A:Yes,sample order is welcome.
Q5:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
