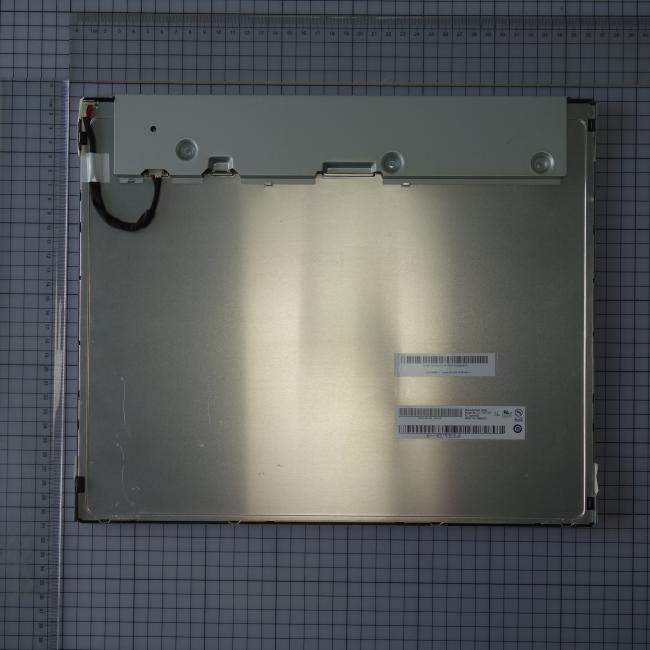

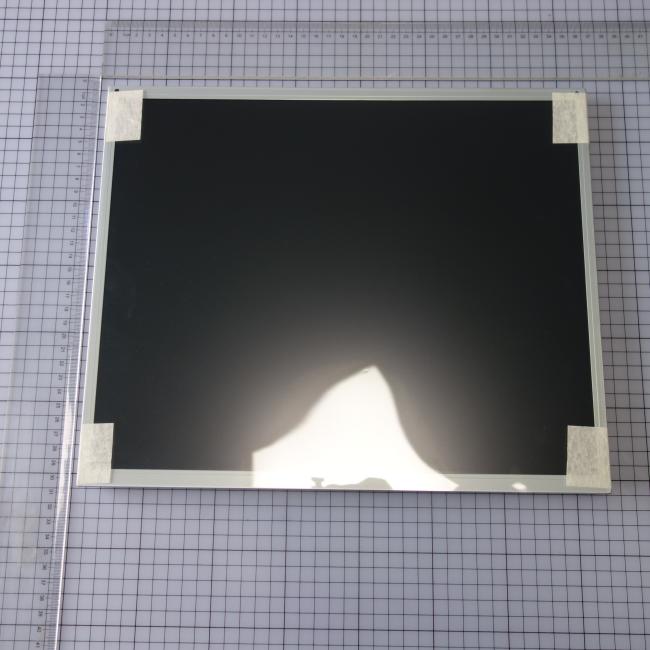

17" 1280×1024 G170EG01 V1 LCM AUO LCD Display Panel
17" 1280×1024 G170EG01 V1 LCM AUO LCD Display Panel
Description Of AUO LCD Panel
G170EG01 V1 (Alias: G170EG01 V.1) is a 17.0 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. On the basis of latest version datasheet Ver1.5 which was released out on 1 15 2014, G170EG01 V1 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.
Feature Of AUO LCD Panel
| Model | G170EG01 V1 |
| Type | LCM a-Si TFT-LCD |
| Screen Size | 17.0" |
| Operating Temp. | -30 ~~ 85 °C |
| Resolution | 1280(RGB)×1024, SXGA |
| Active Area(mm) | 337.92(H) × 270.336(V) |
| Outline Dim.(mm) | 358.5(H) × 296.5(V) |
| Depth(mm) | 18.0 (Max.) |
| Weight | 1.35Kgs (Typ.) |
| Color Temperature | 6485K |
AUO G170EG01 V1 Interface Details
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 1.05/1.16A (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 5.25/5.8W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position |  |
Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration  |
| JAE | FI-XB30SSL-HF15 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-190A | |
AUO G170EG01 V1 Optical Details
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 20/10 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points)  |
|
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 93% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| H498ATN01.1 | AUO | 5.0" |
| H466TAN01.1 | AUO | 4.7" |
| H446TAN01.1 | AUO | 4.5" |
| A070STN01.2 | AUO | 7.0" |
| M215HTN01.1 CELL | AUO | 21.5" |
| M195RTN01.0 CELL | AUO | 19.5" |
| H572TVN01.2 | AUO | 5.7" |
| H402VVN01.0 | AUO | 4.0" |
| M240HTN01.2 CELL | AUO | 24.0" |
| A050VVN01.3 | AUO | 5.0" |
| M195RTN01.1 CELL | AUO | 19.5" |
| H430VAN01.0 | AUO | 4.3" |
| T390HVN04.0 CELL | AUO | 39" |
Application Of AUO LCD Panel G170EG01 V1
1. broadcasting securlty
2. factory automation marine
3. MFP
4. banking retail self-service
Advantage Of AUO LCD Panel
1. We are professional LCD module manufacture in China with precise and advanced equipments.
2. High quality Control with CE,ROHS and so on approved.
3. More than 10 years of industry experience and involved main markets all over the world
4. Dedicated and professional sales team will offer you 24 hours online and immediate service
5. OEM and ODM support,12 months warranty for all of our products
6. Our mission is to help our customers achieve success, then fulfill our both dreams
>> Quality ensurance
100% AUO original and brand new!
warranty :12 months !You can enjoy the real panels directly from AUO factory;
>> Packing ensurance
all the products are in original package from original factory directly, and all the packages have labels andserial number!
>> Delivery ensurance
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you !
Please let us know your requirements on panels:
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
