Description Of AUO LCD Panel

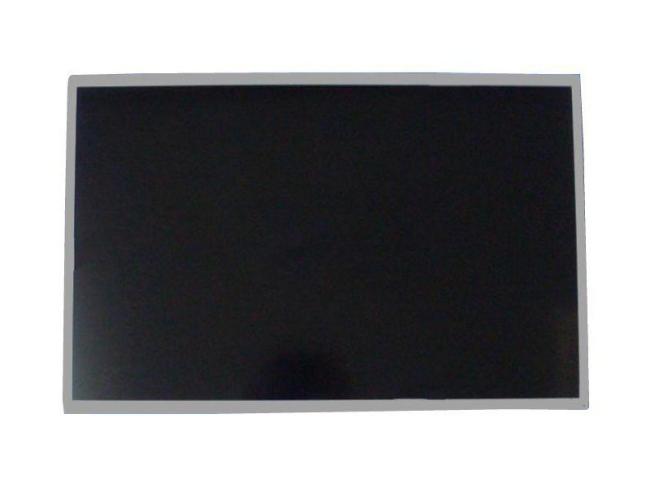

AU Optronics Corp. (hereafter called AUO) G220SW01 V0 (Alias: G220SW01 V.0) is a 22.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated CCFL lighting system, without backlight driver, without touch screen.
AUO G220SW01 V0 Mechanical Details
| Pixel Features : | Pixel Format | 1680(RGB)×1050 [WSXGA+] | Dot Pitch | 0.094×0.282 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.282×0.282 mm (H×V) [90PPI] | |
| Mechanical Size : | Display Area | 473.76×296.1 mm (H×V) | Bezel Area | 477.7×300.1 mm (H×V) |
| Outline Dim. | 493.7×320.1 mm (H×V) | Outline Depth | 18.7 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:10 (H:V) | Shape Style | - | |
| Holes & Brackets : | Side mounting holes (4-M3) | |||
| Other Features : | Weight | 2.95Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
AUO G220SW01 V0 Optical Details
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 2000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | MVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 15/5 (Typ.)(Tr/Td); 8 (Typ)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points)  |
|
| 1931 Color Gamlt : | NTSC Ratio | 68% | sRGB | 90% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 70% coverage | |
| Rec.2020 | 51% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
