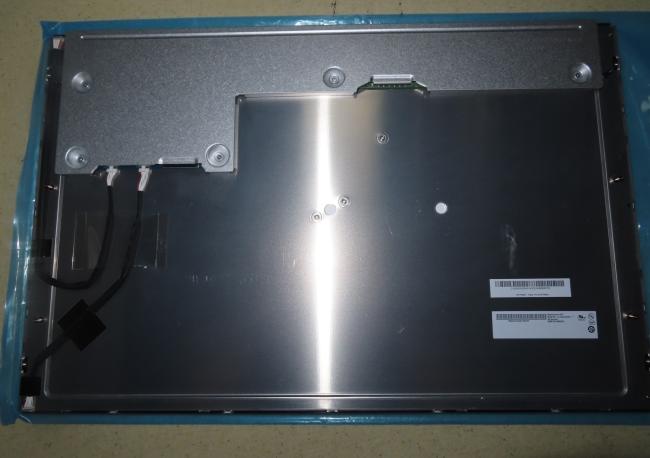

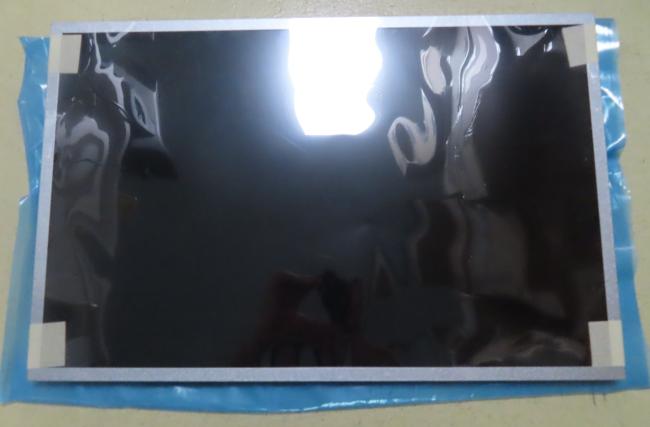

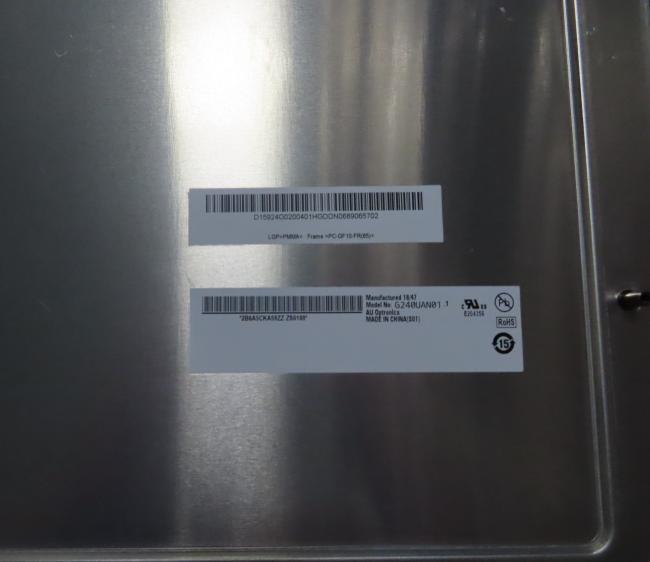

1920×1200 G240UAN01.1 24inch Sunlight Readable LCD Panel

1920×1200 G240UAN01.1 24inch Sunlight Readable LCD Panel

Description Of AUO LCD Panel

AUOptronics Corp. (hereafter called AUO) G240UAN01.1 is a 24.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. Based on datasheet with version of Ver0.0 which was released out on 7 17 2017, G240UAN01.1 supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 518.4(W)×324(H) mm, outline size of 546.4(W)×352(H)×18.6(D) mm, viewing area size of 521.4(W)×327.0(H) mm, with surface treament of Antiglare, net weight of 2.50Kgs (Typ.).

Feature Of AUO LCD Panel

1) Type:a-Si TFT-LCD , LCM

2) Operating Temp.:0 ~ 40 °C

3) Storage Temp.:-20 ~ 50 °C

4) Resolution:1920(RGB)×1200, WUXGA

5) Active Area(mm):518.4(H) × 324(V)

6) Depth(mm):18.6 (Max.)

7) Aspect Ratio:16:10 (H:V)

8) Bezel Area(mm):521.4(H) × 327.0(V)

9) Luminance(cd/m²):750 (Typ.)

Signal Electrical :	Voltage Supply 12.0V (Typ.) Current Supply 0.4/0.6A (Typ./Max.) Consumption 4.8/7.2W (Typ./Max.)
Signal Type :	LVDS (2 ch, 10-bit) Logic Voltage -
Interface Features :	Position Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration JAE FI-RE51S-HF-R1500 0.5 mm 51 pins 1 pcs



AUO G240UAN01.1 Optical Details

Basic Information :	Luminance(cd/m²) 750 (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Display Mode AHVA, Normally Black, Transmissive Best View on Symmetry Response(ms) 14 (Typ.)(Tr+Td)
Color Performance :	White Coordinate Wx:0.313; Wy:0.329 Display Colors 1.07B (8-bit + Hi-FRC) Color Temperature 6485K White Uniformity 1.18/1.25 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 88% sRGB 100% coverage Adobe RGB 80% coverage DCI-P3 90% coverage Rec.2020 65% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility Sunlight Readable Transmissivity -



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information

M195RTN01.0 CELL	AUO	19.5"
H572TVN01.2	AUO	5.7"
H402VVN01.0	AUO	4.0"
M240HTN01.2 CELL	AUO	24.0"
A050VVN01.3	AUO	5.0"
M195RTN01.1 CELL	AUO	19.5"
H430VAN01.0	AUO	4.3"
T390HVN04.0 CELL	AUO	39"



Application Of AUO LCD Panel G240UAN01.1

1.  Notebook

2.  Automotive

3.  Industrial PC

4. Electronic weight scale
