TFT Type Chimei LCD Panel 8 Inch Small Color LCD Display LS080HT111
TFT Type Chimei LCD Panel 8 Inch Small Color LCD Display LS080HT111
Quick Details:
Place of Origin: Taiwan, Japan.
Type: TFT
Outline Dimemsions: 182*141 mm
Backlight Type: White LED
Brand Name: Chimei
Display Size: 8.0 inch TFT
Brightness: 250 cd/m2 (Typ.)
Contrast Ratio: 500:1 (Typ.)
Model:
8.0 Inch Chimei LS080HT111
800*600 Resolution
wide viewing angle
fast response time
wide operating temperature
reversible scan function
Features:
• Wide viewing angle
• Fast response time
• Wide operating temperature
• Reversible scan function
• 6/8 bit convertible
• High color gamut (NTSC: 72%)
Application:
• Automotive display
• Industry application
Essential Specification:
| Items | Speciation |
| Screen Diagonal(inch) | 10.4" |
| resolution | 640xR.G.B.x480 |
| Active Area | 211.2x158.4 |
| pixel Pitch(mm) | 0.33x0.33 |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| brightness | 450nits |
| backlight | CCFL |
| viewing angle | 88/88/88/88 |
| Display Mode | TN, Normally White |
| Nominal Input Voltage VDD(volt) | 3.3 typ. |
| Weight(gram) | 470 |
| Physical Size(mm) | 225.5(W) ×176.3(H) ×9.5(D) mm |
| Electrical Interface | TTL |
| Surface Treatment | Anti-Glare, Hardness 3H |
| Color Depth | 262,144 |
| The most suitable view angle | 12’clock |
| RoHS Compliance | RoHS Compliance |

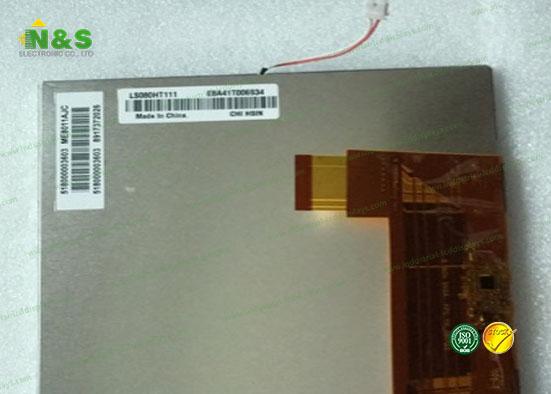

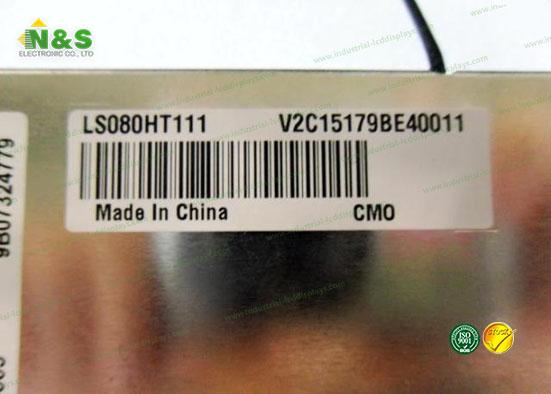

Details Picture for 8.0 Inch Chimei LS080HT111 LCD Display:
