High Tensile Steel Wire Mesh | Rockfall drapery Mesh system | 3.0mm wire | 65mm hole | High Zinc Coating HESLY Chinese

The hesly chainlink wire mesh, featuring 2 mm, 3 mm or 4 mm wire made from high-tensile steel, can be used to stabilize virtually any kind of slope, whether it consists of rock or loose soil. Coupled with steel spike plates, the hesly chain wire mesh offers an attractive nail grid and, therefore, maximum efficiency during installation.

High Tensile Steel Wire Mesh	Clips


Benefits of HESLY Chain Wire Mesh

• High Tensile Steel Wire -- the wire has a tensile strength of more than 1770 N/mm² limiting elongation and keeping the mesh highly pre-tensioned, providing reliable stability for the slope and minimizing deformations.
• Knotted Ends -- These ensure that maximum stability is retained right up to the border edges, removing the need for overlap and allowing the mesh and netting to be unrolled easily and independently.
• Diamond Mesh Wire Structure -- Our unique mesh shape transfers forces to the nails very efficiently, preventing deformation within the system. The mesh provides the best possible stability for the geological conditions present on your site and can be tightly secured even on irregular terrain.
• Light Weight -- The high-tensile steel wire's outstanding strength-to-weight ratio makes transport and installation easier. Unstable slopes are given long-term stability with minimal visual impact.
• Corrosion Protection -- The corrosion protection of our systems will last for generations. So that our customers will benefit from low maintenance costs. For particularly demanding environments we offer out products in stainless steel.

Specifications - high tensile chain link mesh

Tecco Mesh Sheet - High Tensile Steel Wire Mesh

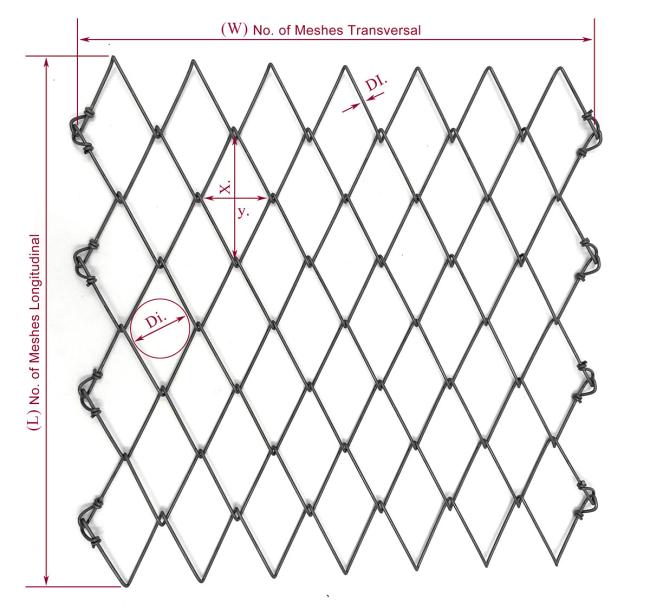

Illustration	Technical Information
	Mesh Shape	Rhombus
	Mesh Size (x*y)	62×95mm±5%
	Mesh Width	48mm±5%
	Roll Width (W)	Custom-made
	Roll Length (L)	Custom-made
	Wire Diameter	DI=2.0mm
	Tensile Strength	1770N/mm2
	Material	95% AL + 5% Zn
	Zinc Coating	120g/m2

Reference Photos

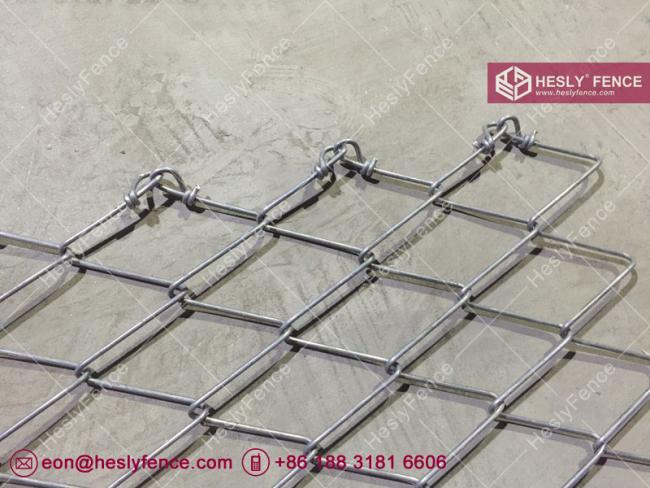

High Tensile Steel Wire Mesh Drapey	Chain Wire Mesh For Slope Protection
Passive Solft Netting System	Passive Rockfall Barrier System

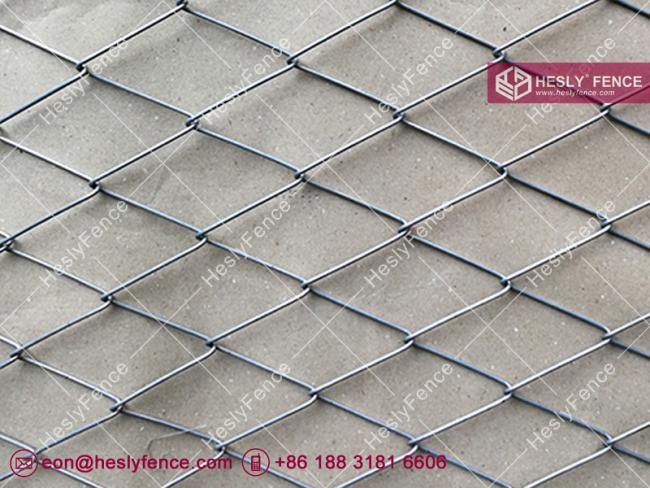

High Tensile Chain Wire Mesh	Steel Woven Mesh

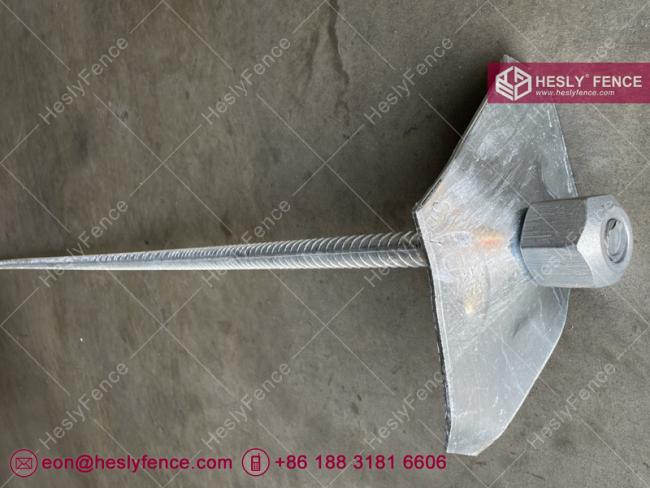

Steel Bar Anchors	Slope Protection Netting Drapery
