Bastion Barrier Blast Wall for Army Defence | Gabion Barrier lined Heavy Duty Geotextile

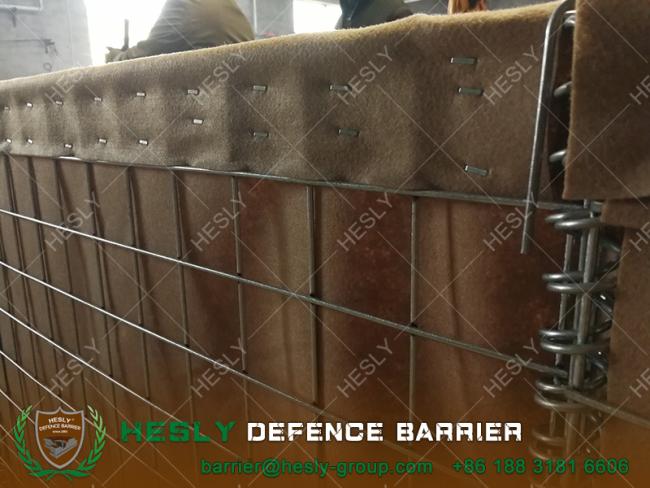

The Bastion Barrier unit is a multi-cellular barrier system manufactured from welded Hot-dipped galvanised steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.

All HESLY barriers are pre-assembled and delivered palletized with joining pins, to enable the connection of individual units, which can then be filled with available material using minimal manpower and commonly available equipment.
Protection is afforded by the fill material of the structure as a consequence of its mass and physical properties, allied with the proven dynamic properties of Concertainer units.
Whether used as a preventative barrier or to define boundaries, HESLY Gabion Barrier units have been employed to safeguard personnel, vehicles, equipment, facilities and other critical assets in a variety of military, peacekeeping, humanitarian and civilian operations.

Defence of HESLY Gabion barriers

The HESLY Bastion Barriers has been fortified by our defensive barriers and our work with the military. From a simple perimeter wall to a complex base infrastructure, HeslyBarrier products provide rapid expeditionary protection to personnel, equipment and critical assets in any terrain.

Applications include:

Perimeter security Defensive barriers Equipment revetments Ammunition compounds Personnel bunkers Observation points Guard posts

Ammunition and explosives stores Contraband search areas Highway checkpoints Border crossing checkpoints Protecting existing structures Traffic management Hostile vehicle mitigation



General Specifications

General Specification Sheet - HESLY Defensive Barriers
Model	Height	Width	Length	Structure
MDB-1 5442	1.37m(54")	1.06m(42")	10m(32'9")	5cells+4cells
MDB-2 2424	0.61m(24")	0.61m(24")	1.22m(4')	2cells
MDB-3 3939	1.00m(39")	1.00m(39")	10m(32'9")	5cells+5cells
MDB-4 3960	1.00m(39")	1.52m(60")	10m(32'9")	10cells+10cells
MDB-5 2424	0.61m(24")	0.61m(24")	3.05m(10')	5cells
MDB-6 6624	1.68m(66")	0.61m(24")	3.05m(10')	5cells
HMIL-7 8784	2.21m(87")	2.13m(84")	27.74m(91')	4cellsX2+5cells
MDB-8 5448	1.37m(54")	1.22m(4')	10m(32'9")	5cells+4cells
MDB-9 3930	1.00m(39")	0.76m(30")	9.14m(30')	6cells+6cells
MDB-10 8760	2.21m(87")	1.52m(60")	32.5m(100')	5cellsX6
MDB-11 4812	1.22m(4')	0.30m(12")	1.22m(4')	2cells
MDB-12 8442	2.13m(84")	1.06m(42")	33m(108')	5cellsX6
NOTE: OEM/ODM is available. Barrier dimensions can be custom-made.



Reference Photos - Military Gabion Barriers

Military Defensive Barrier Factory	Gabion Barrier China Exporter

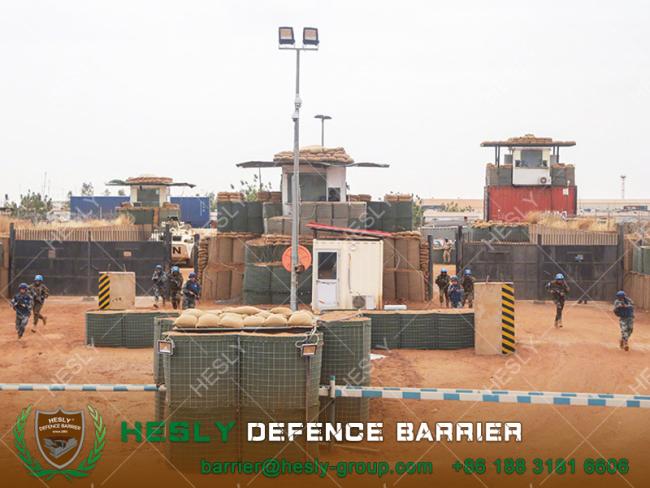

Africa Defence Barrier	UN Peace keeping Gabion Barrier

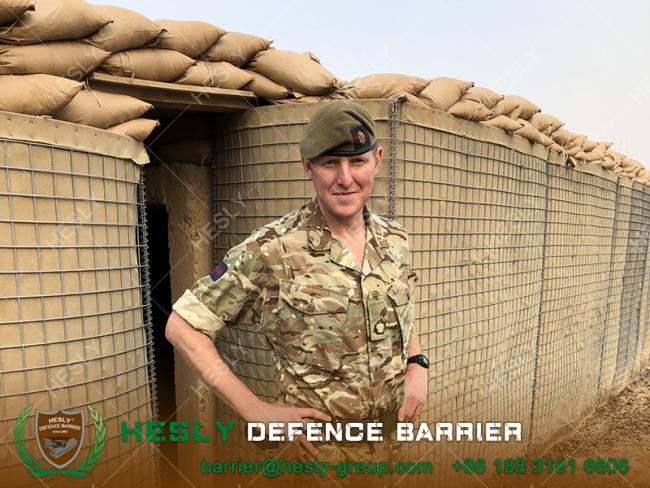

Military Defence Barrier Camp	HESCO Defensive Barrier Bunker

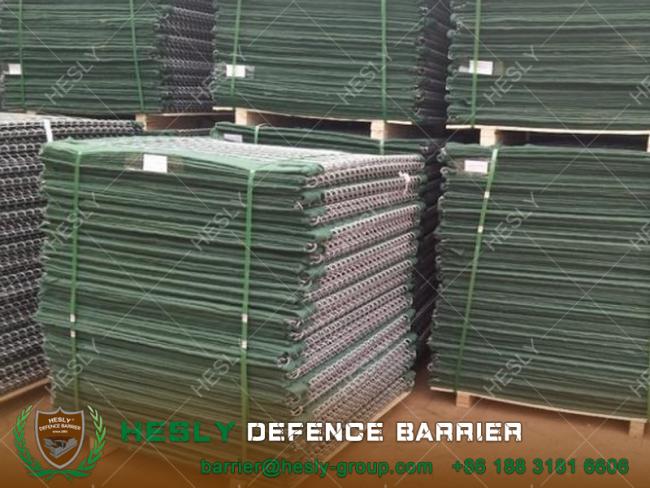

Package and Delivery - Defensive Barrier_CHINA

Military Gabion Barrier China Factory	Defensive Barrier unit HESLY



	HESLY Defence Gabion Barrier Factory
