HESLY DRAG MAT FOR ANY SURFACE – KEEP YOUR SPORTS PITCH IN PROFESSIONAL CONDITION
If steel is so hard, how can it be flexible? Through the use of a continuous pattern of interlocked cold-rolled steel rods and strips.

These are high quality and heavy duty mats, very flexible and weighted to make the task easy. These drag mats have a unique clinch to reduce snags and a rivet free u-bar that holds the mat firmly flat on the surface. There is a heavy nylon rope tied to the bar on the drag mat that can be pulled by a vehicle or if needed by a person. There is no top or bottom, so this makes the mats easy to use and requires very little employee training.
The Mats-of-Steel Heavy Duty Mat offers three times the strength of the Mats-of-Steel Standard Mat. It is perfect for breaking up plugs on golf course fairways, dragging baseball infields or track surfaces, and for soil preparation for lawn seeding. The Mats-of-Steel Standard Mat rolls up like a carpet for easy cleaning and offers a smooth level rugged surface. It is very good for assembly lines around oily machine areas and as an outdoor entrance scraper mat. Each type is available with pull attachments for drag mat work and both feature a galvanized finish for increased rust resistance.
Specification Sheet
Drag Mat
| W×L | Angle Beam | Weight of beam | Size of panel | Weight of pane | Total weight | Roll diameter | |
|
Flat Bar (T×W) |
Round Bar | ||||||
| 3'X4' | 25X25X3mm | 1.0kg | 1.2X10mm | 2.1mm | 8.5kg | 9.5kg | 20cm |
| 3'X5' | 25X25X3mm | 1.0kg | 1.2X10mm | 2.1mm | 10.6kg | 11.6kg | 22cm |
| 4'X4' | 40X40X4mm | 2.9kg | 1.2X10mm | 2.1mm | 11.4kg | 14.3kg | 20cm |
| 4'X5' | 40X40X4mm | 2.9kg | 1.2X10mm | 2.1mm | 14.3kg | 17.2kg | 22cm |
| 4'X6' | 40X40X4mm | 2.9kg | 1.2X10mm | 2.1mm | 17.1kg | 20kg | 28cm |
| 6'X3' | 25X25X3mm | 1.9kg | 1.2X10mm | 2.1mm | 12.8kg | 14.7kg | 18cm |
| 6'X4' | 25X25X3mm | 1.9kg | 1.2X10mm | 2.1mm | 17.1kg | 19kg | 20cm |
| 6'X6' | 25X25X3mm | 1.9kg | 1.2X10mm | 2.1mm | 25.6kg | 27.5kg | 28cm |
| 6'X6' | 40X40X4mm | 5kg | 1.2X10mm | 2.1mm | 25.6kg | 30.6kg | 28cm |

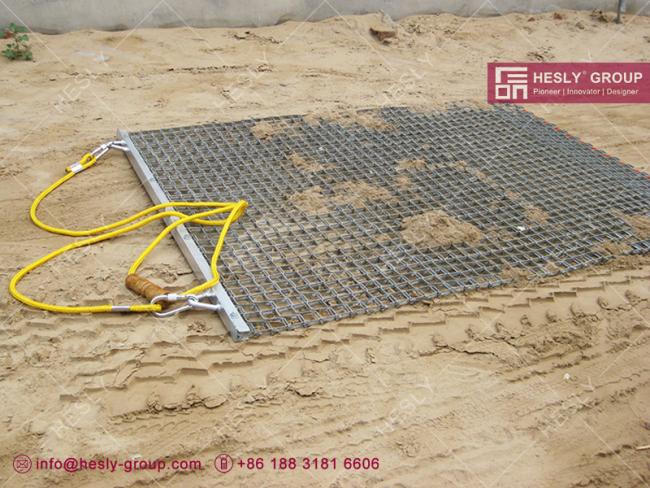

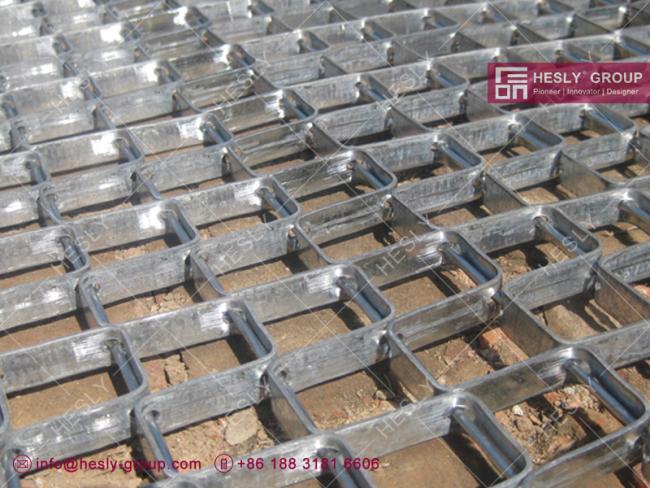

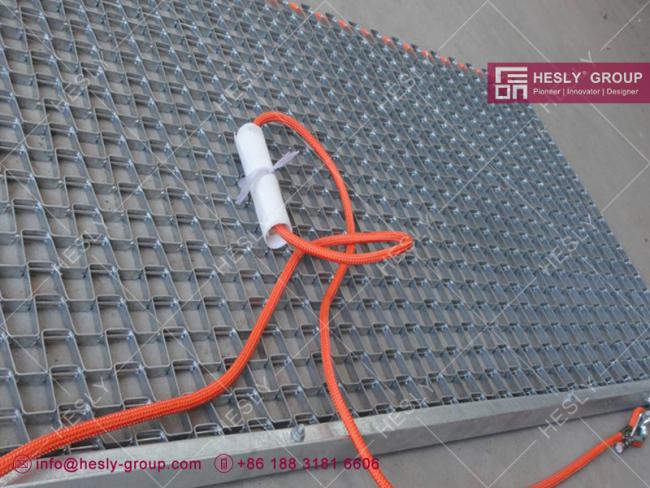

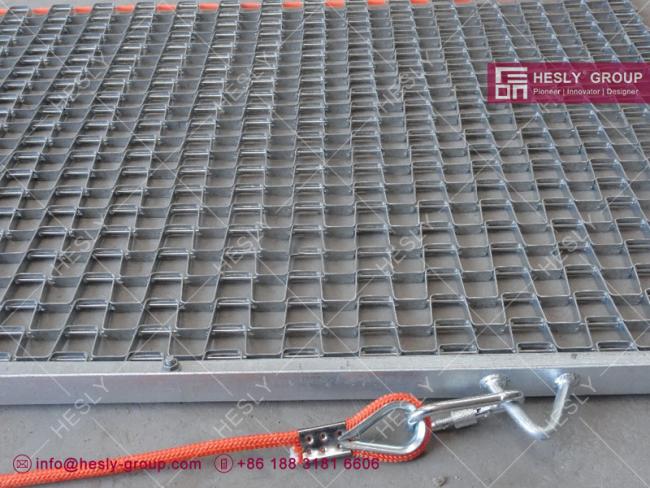

Reference Photos - HESLY Drag Mats
![]() |
![]() |
| Flexible Drag Mat | Drag Mat Supplier |
![]() |
![]() |
| Drag Mat | Drag Mat |
