6ft Premier Horse Panels China Supplier
China 1.8m high Perimer Horse Corral Panels (Supplier)
Lots of pasture or farms need a security fence for their sheep, cattle or horse. They need the security fence be long lasting and removable. In this way, they can transport the fence to anywhere for temporary or permanent application.
HeslyFence® are a professional Corral fence Panels supplier, we can supply all kinds of livestock fence for you. The most common style used in the Australia pasture is the galvanized steel corral panels.
Corral Fence Panels, also called livestock fence , livetstock panel , portable horse yard panel, this is essentially a fencing material made of interlaced tubes. Several fencing panels can make an enclosure or fencing system to keep your cattle or horses and sheeps secure and protected.
In other areas, the rail pipe can be round or square pipe, also the post can be round or square. Different rail pipes can suit different applications and areas, you can choose them according to your preference or your application.
Features & Advantages
>> 360 degree firmly welded for more strength
>> Welding spots neat and smooth, prevent cattle or cows from getting hurt, very safe
>> Welding spots anti-rust finish, very durable,can last 5 years

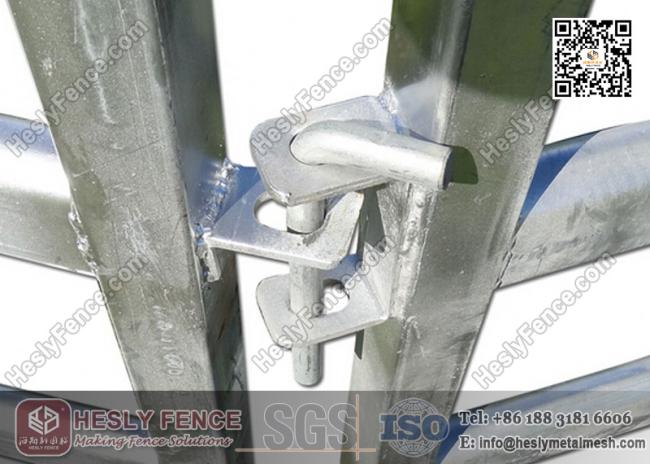

>> U and L lugs can hold the panels together.
1. Specs of galvanized sheep panels
Galvanized Sheep Panels has various specs for your choice, you can choose them according to the application or areas you want to use them.
2. Material: Low carbon steel pipe.
3. Surface treatment: Electric galvanized or hot-dipped galvanized.
4. Rail type: Oval, round or square.
5. Pipe thickness: 1.6 mm, 1.8 mm, 2.0 mm, 2.3 mm and so on.
6. Rail quantity: 3-7.
7. Panel size: 1.6 m × 2.1 m, 1.6 m × 2.2 m, 1.6 m × 2.5 m, 1.7 m × 2.1 m, 1.7 m × 2.2 m,
1.7 m × 2.3 m, 1.8 m × 2.1 m, 1.8 m × 2.2 m, 1.8 m × 2.4 m, 1.8 m × 2.5 m, 1.8 m × 3.37 m,
special specs can be customized.
8.1 A. Specification of oval supporting rails galvanized sheep panels
| Item | Supporting rail size (mm) | Post size (mm) | Rail tube quantity |
|---|---|---|---|
| CCFO-01 | 60 × 30 | 40 × 40 | 6 |
| CCFO-02 | 70 × 40 | 50 × 50 | 6 |
| CCFO-03 | 80 × 40 | 50 × 50 | 6 |
| CCFO-04 | 120 × 40 | 50 × 50 | 6 |
8.2 B. Specification of round supporting rails galvanized sheep panels
| Item | Supporting rail O.D. (mm) | Post size O.D. (mm) | Rail tube quantity |
|---|---|---|---|
| CCFR-01 | 32 | 32 | 6 |
| CCFR-02 | 32 | 42 | 6 |
| CCFR-03 | 32 | 48 | 6 |
| CCFR-04 | 32 | 60 | 6 |
| CCFR-05 | 42 | 42 | 6 |
| CCFR-06 | 42 | 48 | 6 |
| CCFR-07 | 42 | 60 | 6 |
| CCFR-08 | 48 | 48 | 6 |
| CCFR-09 | 48 | 60 | 6 |
| CCFR-10 | 60 | 60 | 6 |
8.3 C. Specification of square supporting rails galvanized sheep panels
| Item | Supporting rail size (mm) | Post size (mm) | Rail tube quantity |
|---|---|---|---|
| CCFS-01 | 40 × 40 | 40 × 40 | 6 |
| CCFS-02 | 40 × 40 | 50 × 50 | 6 |
| CCFS-03 | 50 × 50 | 50 × 50 | 6 |
Ordinary Typs & Specifications
ROUND pipe horse panel | SQUARE pipehorse panel | OVAL pipe horse panel
| Material | Low carbon steel pipes |
| Surface treatment: | Pre hot dipped galvanized Powder coating |
| Size: | Height:1.6m high, 1.8m high, etc Length: 2.07m wide,2.09m wide and 2.1m ,2.8m 3.0m wide, etc |
| Horizontal rails: | three types( round, square, oval) 1)Round pipe: 32mmO.D,42mmO.D and 48mmO.D 2)Square tubes: 40x40mmRHS, 50x50mmRHS 3)Oval rails: 30x60mm, 40x80mm |
| Rails: | 1.8m high with 6 bars/rails or 1.6m high with 5 bars/rails |
| Accessories: | All panels come complete with steel caps, lugs, feet and 2 pins |
Metal Farm Gate | Metal Field Gate
Popular Size Gate
| Height x Length: | 2200mm x 2000mm |
| Frame: |
Horizontal & Vertical pipe: 50 mm x 50 mm RHS x 1.8 mm thick with fully welded caps |
| Cattle Gate Horizontal rail: | 40 mm x 80 mm x 1.6mm thick x 6 oval rails |
| Finishing: |
hot dipped galvanized ,zinc coating:more than 15 microns. Fully welded oval pipes, post &brackets ,heavy duty hinges |
Other Type Size Gate
| Metal Farm Gate | |
|
Metal Farm Gate, N Stay
|
Size: 1.17m×3.05m Corrosion Protection Treatment: Hot-dip galvanization Mesh Size: 100×200mm Wire Diameter: 5mm Pipe Diameter: 32mm |
|
Metal Farm Gate, I Stay
|
Size: 1.17m×3.06m Corrosion Protection Treatment: Hot-dip galvanization Mesh Size: 100mm×200mm Wire Diameter: 5mm Pipe Diameter: 32mm |
| Note: different specifications also available according to customer’s detailed drawings. | |

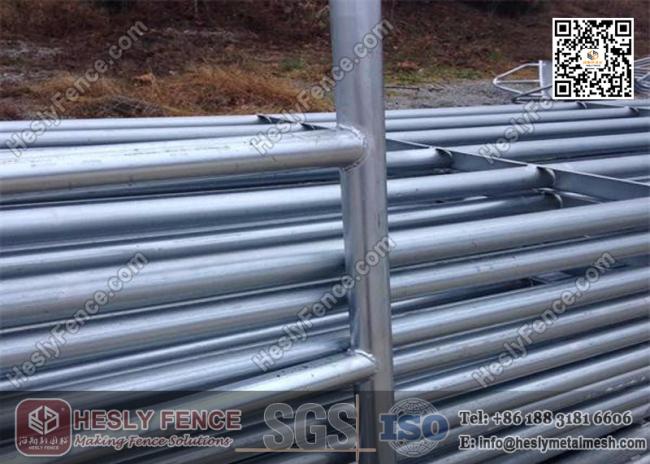

Round Pipe Corral Fence Panel
- Round post its low price
- The ability to fill one container in large numbers during shipping which means reduced transportation costs
- Pipe size can be 32mm,40mm,42mm,48mm etc
SQUARE pipe Corral Fencing Panel
- The square post is also an affordable livestock fence panel
- More durable than a round one
- Pipe size can be RHS40mm or RHS50mm
OVAL Pipe Corral Fence Panel
- The highest priced cattle panel is the oval post which is also the strongest fencing material among the three types.
- The ideal geometry of the oval post causes no harm to the cattle or horses, unlike the square post with sharp edges and corners
- Vertical frameRHS40mmx others oval 30x60mm
- Vertical frameRHS40mmx others oval 40x80mm
- Vertical frameRHS50mmx others oval 40x80mm

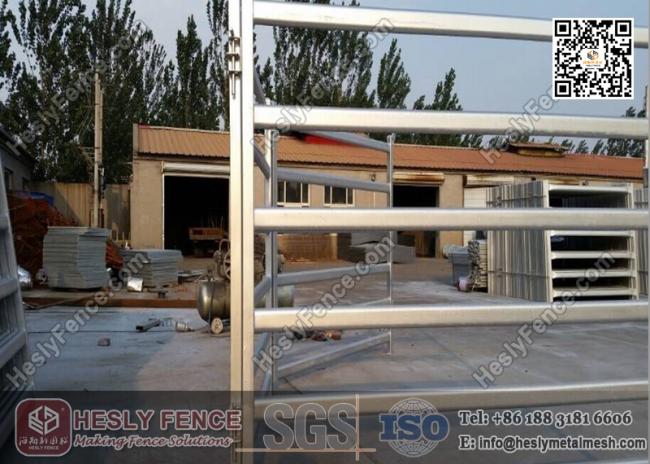

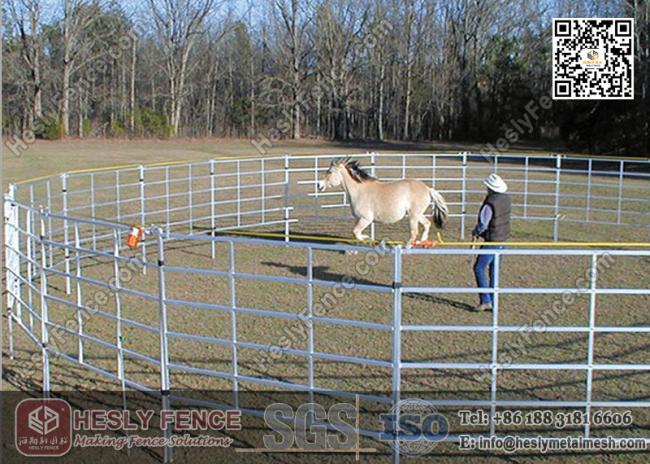

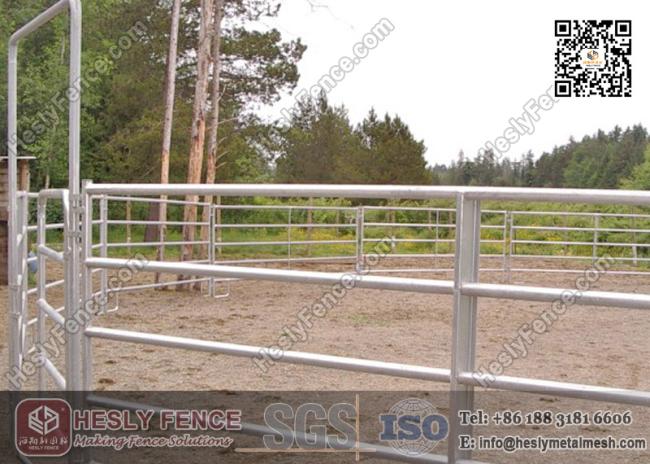

Reference Photos
 |
 |
| Square Tube Horse Fence Panel | Oval Tube Horse Fence Panel |
 |
 |
| Horse Corral Panel | Horse Panel Fence |
 |
 |
| China Horse Corral Fence | China Horse Fence Barrier |
