Anti-Cut 358 Welded Mesh Security Fencing Panels 3"X5" mesh aperture
Anti-Cut Welded Security Fence Panels | 3"X5" mesh aperture

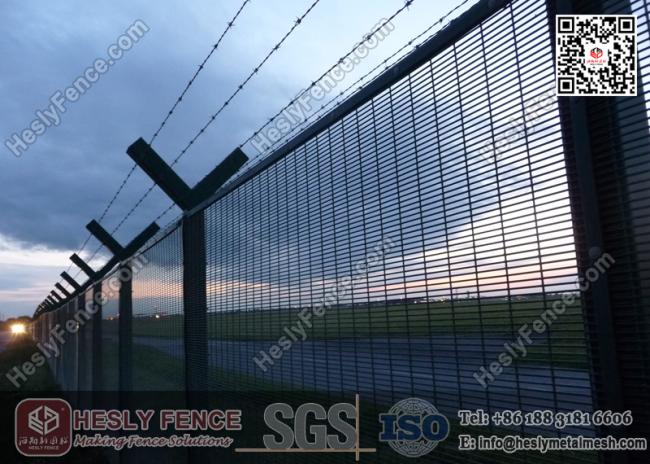

As a security fence, 358 Wire mesh fence is a special structure designed for high security environments, using high quality carbon steel wire to weld a fence panel, and its measurements 3" × 0.5" × 8 gauge which equates to approx. 76.2mm × 12.7mm × 4mm in metric. That is why sometimes we call it "358" mesh fence. This special mesh panels combined with an steel framework and concertina razor wire, can create a complete high security fencing system.
it can provide privacy in some extent. HESLY High Security Fences are used to give enduring and secure protection for the public buildings, commercial properties etc. High security fence can also be worked with electric alarm, detection systems (no blind spots for CCTV) etc. It is also widely used in military, airports, prisons etc.
General Specifications of 358 High Security Fence
| Panels | Posts | ||||
| Fence | Panel Size | section | O/A Length | Total number of fixings | |
| height | Height/Width | Inters- 1 Clamp bar | Corners- 2 Clamp bars | ||
| m | mm | ||||
| 2.0 | 2007 x 2515 | 60x60x2.5mm | 2700 | 7 | 14 |
| 2.4 | 2400 x 2515 | 60x60x2.5mm | 3100 | 9 | 18 |
| 3.0 | 2997 x 2515 | 80x80x2.5mm | 3800 | 11 | 22 |
| 3.3 | 3302 x 2515 | 80x80x2.5mm | 4200 | 12 | 24 |
| 3.6 | 3607 x 2515 | 100x60x3mm | 4500 | 13 | |
| 3.6 | 3607 x 2515 | 100x100x3mm | 4500 | 26 | |
Benefits:
Secure and discreet
A superior system for providing security where a discreet visual impact on the immediate environment is essential.
Vandal resistant

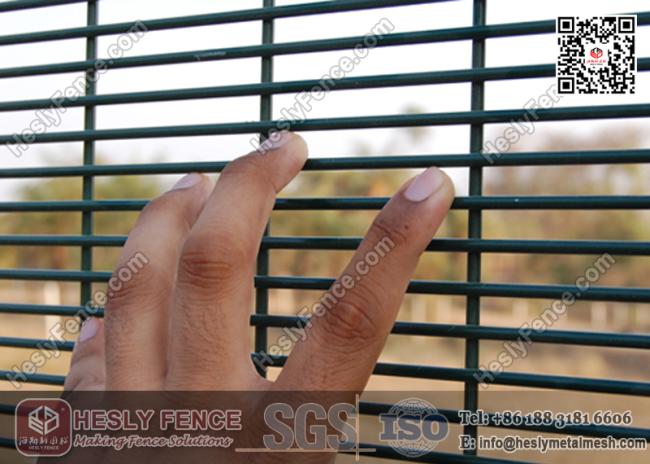

The finger proof aperture combined with 4mm wire diameter provides a barrier that is difficult to climb or penetrate. Almost impossible to cut wires by use of conventional bolt or wire cutters.
Efficient deterrence
An effective deterrent to intruders available in various heights up to 6m. Compatible with electronic detection and alarm systems.
Good viewing visibility
In spite of the small mesh aperture the see-through characteristics remain unimpaired when viewed head-on and even at an angle to the fence. This is particularly important for clear camera surveillance.
Durability
The high quality advanced coating technology guarantees an extended product life span and low maintenance.
Weld Strength
The superior welding technique and process control create a stronger fusion between the wires.
Complete system
Supplied as a complete system with panels, posts and gates - stepped panels available to suit sloping sites.
![]() |
![]() |

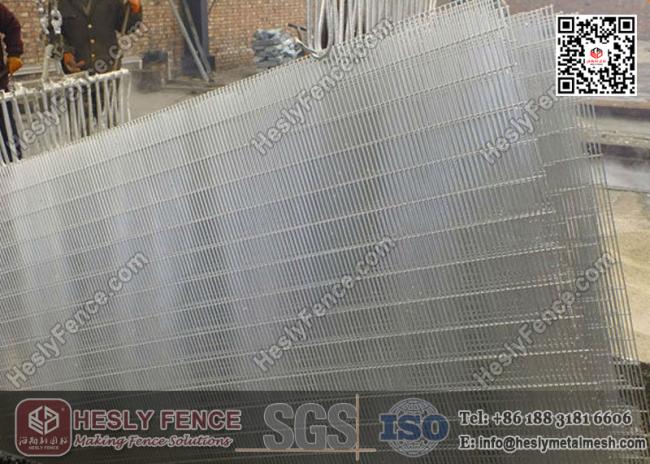

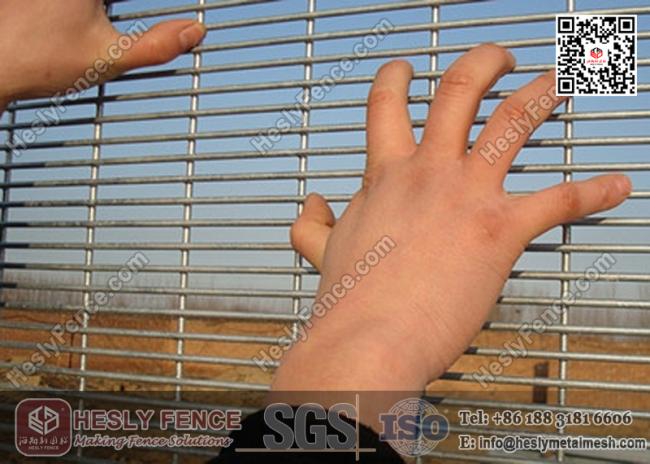

| Galvanised 358 Mesh Panel | Galvanised 358 Anti-climb Mesh Panel |
![]() |
![]() |

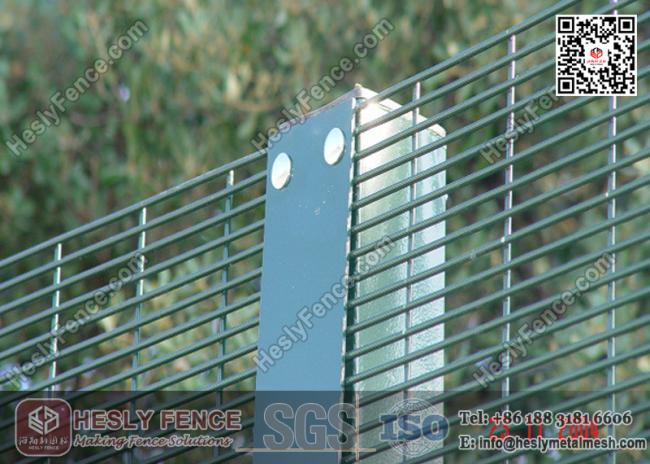

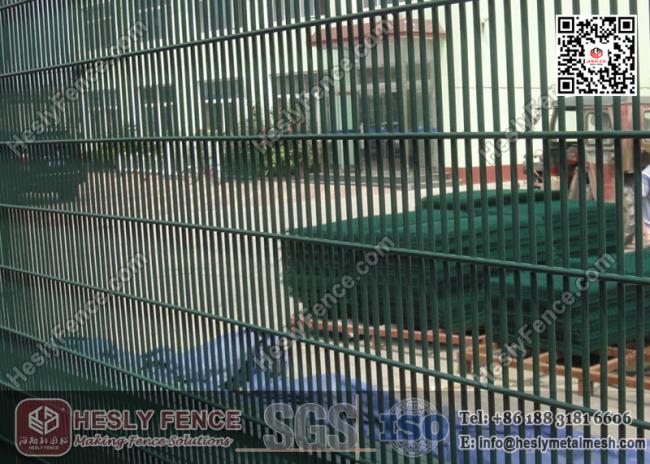

| RAL 6005 Green Color Anti-climb Mesh Panel | RAL 6005 Green Color Anti-climb Mesh Panel |
![]() |
![]() |

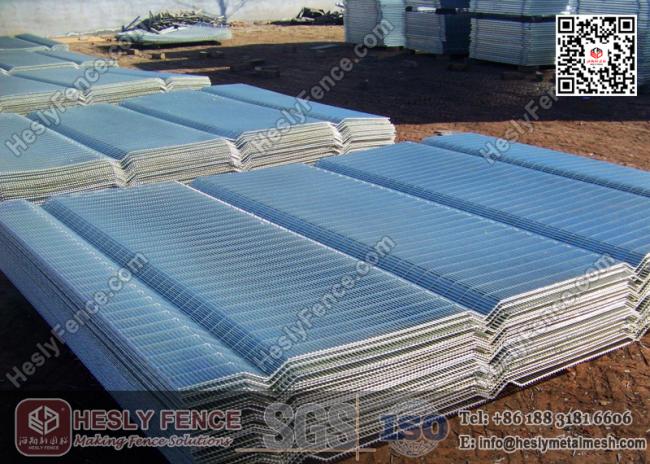

| Anti-cut Hight Security Prison Fencing | High Security Anti-cut Mesh Fencing |
![]() |
![]() |

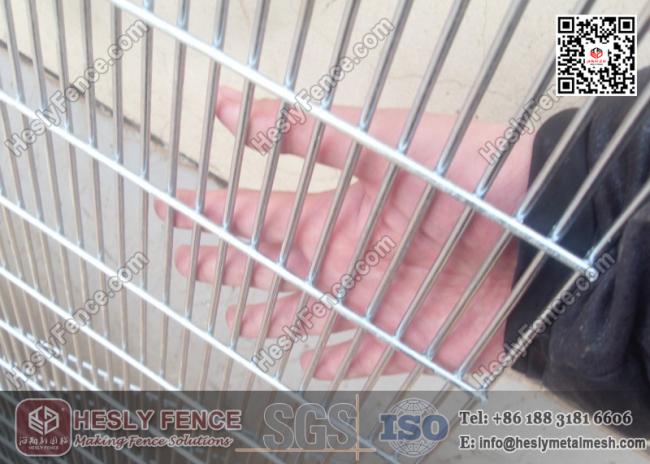

| Galvanised Mesh Panel | With Reinforced Bending Mesh Panel |
![]() |
![]() |

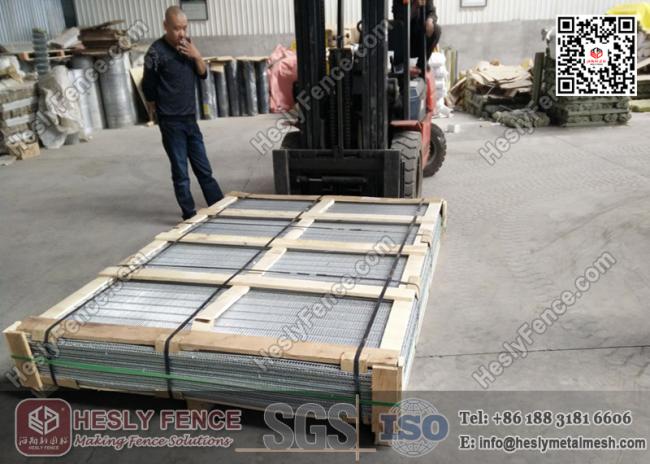

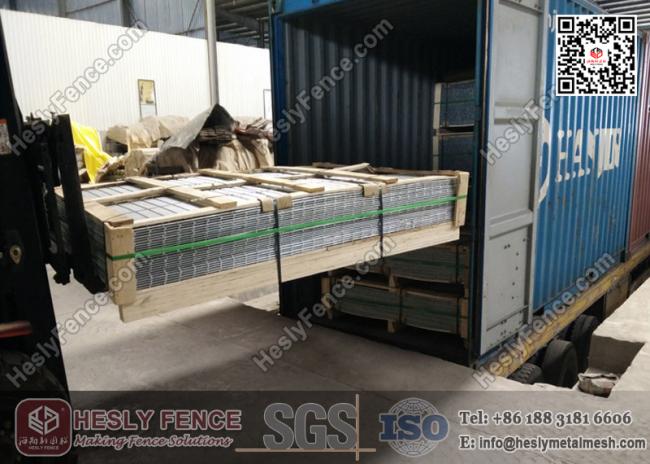

| Package | Loading Container |
HESLY FENCING SOLUTIONS (HeslyFence®) is China-Based Wire Mesh Fence Designer, Manufacturer & Exporter. Pls don't hesitate to contact us for the fast quoted, Professional and Reliable service.
At HeslyFence, where you can purchase all of your fencing and accessories for your project. With our quality service, you will receive:
>> Quality products at the lowest price
>> Reliable advice from our friendly professional HeslyFence team
>> An efficient order process
>> Delivery to you in time.
![]() |
