China Military Defensive Barrier with white color geotextile cloth (Manufacturer/Factory)
China Military Defensive Barrier with white color geotextile cloth (Manufacturer/Factory)
The HESLY Military Defensive Barriers unit is a multi-cellular barrier system manufactured from welded Hot-dipped galvanised steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.
All HESLY barriers are pre-assembled and delivered palletized with joining pins, to enable the connection of individual units, which can then be filled with available material using minimal manpower and commonly available equipment. Protection is afforded by the fill material of the structure as a consequence of its mass and physical properties, allied with the proven dynamic properties of Concertainer units.
Whether used as a preventative barrier or to define boundaries, HESLY Gabion Barrier units have been employed to safeguard personnel, vehicles, equipment, facilities and other critical assets in a variety of military, peacekeeping, humanitarian and civilian operations.
Defence of HESLY Gabion barriers

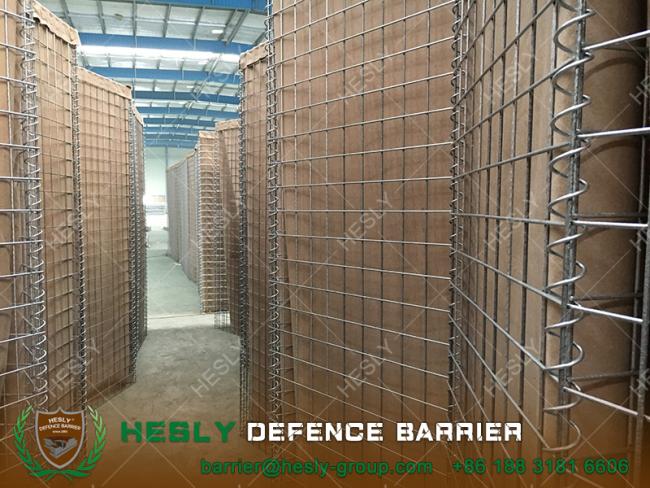

Applications include:![defensive sand barrier wall]()
- Perimeter security
- Defensive barriers
- Equipment revetments
- Ammunition compounds
- Personnel bunkers
- Observation points
- Guard posts
- Ammunition and explosives stores
- Contraband search areas
- Highway checkpoints
- Border crossing checkpoints
- Protecting existing structures
- Traffic management
- Hostile vehicle mitigation
| General Specification Sheet - HESLY Defensive Barriers | ||||
| Model | Height | Width | Length | Structure |
| MDB-1 5442 | 1.37m(54") | 1.06m(42") | 10m(32'9") | 5cells+4cells |
| MDB-2 2424 | 0.61m(24") | 0.61m(24") | 1.22m(4') | 2cells |
| MDB-3 3939 | 1.00m(39") | 1.00m(39") | 10m(32'9") | 5cells+5cells |
| MDB-4 3960 | 1.00m(39") | 1.52m(60") | 10m(32'9") | 10cells+10cells |
| MDB-5 2424 | 0.61m(24") | 0.61m(24") | 3.05m(10') | 5cells |
| MDB-6 6624 | 1.68m(66") | 0.61m(24") | 3.05m(10') | 5cells |
| HMIL-7 8784 | 2.21m(87") | 2.13m(84") | 27.74m(91') | 4cellsX2+5cells |
| MDB-8 5448 | 1.37m(54") | 1.22m(4') | 10m(32'9") | 5cells+4cells |
| MDB-9 3930 | 1.00m(39") | 0.76m(30") | 9.14m(30') | 6cells+6cells |
| MDB-10 8760 | 2.21m(87") | 1.52m(60") | 32.5m(100') | 5cellsX6 |
| MDB-11 4812 | 1.22m(4') | 0.30m(12") | 1.22m(4') | 2cells |
| MDB-12 8442 | 2.13m(84") | 1.06m(42") | 33m(108') | 5cellsX6 |
| NOTE: OEM/ODM is available. Barrier dimensions can be custom-made. | ||||
 |
 |
| Military Defensive Barrier Factory | Gabion Barrier China Exporter |
 |
 |
| Africa Defence Barrier | UN Peace keeping Gabion Barrier |
 |
 |
| Military Defence Barrier Camp | HESCO Defensive Barrier Bunker |
Package and Delivery - Defensive Barrier_CHINA
 |
 |
| Military Gabion Barrier China Factory | Defensive Barrier unit HESLY |
 |
|
