Military Defensive Gabion Barrier with grey color geotextile cloth (Manufacturer/Factory)

The HESLY Military Defensive Barriers unit is a multi-cellular barrier system manufactured from welded Hot-dipped galvanised steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.

All HESLY barriers are pre-assembled and delivered palletized with joining pins, to enable the connection of individual units, which can then be filled with available material using minimal manpower and commonly available equipment.

Protection is afforded by the fill material of the structure as a consequence of its mass and physical properties, allied with the proven dynamic properties of Concertainer units.

Whether used as a preventative barrier or to define boundaries, HESLY Gabion Barrier units have been employed to safeguard personnel, vehicles, equipment, facilities and other critical assets in a variety of military, peacekeeping, humanitarian and civilian operations.

Defence of HESLY Gabion barriers

The HESLY Bastion Barriers has been fortified by our defensive barriers and our work with the military. From a simple perimeter wall to a complex base infrastructure, HeslyBarrier products provide rapid expeditionary protection to personnel, equipment and critical assets in any terrain.

Applications include:

• Perimeter security
• Defensive barriers
• Equipment revetments
• Ammunition compounds
• Personnel bunkers
• Observation points
• Guard posts
• Ammunition and explosives stores
• Contraband search areas
• Highway checkpoints
• Border crossing checkpoints
• Protecting existing structures
• Traffic management
• Hostile vehicle mitigation

General Specifications



HESLY® Military Gabion Barriers
Model	HEIGHT	WIDTH	LENGTH
MDB1 5442	54’’(1.37M)	42’’(1.06M)	32’9’’(10M)
MDB2 2424	24’’ (0.61M)	24’’(0.61M)	4’(1.22M)
MDB3 3939	39’’(1.00M)	39’’(1.00M)	32’.9’’(10M)
MDB4 3960	39’’(1.00M)	60’’(1.52M)	32’.9’’(10M)
MDB5 2424	24’’(0.61M)	24’’(0.61M)	10’(3.05M)
MDB6 6624	66’’(1.68M)	24’’(0.61M)	10’(3.05M)
MDB7 8784	87’’(2.21M)	84’’(2.13M)	91’(27.74M)
MDB8 5448	54’’(1.37M)	48’’(1.22M)	32’.9’’(10M)
MDB9 3930	39’’(1.00M)	30’’(0.76M)	30’’(9.14M)
MDB10 8760	87’’(2.21M)	60’’(1.52M)	100’(32.50M)
MDB11 4812	48’’(1.22M)	12’’(0.30M)	4’(1.22M)
MDB12 8442	84’’(2.13M)	42’’(1.06M)	108’(33M)
NOTE: We accept OEM/ODM, and can design and make the barriers according to special requirements.



Reference Photos

Military Defensive Barrier	Peacekeeping Barrier
Military Sand Barrier	Welded Gabion Barrier

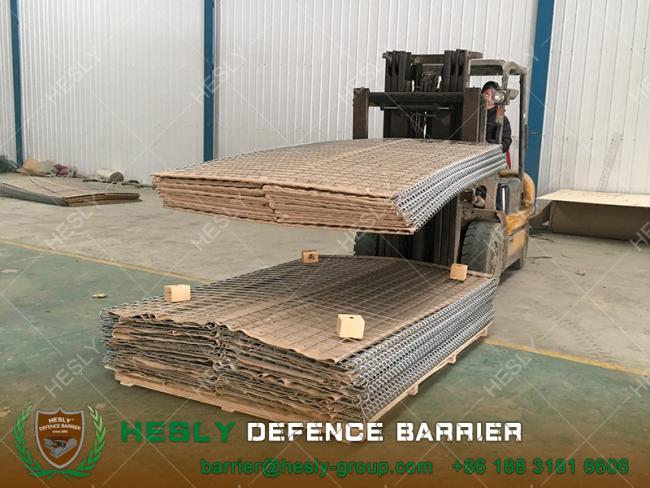

Package and Delivery



Defensive Barrier China	Military Defensive Barrier





	HESLY Gabion Defence Barrier Factory
