3.0mm 7X19 structure Stainless Steel Wire Mesh China Supplier

Stainless Steel Wire Rope Mesh (stainless steel wire cable net) is very popular in the field of modern architectural decoraturation and animal protection.

The Hesly Architectural Mesh is experienced in processing stainless steel wire rope mesh, available Sleeve Type andWoven Type which made from super 304,316 grade stainless steel cable or Hot Dipped Galvanized Wire Cable.

SS Cable Mesh (Ferrule/Sleeve Type)	SS Cable Mesh (Woven Type)

Advantages

The Hesly Wire Rope Mesh is ideal for many different applications, including: balustrade infill, animal enclosures, art forms, plant supports, safety nets, fencing and aviaries.

Technical Info

HeslyRope stainless steel wire rope mesh net is assembed by seamless ferrules and stainless steel wire rope.Diamond mesh when it is stretched at 60° angle ( Option: 20 °- 90° angle ).

Rope diameter:1.0 mm (7*7 ),1.5 mm (7*7 ), 2.0 mm (7*7 ),3.0 mm (7*19) ,4.0 mm (7*19).

Opening (OW X OH): 20mm x 35 mm - 200mm x 346 mm.

Stainless Steel Wire Ropes
Structure	1.0 mm	1.5 mm	2.0 mm	3.0mm	4.0 mm
Structure	7 x 7	7 x 7	7 x 7	7 x 19	7 x 19
Single Wire TS (N/mm2)	1770	1770	1770	1570	1570
Mesh Structure
Opening Size	Rope Diameter
OW X OH	1.0 mm	1.5 mm	2.0 mm	3.0 mm	4.0 mm
20 x 35	CD1020
25 x 43	CD1025	CD1525
35 x 61	CD1035	CD1535
40 x 69	CD1040	CD1540	CD2040
50 x 87	CD1050	CD1550	CD2050	CD3050
60 x 104	CD1060	CD1560	CD2060	CD3060	CD4060
70 x 121	CD1070	CD1570	CD2070	CD3070	CD4070
80 x 139	CD1080	CD1580	CD2080	CD3080	CD4080	HeslyRope
100 x 173	CD10100	CD15100	CD20100	CD30100	CD40100	OW : Opening Width
120 x 242	CD10120	CD15120	CD20120	CD30120	CD40120	OH : Opening Height
160 x 277	CD10160	CD15160	CD20160	CD30160	CD40160	OG : Opening Guage
180 x 312	CD10180	CD15180	CD20180	CD30180	CD40180	α : 60° standard (Angle: 30° - 90°)
200 x 346	CD10200	CD15200	CD20200	CD30200	CD40200

Stretched

The HeslyRope rope mesh net can be stretched at 20°-90°,standard 60° angle.

Opening Orientation

Customized wire rope mesh net's height and length.

Reference Photos

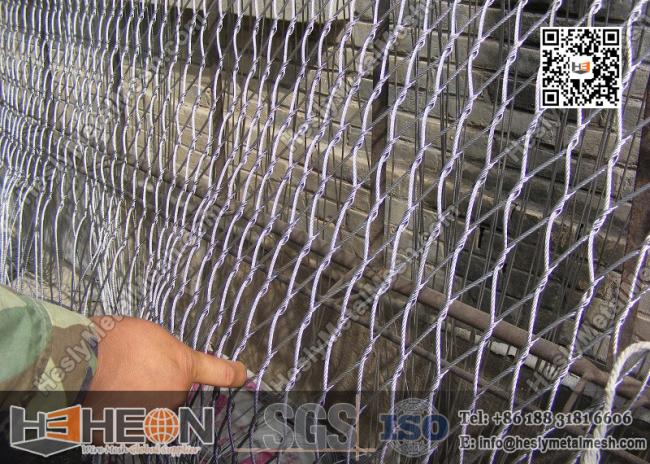

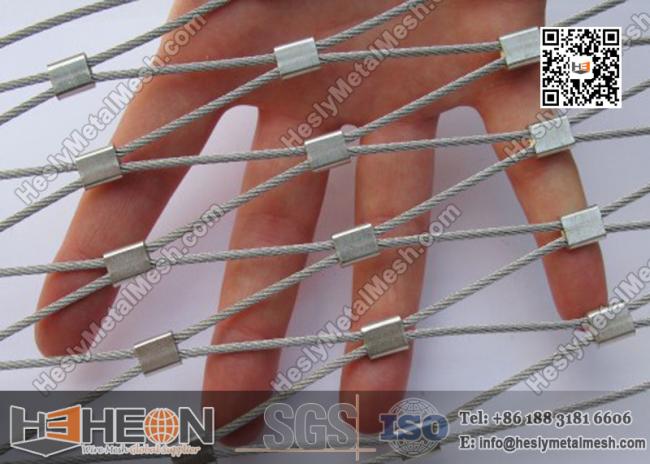

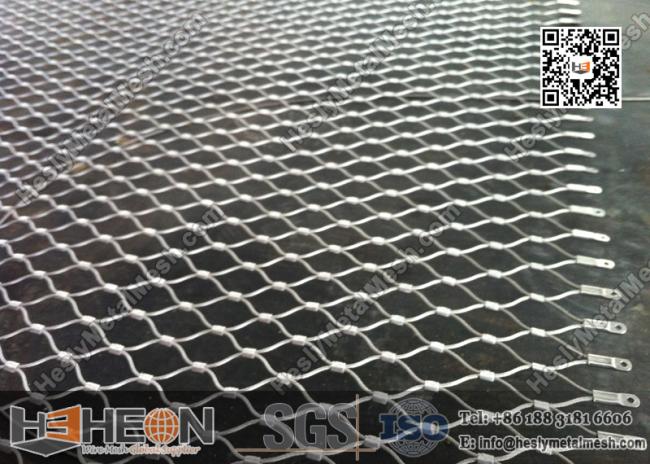

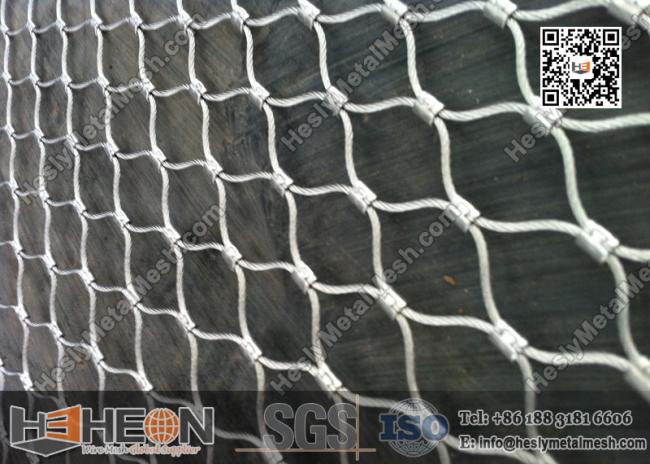

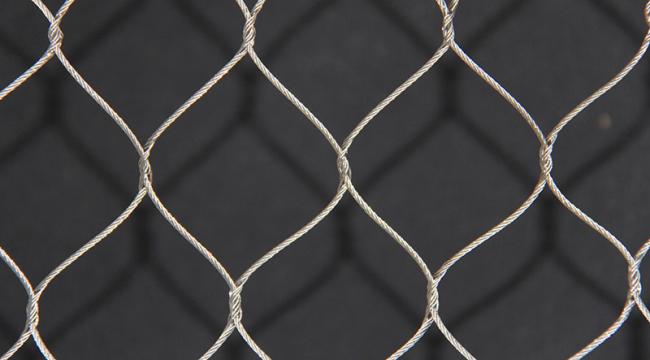

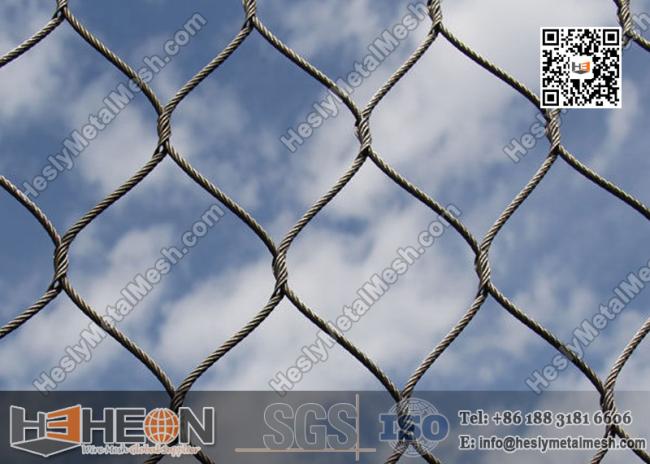

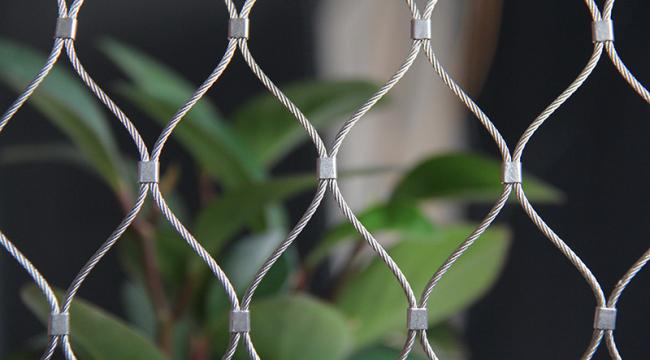

Ferrule Stainless Steel Wire Cable Mesh	Woven Stainless Steel Wire Rope Mesh
Stainless Steel Wire Rope Mesh	Stainless Steel Wire Rope Mesh

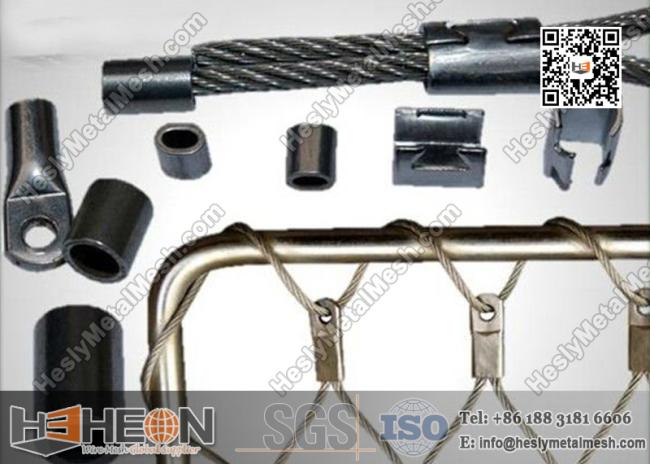

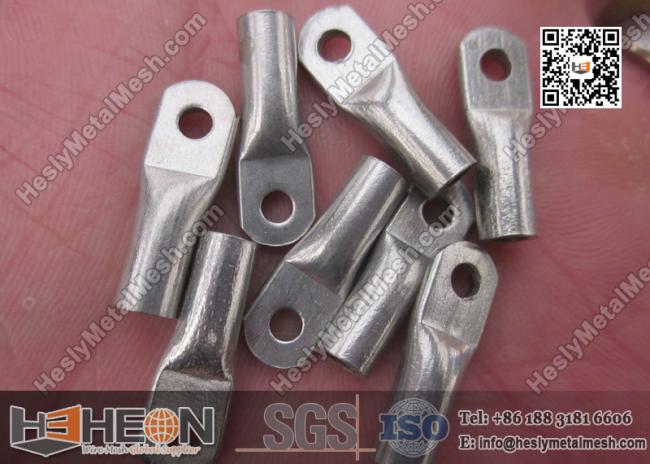

End Clips	Clips

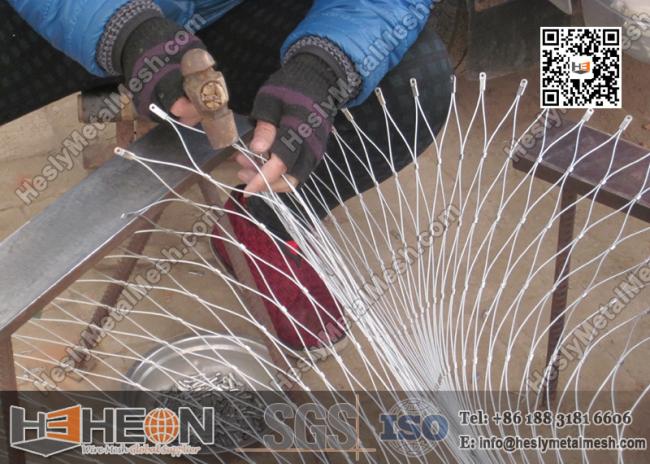

Pure Hand-Made	Pure Hand-Made
Hand Woven	Hand Woven

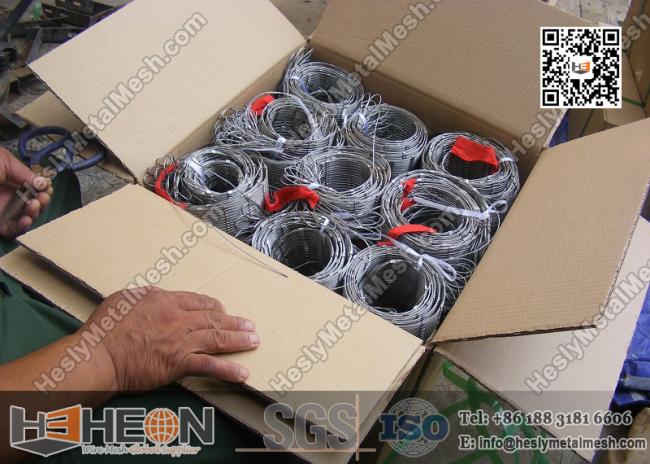

Package with carton	Package with plywood box

How to order ?

• Rope diameter + Opening : such as CD1560,CD3060 etc

• Opening orientation : H or V

• Edge : such as L10,L18,L24 etc

• Piece height and length

• Drawing is necessary if available

• Order e.g. :CD1560 - 60° - H - L10 - Height x Length

• Contact Us info@heslymetalmesh.com  +86 180 3181 5787
