1X1X1m Welded Mesh Military Defensive Barrier | HESLY China Bastion Barrier Factory
1X1X1m Military Defensive Barrier | HESLY China Bastion Barrier Factory
The HESLY Military Defensive Barriers unit is a multi-cellular barrier system manufactured from welded Hot-dipped galvanised steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.
All HESLY barriers are pre-assembled and delivered palletized with joining pins, to enable the connection of individual units, which can then be filled with available material using minimal manpower and commonly available equipment. Protection is afforded by the fill material of the structure as a consequence of its mass and physical properties, allied with the proven dynamic properties of Concertainer units.
Whether used as a preventative barrier or to define boundaries, HESLY Gabion Barrier units have been employed to safeguard personnel, vehicles, equipment, facilities and other critical assets in a variety of military, peacekeeping, humanitarian and civilian operations.
Defence of HESLY Gabion barriers
Applications include:
- Perimeter security
- Defensive barriers
- Equipment revetments
- Ammunition compounds
- Personnel bunkers
- Observation points
- Guard posts
- Ammunition and explosives stores
- Contraband search areas
- Highway checkpoints
- Border crossing checkpoints
- Protecting existing structures
- Traffic management
- Hostile vehicle mitigation
| General Specification Sheet - HESLY Defensive Barriers | ||||
| Model | Height | Width | Length | Structure |
| MDB-1 5442 | 1.37m(54") | 1.06m(42") | 10m(32'9") | 5cells+4cells |
| MDB-2 2424 | 0.61m(24") | 0.61m(24") | 1.22m(4') | 2cells |
| MDB-3 3939 | 1.00m(39") | 1.00m(39") | 10m(32'9") | 5cells+5cells |
| MDB-4 3960 | 1.00m(39") | 1.52m(60") | 10m(32'9") | 10cells+10cells |
| MDB-5 2424 | 0.61m(24") | 0.61m(24") | 3.05m(10') | 5cells |
| MDB-6 6624 | 1.68m(66") | 0.61m(24") | 3.05m(10') | 5cells |
| HMIL-7 8784 | 2.21m(87") | 2.13m(84") | 27.74m(91') | 4cellsX2+5cells |
| MDB-8 5448 | 1.37m(54") | 1.22m(4') | 10m(32'9") | 5cells+4cells |
| MDB-9 3930 | 1.00m(39") | 0.76m(30") | 9.14m(30') | 6cells+6cells |
| MDB-10 8760 | 2.21m(87") | 1.52m(60") | 32.5m(100') | 5cellsX6 |
| MDB-11 4812 | 1.22m(4') | 0.30m(12") | 1.22m(4') | 2cells |
| MDB-12 8442 | 2.13m(84") | 1.06m(42") | 33m(108') | 5cellsX6 |
| NOTE: OEM/ODM is available. Barrier dimensions can be custom-made. | ||||
 |  |
| Workshop 01 | Workshop 02 |
 |  |
| Assemble Mesh Panel Skin | Install Lined Geotextile |
 |  |

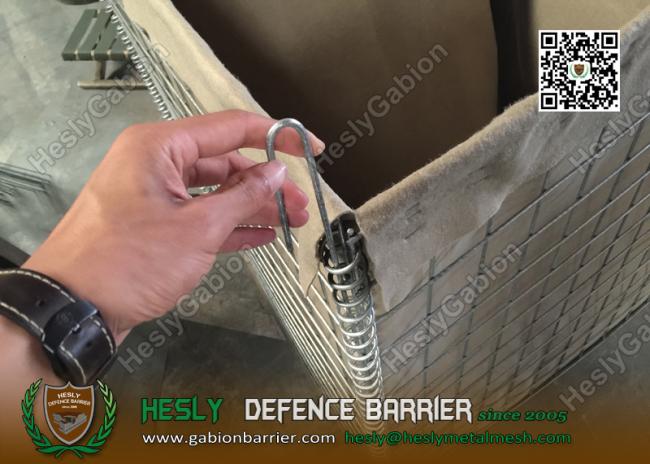

| Connection Spring | Connect adjacent mesh panels |
 |  |
| Barriers Finished | Fold Barriers |
 |  |
| Details | Details |
 |  |

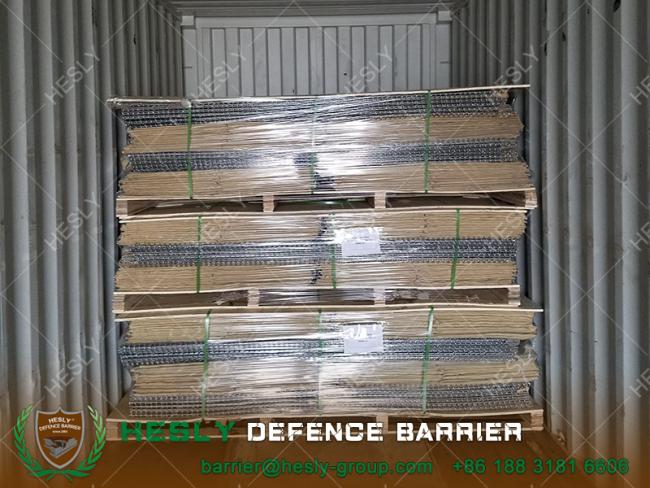

| Package & Loading Container | Package & Loading Container |
