HESLY Passive Rockfall Barrier System | High 3.0m | Width 10m | Steel Ring Net & Rope Mesh | HesyFence-China

Complete System

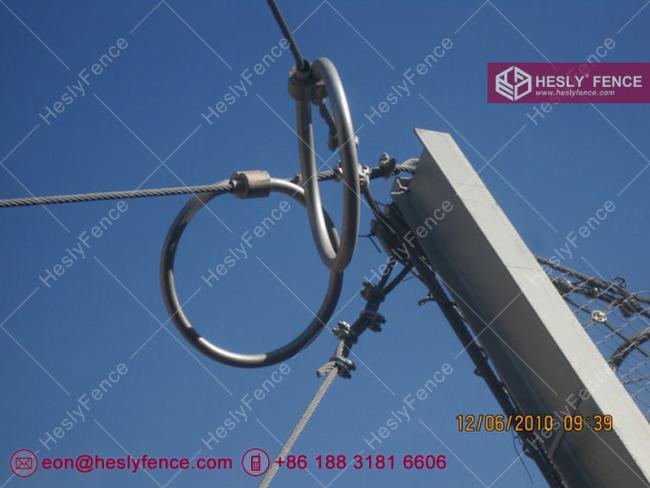

Passive Rockfall Barrier System or Rockfall Catch Fencing consists of I-beam posts spaced at certain intervals with a wire rope support system running from post to post with special friction devices placed in the support ropes. Then wire rope nets are attached to the support system and backed with a wire mesh. All of the anchors used in this system must meet required pull-out strength as determined by the rockfall energies the system will be absorbing.

This type of system is generally used where there is sufficient catchment from the toe of the slope to the area being protected. The location and height of fence will be largely dependent on the topography of the face and space constraints at the foot of the slope. The fence’s energy absorption capacity will depend on the mass of falling rock, its likely trajectory and required confidence levels. There are several types of installations that can be utilized depending on rock size, velocities and bounce heights to control and stop the rockfalls. These systems have been extensively engineered and field tested to assure they function as required.

Passive Rockfall Barrier	Steel Ring Net Barrier	Chain Wire Rockfall Fence

Applications

Passive Rockfall Barriers System or Catch Fencing are installed as a measure to contain falling rock. Passive systems, in contrast to active systems, allow rock movement to occur but focus on preventing rockfall from reaching roads, railways, working areas, and other areas being protected. Protection is done by retaining, controlling, and catching rockfall events. Passive systems are often the most cost-effective solution as some rockfall source areas are not accessible.

Reference Photos - Rockfall Protection Netting

Steel Cable Mesh	SNS Rockfall Mesh China Factory
Steel Ring Net China Factory	Steel Ring Net Slope Protection
Rockfall Protection Mesh	HESLY Rockfall Protection Barrier

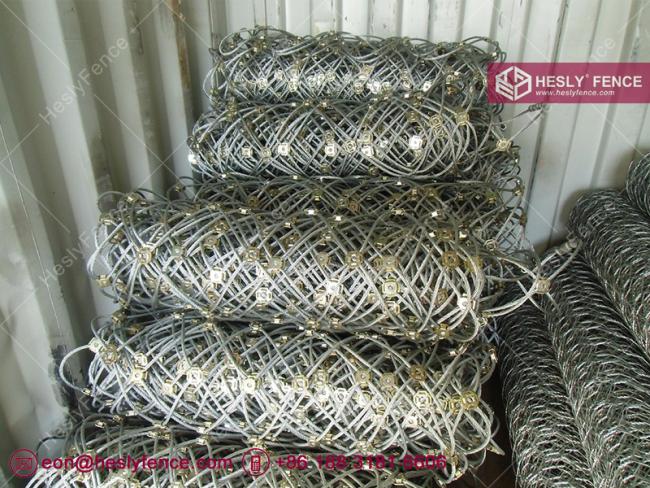

Package and Delivery

HESLY Rockfall Barrier	China Rockfall Protection Net

HeslyFence^® is China-Based Wire Mesh Fence Designer, Manufacturer & Exporter. Our products have been exported to more than 50 countries and regions. At HeslyFence, where you can purchase all of your temporary fencing and accessories for your project. With our quality service, you will receive:
>> ISO Certificated factory.
>> Quality products at the lowest price
>> Reliable advice from our friendly professional HeslyFence team
>> An efficient order process
>> Delivery to you in time.​
Pls don't hesitate to contact us for the fast quoted, Professional and Reliable service.
