1.37m height Military Protective Barrier Wall, Military Green Geotextile Cloth, Welded Wire Mesh Frame - Factory sales
1.37m height Military Protective Barrier Wall, Military Green Geotextile Cloth, Welded Wire Mesh Frame
Brief Introduction
The HESLY Military Defensive Barriers unit is a multi-cellular barrier system manufactured from welded Hot-dipped galvanised steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.
About the newest Recoverable Defensive Barriers
The recoverable Defensive Barriers provides the same high-specification welded mesh and geotextile as standard barrier units, but the new recoverable feature means that individual cells can be opened by removing just one pin, allowing the fill material to be released from the unit.
Recoverable barrier units are deployed in exactly the same way as the standard barrier products. Once the mission is over, efficient recovery for disposal can begin. To recover the units for disposal simply open the cell by removing the pin, this allows the fill material to flow freely from the cell. The units can then be recovered fully intact and flat packed for transportation for recycling or disposal, providing substantial reduction in logistical and environmental impact.
Protection is afforded by the fill material of the structure as a consequence of its mass and physical properties, allied with the proven dynamic properties of Concertainer units.
Whether used as a preventative barrier or to define boundaries, HESLY Gabion Barrier units have been employed to safeguard personnel, vehicles, equipment, facilities and other critical assets in a variety of military, peacekeeping, humanitarian and civilian operations.
Defence of HESLY Gabion barriers
Applications include:
- Perimeter security

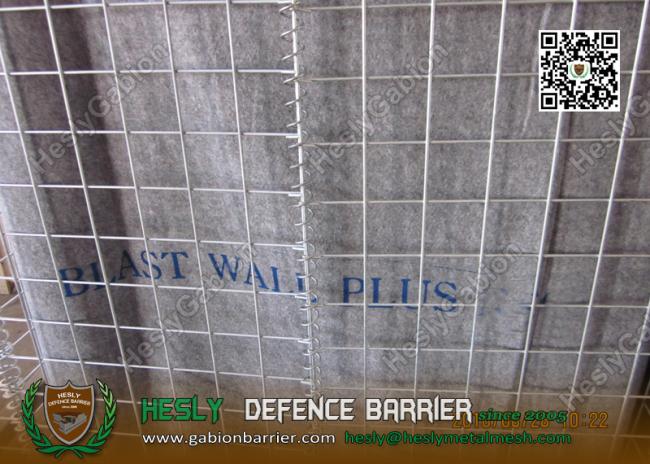

![HESCO Bastion Barrier with grey geotextile]()
- Defensive barriers
- Equipment revetments
- Ammunition compounds
- Personnel bunkers
- Observation points
- Guard posts
- Ammunition and explosives stores
- Contraband search areas
- Highway checkpoints
- Border crossing checkpoints
- Protecting existing structures
- Traffic management
- Hostile vehicle mitigation
| General Specification Sheet - HESLY Defensive Barriers | ||||
| Model | Height | Width | Length | Structure |
| MDB-1 5442 | 1.37m(54") | 1.06m(42") | 10m(32'9") | 5cells+4cells |
| MDB-2 2424 | 0.61m(24") | 0.61m(24") | 1.22m(4') | 2cells |
| MDB-3 3939 | 1.00m(39") | 1.00m(39") | 10m(32'9") | 5cells+5cells |
| MDB-4 3960 | 1.00m(39") | 1.52m(60") | 10m(32'9") | 10cells+10cells |
| MDB-5 2424 | 0.61m(24") | 0.61m(24") | 3.05m(10') | 5cells |
| MDB-6 6624 | 1.68m(66") | 0.61m(24") | 3.05m(10') | 5cells |
| HMIL-7 8784 | 2.21m(87") | 2.13m(84") | 27.74m(91') | 4cellsX2+5cells |
| MDB-8 5448 | 1.37m(54") | 1.22m(4') | 10m(32'9") | 5cells+4cells |
| MDB-9 3930 | 1.00m(39") | 0.76m(30") | 9.14m(30') | 6cells+6cells |
| MDB-10 8760 | 2.21m(87") | 1.52m(60") | 32.5m(100') | 5cellsX6 |
| MDB-11 4812 | 1.22m(4') | 0.30m(12") | 1.22m(4') | 2cells |
| MDB-12 8442 | 2.13m(84") | 1.06m(42") | 33m(108') | 5cellsX6 |
| NOTE: OEM/ODM is available. Barrier dimensions can be custom-made. | ||||
 |
 |
| Military Defensive Barrier | Blast Gabion Wall |
 |
 |
| Military Defensive Barrier | Welded Gabion Barrier |
 |
 |

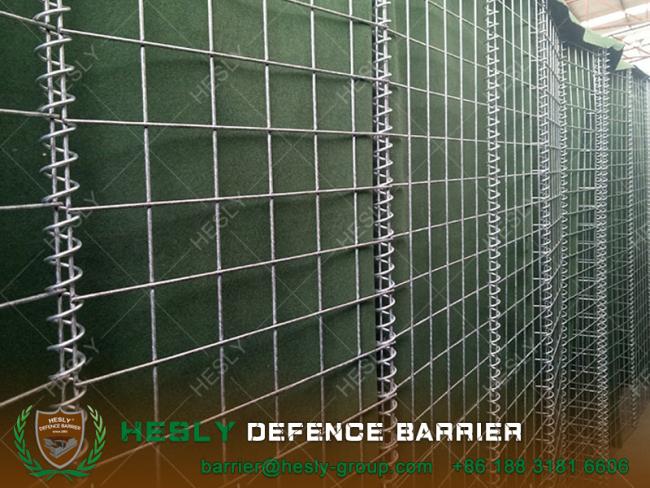

| Connection Spring | Connect adjacent mesh panels |
 |
 |

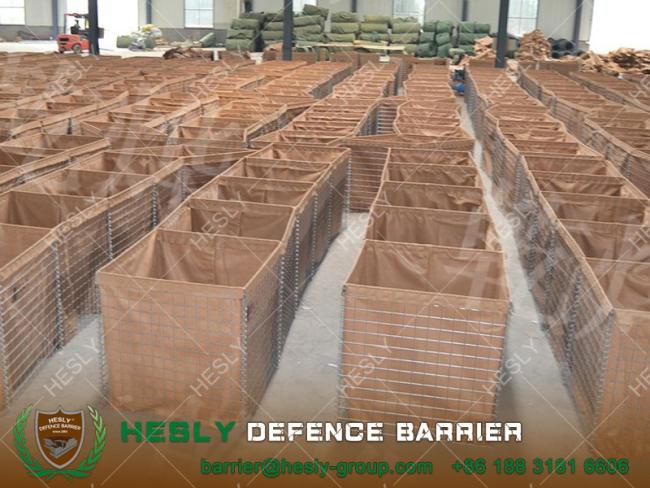

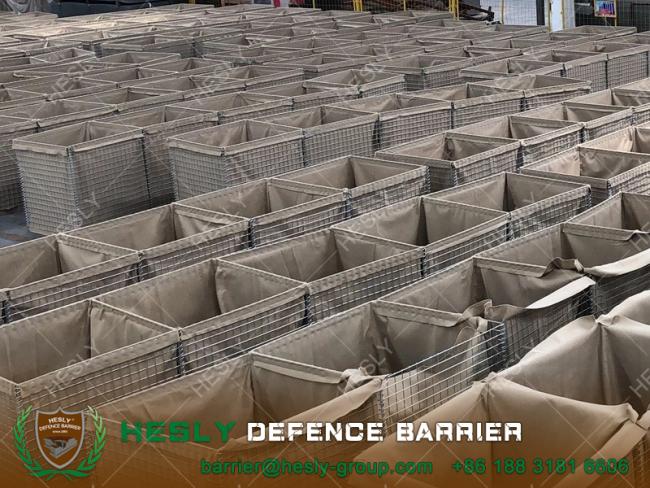

| Barriers Finished | Fold Barriers |
 |
 |
| Details | Details |
 |
 |

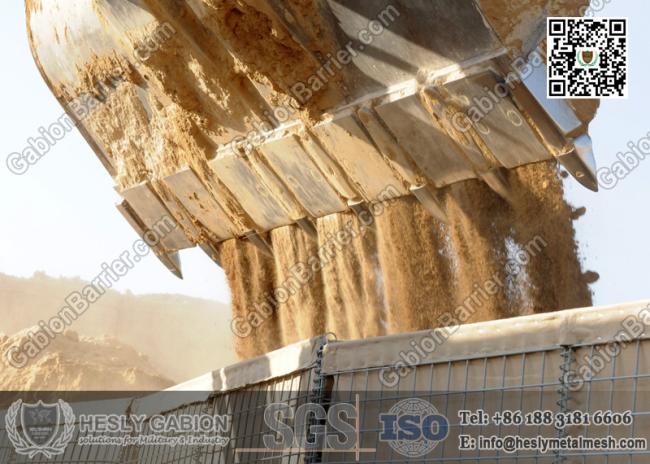

| Soil Filled | Soil Filled |
 |
 |

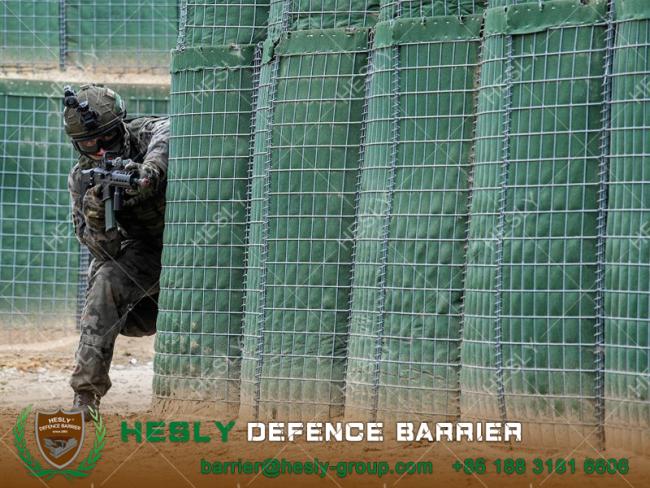

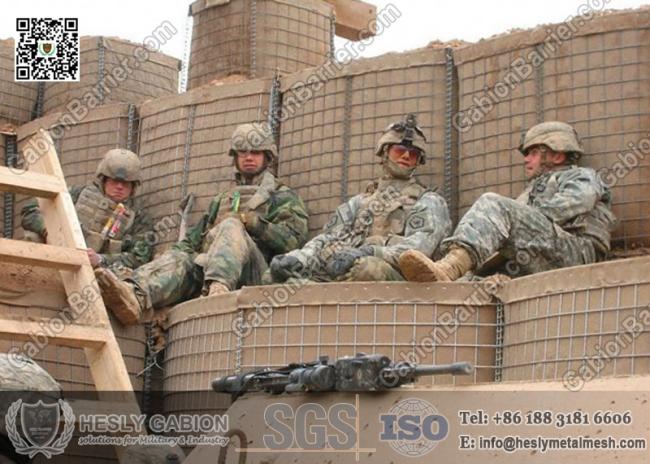

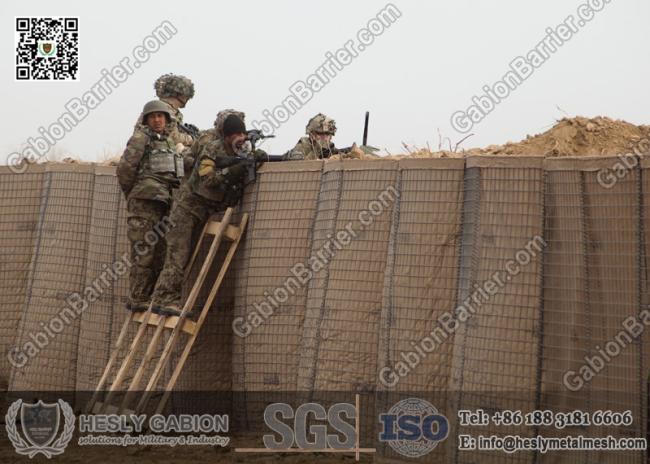

| Application in Military Defense | Application in Military Defense |
 |
 |

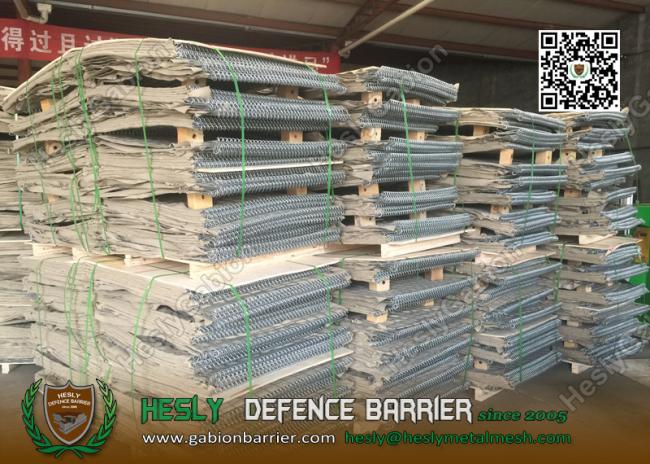

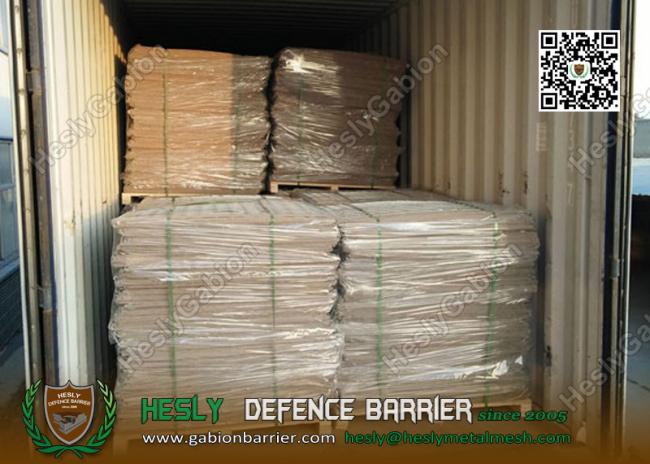

| Package & Loading Container | Package & Loading Container |
 |
