Brief Introduction

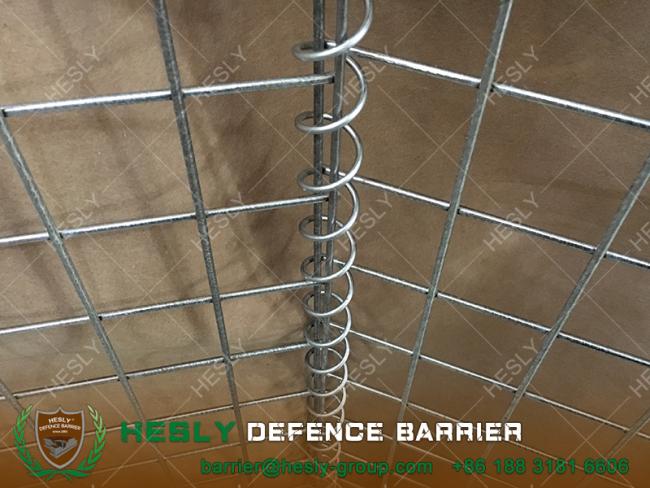

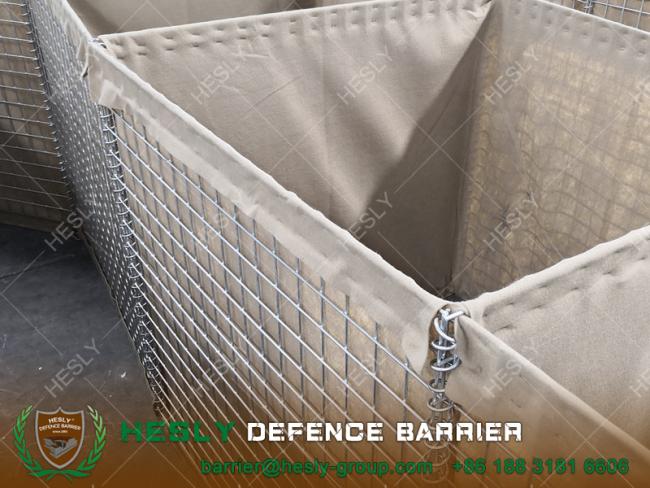

The HESLY Military Defensive Barriers unit is a multi-cellular barrier system manufactured from welded Hot-dipped galvanised steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.
 |
 |
 |

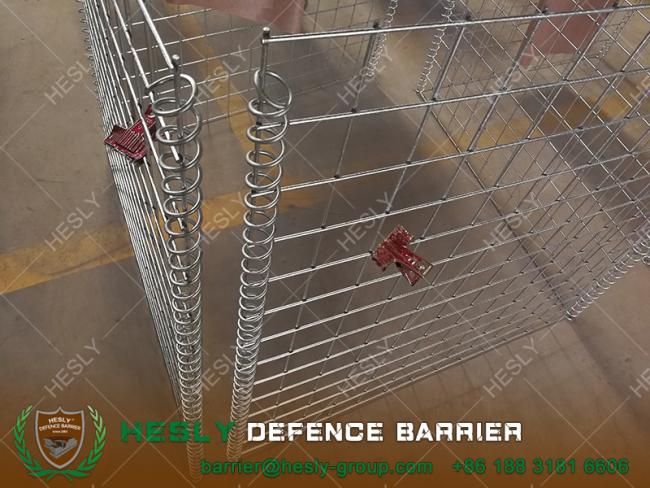

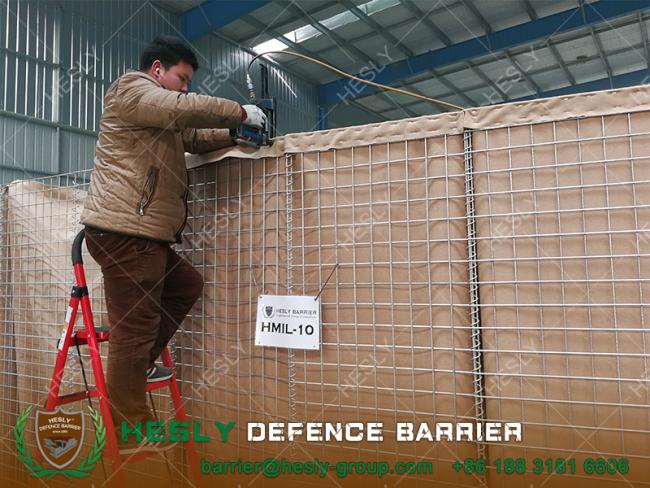

| Welded Gabion Barrier | Military Security Bastion | Defensive Barrier Wall |
About the newest Recoverable Defensive Barriers
The recoverable Defensive Barriers provides the same high-specification welded mesh and geotextile as standard HMIL units, but the new recoverable feature means that individual cells can be opened by removing just one pin, allowing the fill material to be released from the unit.
Recoverable HMIL units are deployed in exactly the same way as the standard HMIL products. Once the mission is over, efficient recovery for disposal can begin. To recover the units for disposal simply open the cell by removing the pin, this allows the fill material to flow freely from the cell. The units can then be recovered fully intact and flat packed for transportation for recycling or disposal, providing substantial reduction in logistical and environmental impact.
Protection is afforded by the fill material of the structure as a consequence of its mass and physical properties, allied with the proven dynamic properties of Concertainer units.

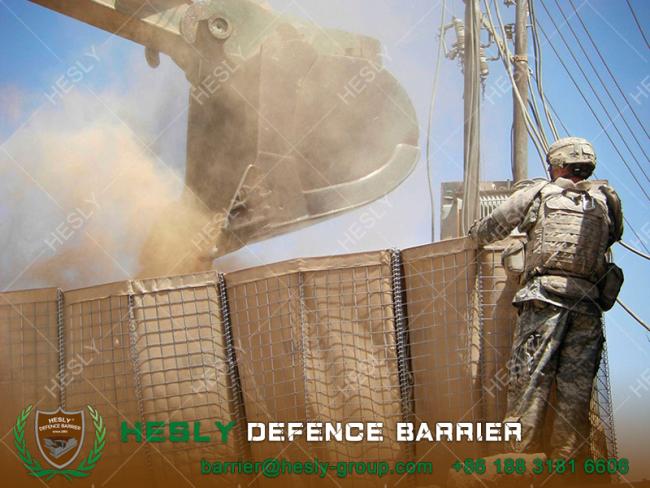

Whether used as a preventative barrier or to define boundaries, HESLY Gabion Barrier units have been employed to safeguard personnel, vehicles, equipment, facilities and other critical assets in a variety of military, peacekeeping, humanitarian and civilian operations.
Applications include:
|
|
| HESLY® Military Gabion Barriers | |||
| Model | HEIGHT | WIDTH | LENGTH |
| MDB1 5442 | 54’’(1.37M) | 42’’(1.06M) | 32’9’’(10M) |
| MDB2 2424 | 24’’ (0.61M) | 24’’(0.61M) | 4’(1.22M) |
| MDB3 3939 | 39’’(1.00M) | 39’’(1.00M) | 32’.9’’(10M) |
| MDB4 3960 | 39’’(1.00M) | 60’’(1.52M) | 32’.9’’(10M) |
| MDB5 2424 | 24’’(0.61M) | 24’’(0.61M) | 10’(3.05M) |
| MDB6 6624 | 66’’(1.68M) | 24’’(0.61M) | 10’(3.05M) |
| MDB7 8784 | 87’’(2.21M) | 84’’(2.13M) | 91’(27.74M) |
| MDB8 5448 | 54’’(1.37M) | 48’’(1.22M) | 32’.9’’(10M) |
| MDB9 3930 | 39’’(1.00M) | 30’’(0.76M) | 30’’(9.14M) |
| MDB10 8760 | 87’’(2.21M) | 60’’(1.52M) | 100’(32.50M) |
| MDB11 4812 | 48’’(1.22M) | 12’’(0.30M) | 4’(1.22M) |
| MDB12 8442 | 84’’(2.13M) | 42’’(1.06M) | 108’(33M) |
| NOTE: We accept OEM/ODM, and can design and make the barriers according to special requirements. | |||
 |
 |

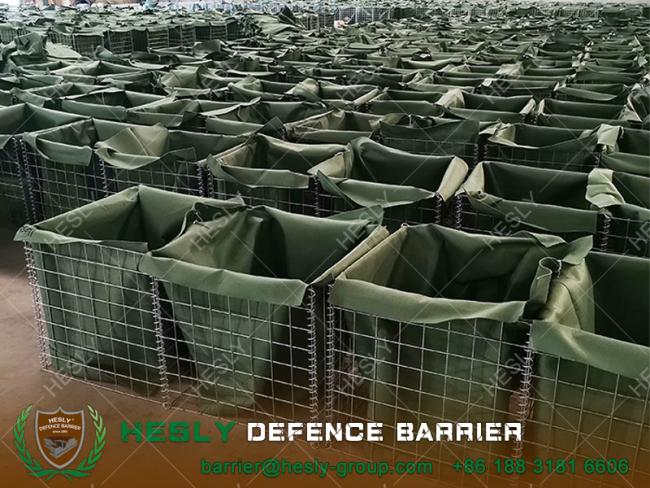

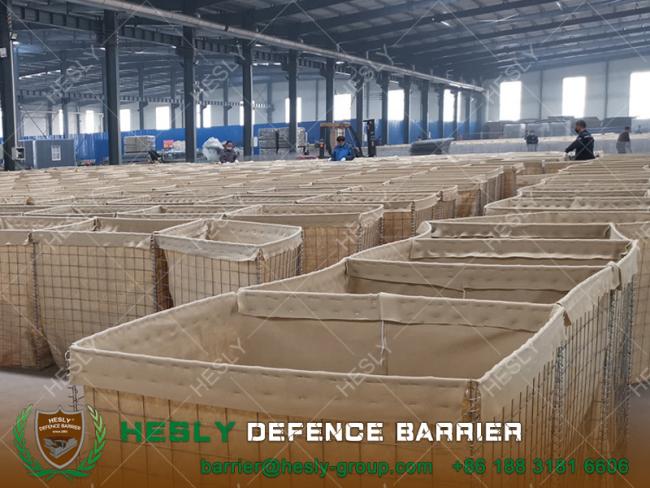

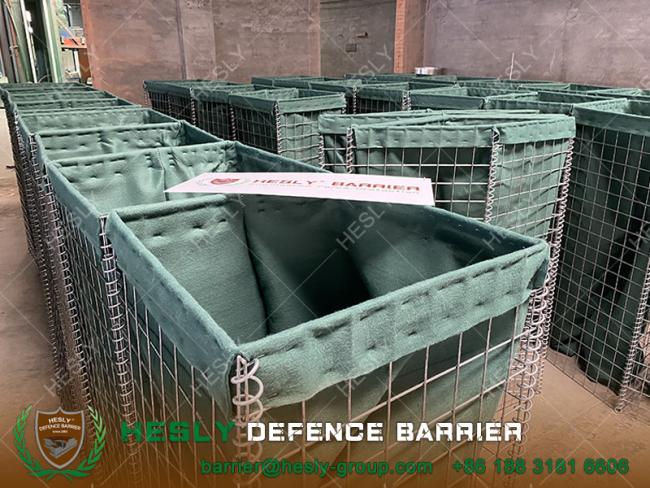

| Military Defensive Barrier | Peacekeeping Barrier |
 |
 |
| Military Sand Barrier | Welded Gabion Barrier |
 |
 |
| Africa Gabion Barrier Wall | HESLY Defensive Barrier |

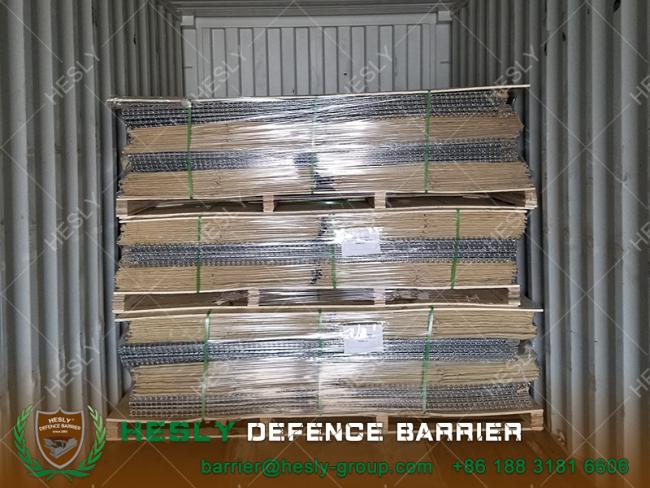

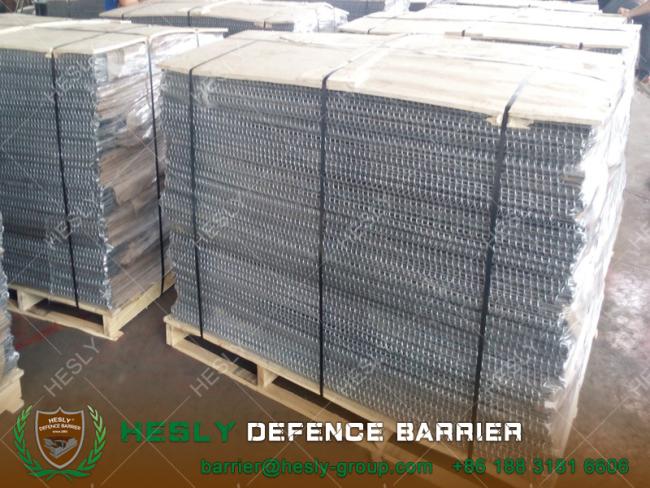

Package and Delivery
 |
 |
| Defensive Barrier China | Military Defensive Barrier |
 |
HESLY Gabion Defence Barrier Factory |
