75X155mm Diamond Hole Golden Aluminum Expanded Metal Sheet | China Supplier
Frost Powder Coated Aluminum Expanded Metal with 75X155mm diamond hole
Aluminum expanded metal is an aluminum sheet that has been simultaneously slit and stretched into a rigid, non-raveling mesh with diamond-shaped openings. It provides a screening effect, allowing light, sound, air and water to pass through.
 |
 |
In architectural building, the uses of Aluminum Expanded Metal products are becoming popular. A variety of architectures made of expanded metal in the form of sheets or coils are used for wall construction. Using the latest technology made by cutting and expansion, the aluminum expanded metal are more lightweight but strong bearing capacity. Conventional wall construction is a major net steel diamond-shaped hole, used in high-rise building, civilian room, plants and other large plastering works for a mortar substrate mount strong, cracking, earthquake and other characteristics of a modern architectural building in the new metal building materials.
 |
 |
General Specs of Al Expanded Metal Sheet
|
Mesh SWD X LWD |
Strand Width | THK | Max Width |
Weight Alu. △ |
Weight M.G.S Steel ☆ |
Open Area |
| (mm) | (mm) | (mm) | (mm) | Kg/m2 | Kg/m2 | (%) |
| 11X50 | 3 | 2.0 | 2500 | 2.95 | ---- | 45 |
| 11X50 | 3 | 2.5 | 2500 | 3.69 | ---- | 45 |
| 36X120 | 16 | 2.5 | 2500 | 6.02 | ---- | 12 |
| 36X120 | 16 | 3.0 | 2500 | 7.22 | ---- | 12 |
| 35X76 | 12 | 2.0 | 2500 | 3.71 | ---- | 30 |
| 35X76 | 12 | 2.5 | 2500 | 4.65 | ---- | 30 |
| 15X80 | 2.0 | 2.0 | 2500 | 1.44 | ---- | 73 |
| 15X80 | 2.5 | 2.5 | 2500 | 2.25 | ---- | 66 |
| 24X60 | 10 | 3.0 | 2500 | 6.77 | ---- | 17 |
| 24X60 | 10 | 2.5 | 2500 | 5.64 | ---- | 17 |
| 22X45 | 5.0 | 2.0 | 2500 | 2.46 | ---- | 55 |
| 22X45 | 5.0 | 2.5 | 2500 | 3.07 | ---- | 55 |
| 28X50 | 5.0 | 2.5 | 2500 | 2.41 | ---- | 65 |
| 28X50 | 6.0 | 3.0 | 2500 | 3.48 | ---- | 57 |
| 20X40 | 3.0 | 3.0 | 2500 | 2.43 | ---- | 70 |
| 20X40 | 4.0 | 3.0 | 2500 | 3.25 | ---- | 60 |
| 10X115 | 2.5 | 2.5 | 2500 | 3.38 | ---- | 50 |
| 10X115 | 3.0 | 3.0 | 2500 | 4.87 | ---- | 40 |
| 75X155 | 25 | 2.5 | 2500 | 4.51 | ---- | 33 |
| 75X155 | 25 | 3.0 | 2500 | 5.41 | ---- | 33 |
| “△” : Aluminium Material; “☆”: Mild Steel / Galvanised Steel / Stainless Steel | ||||||
Reference Photos
 |
 |
| Aluminium Expanded Metal Mesh | anodic oxidation Expanded Metal Mesh |
 |
 |
| Al Expanded Metal | Aluminium Expaned Metal Sheet |
 |
 |
| Aluminium Expanded Metal Sheet | Aluminium Expanded Metal Sheet |
 |
 |

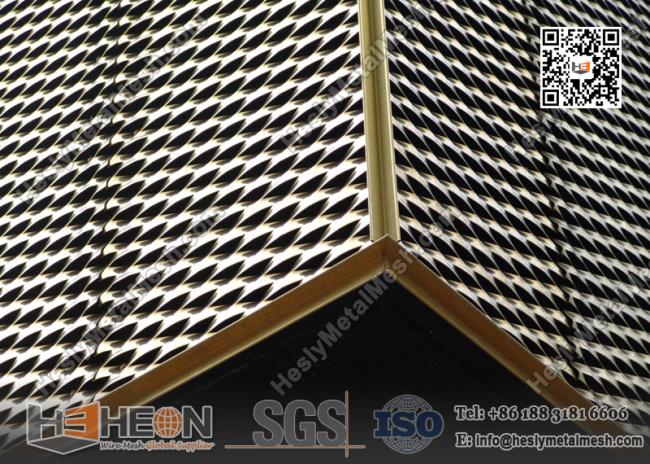

| China Expanded Metal Factory | China Expanded Metal Exporter |
