Brief Introduction

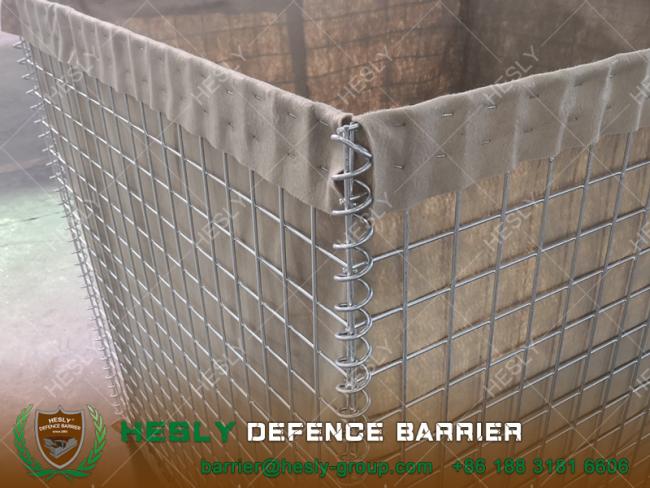

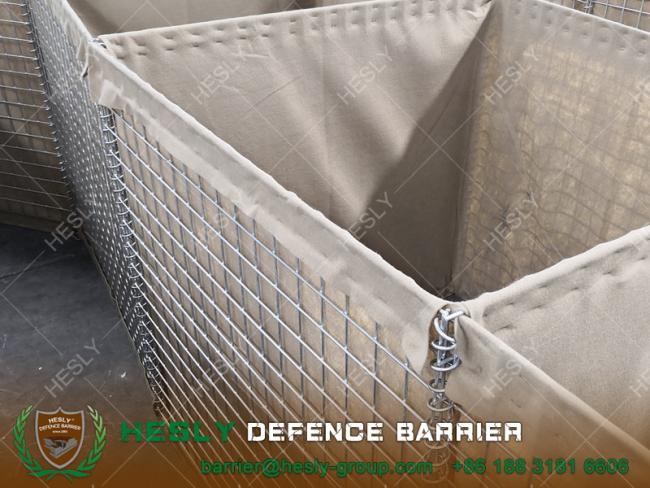

The HESLY Military Defensive Barriers unit is a PATENT product, which is a multi-cellular barrier system manufactured from welded Hot-dipped galvanised steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.
About the newest Recoverable Defensive Barriers

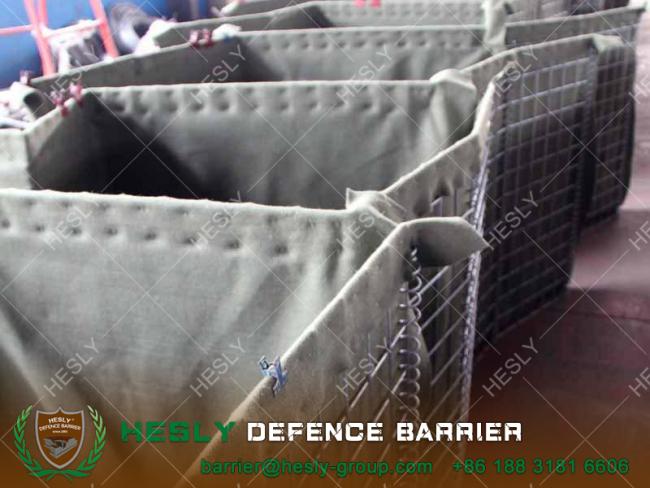

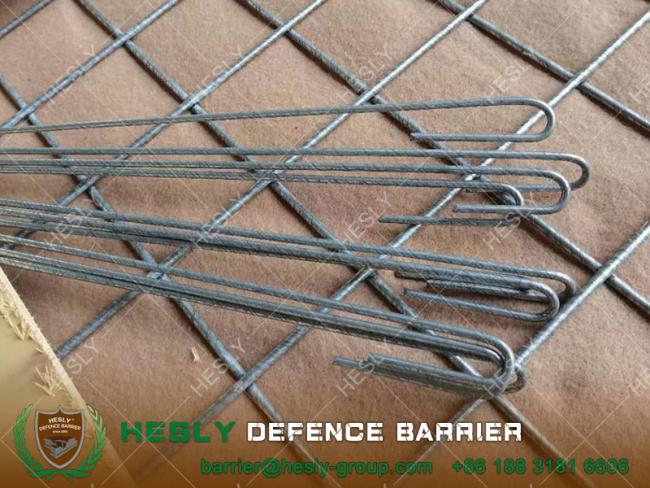

The recoverable Defensive Barriers provides the same high-specification welded mesh and geotextile as standard defensive barrier units, but the new recoverable feature means that individual cells can be opened by removing just one pin, allowing the fill material to be released from the unit.
Recoverable defence barrier are deployed in exactly the same way as the standard gabion barrier products. Once the mission is over, efficient recovery for disposal can begin. To recover the units for disposal simply open the cell by removing the pin, this allows the fill material to flow freely from the cell. The units can then be recovered fully intact and flat packed for transportation for recycling or disposal, providing substantial reduction in logistical and environmental impact.
 |  |  |
| Recoverable Bastion Barrier | HESLY Defensive Barrier | Military Gabion Barrier |
Protection is afforded by the fill material of the structure as a consequence of its mass and physical properties, allied with the proven dynamic properties of Concertainer units.
Whether used as a preventative barrier or to define boundaries, HESLY Gabion Barrier units have been employed to safeguard personnel, vehicles, equipment, facilities and other critical assets in a variety of military, peacekeeping, humanitarian and civilian operations.
Applications include:
|
|
| General Specification Sheet - HESLY Defensive Barriers | ||||
| Model | Height | Width | Length | Structure |
| MDB-1 5442 | 1.37m(54") | 1.06m(42") | 10m(32'9") | 5cells+4cells |
| MDB-2 2424 | 0.61m(24") | 0.61m(24") | 1.22m(4') | 2cells |
| MDB-3 3939 | 1.00m(39") | 1.00m(39") | 10m(32'9") | 5cells+5cells |
| MDB-4 3960 | 1.00m(39") | 1.52m(60") | 10m(32'9") | 10cells+10cells |
| MDB-5 2424 | 0.61m(24") | 0.61m(24") | 3.05m(10') | 5cells |
| MDB-6 6624 | 1.68m(66") | 0.61m(24") | 3.05m(10') | 5cells |
| MDB-7 8784 | 2.21m(87") | 2.13m(84") | 27.74m(91') | 4cellsX2+5cells |
| MDB-8 5448 | 1.37m(54") | 1.22m(4') | 10m(32'9") | 5cells+4cells |
| MDB-9 3930 | 1.00m(39") | 0.76m(30") | 9.14m(30') | 6cells+6cells |
| MDB-10 8760 | 2.21m(87") | 1.52m(60") | 32.5m(100') | 5cellsX6 |
| MDB-11 4812 | 1.22m(4') | 0.30m(12") | 1.22m(4') | 2cells |
| MDB-12 8442 | 2.13m(84") | 1.06m(42") | 33m(108') | 5cellsX6 |
| NOTE: OEM/ODM is available. Barrier dimensions can be custom-made. | ||||
Reference Photos
 |  |

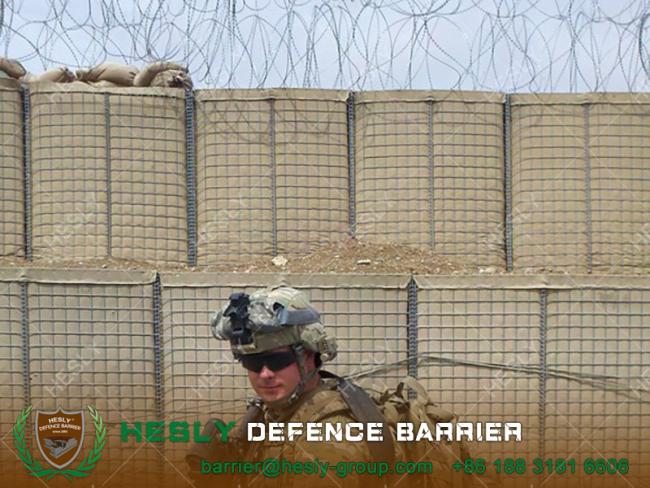

| Defensive Barrier Bune | Military Gabion Barrier |
 |  |

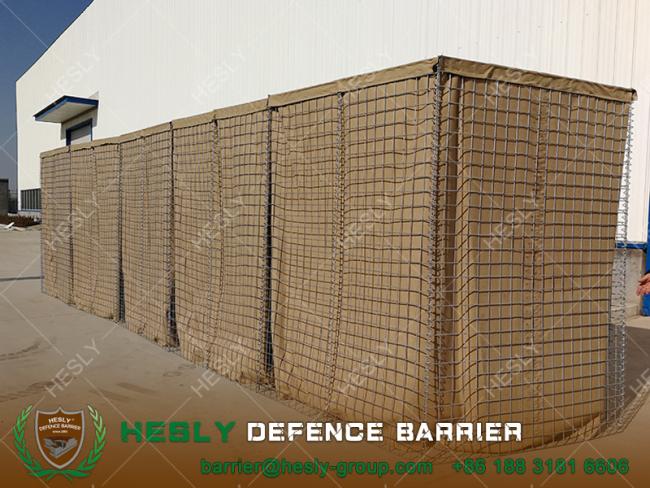

| HESLY Defensive Barrier 1m High | Military Defensive Barriers 2.74m high |
 |  |

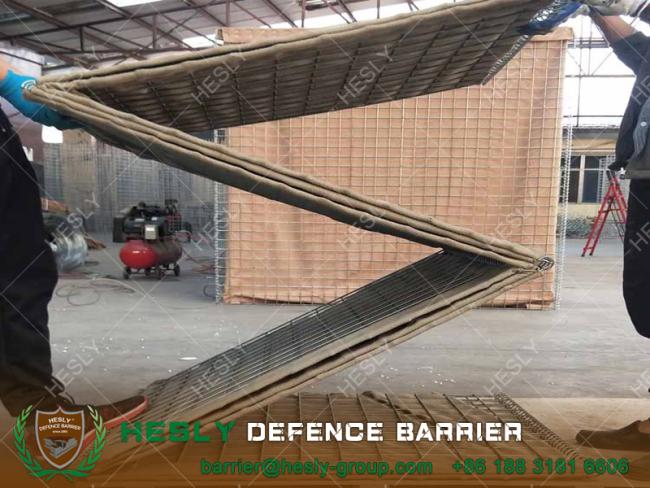

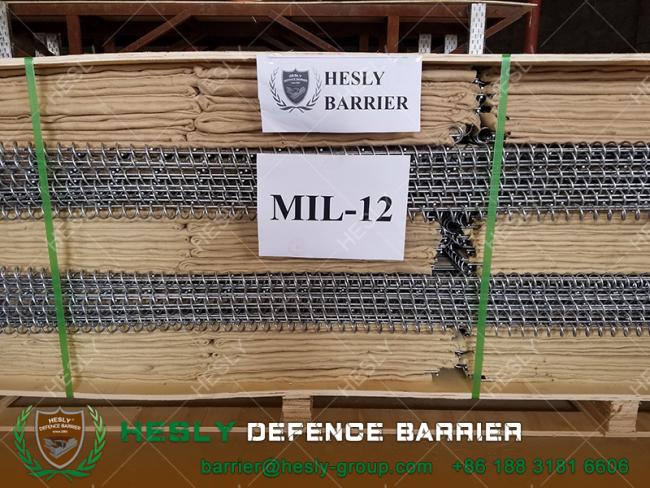

| HESLY Defensive Barrier Factory | HESLY Defensive Barrier Factory |
 |  |
| Military Defensive Barrier | Defense Barrier |
