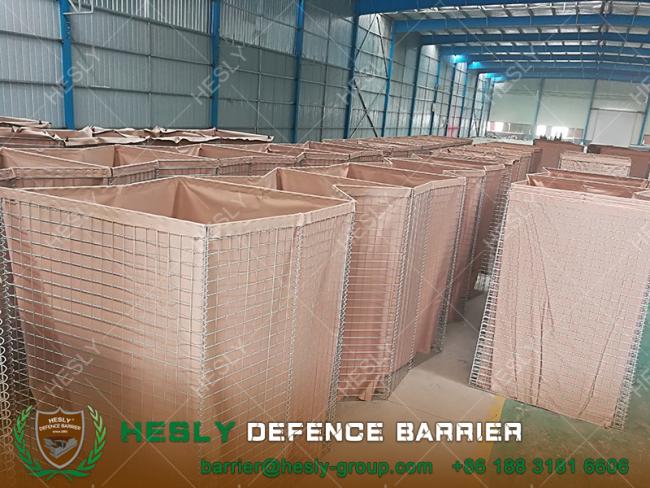

Military Sand Barrier for bunker, Guard Post

The HESLY Military Bastion Barriers unit is a multi-cellular barrier system manufactured from welded Hot-dipped galvanised steel wire mesh and joined with vertical, helical-coil joints. The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create barriers of exceptional strength and structural integrity.

All HESLY barriers are pre-assembled and delivered palletized with joining pins, to enable the connection of individual units, which can then be filled with available material using minimal manpower and commonly available equipment.

Protection is afforded by the fill material of the structure as a consequence of its mass and physical properties, allied with the proven dynamic properties of Concertainer units.

Whether used as a preventative barrier or to define boundaries, HESLY Gabion Barrier units have been employed to safeguard personnel, vehicles, equipment, facilities and other critical assets in a variety of military, peacekeeping, humanitarian and civilian operations.

Defence of HESLY Gabion barriers

The HESLY Bastion Barriers has been fortified by our defensive barriers and our work with the military. From a simple perimeter wall to a complex base infrastructure, HeslyBarrier products provide rapid expeditionary protection to personnel, equipment and critical assets in any terrain.

Applications include:

• Perimeter security
• Defensive barriers
• Equipment revetments
• Ammunition compounds
• Personnel bunkers
• Observation points
• Guard posts
• Ammunition and explosives stores
• Contraband search areas
• Highway checkpoints
• Border crossing checkpoints
• Protecting existing structures
• Traffic management
• Hostile vehicle mitigation

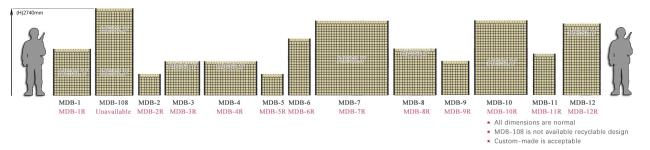

General Specifications



HESLY® Defensive Barriers
Model	Illustration	Height	Width	Length	Cell No.s
MDB-1		1.37m	1.06m	1.06m	9 cells 5cells + 4cells
MDB-2		0.61m	0.61m	1.22m	2 cells
MDB-3		1.0m	1.0m	10m	10 cells 5cells × 2
MDB-4		1.0m	1.52m	10m	20 cells 2 rows=10cells×2
MDB-5		0.61m	0.61m	3.05m	5 cells
MDB-6		1.68m	0.61m	3.05m	5 cells
MDB-7		2.21m	2.13m	27.74m	13 cells 5cells+4cells×2
MDB-8		1.37m	1.22m	10m	9cells
MDB-9		1.0m	0.76m	9.14m	12 cells 6cells×2
MDB-10		2.21m	1.52m	30.5m	20 cells 5cells×2
MDB-11		1.22m	0.30m	1.22m	2 cells
MDB-12		2.13m	1.06m	33m	30cells 5cells×6
MDB-13		2.74m	1.06m	3.18m	6cells





Reference Photos

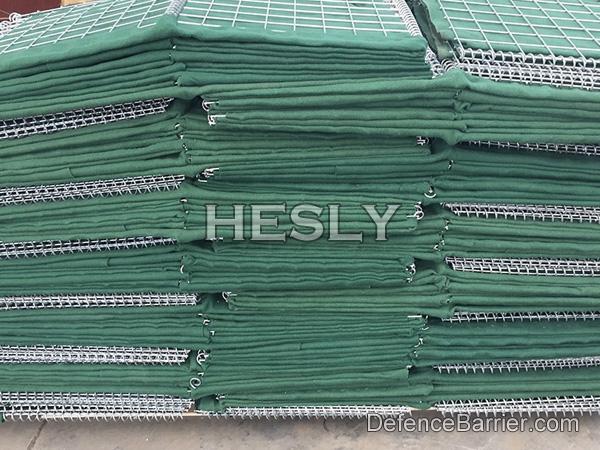

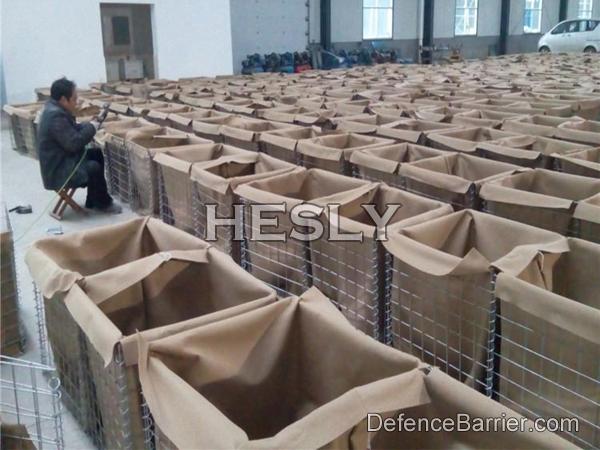

Military Defensive Barrier	HESCO Barrier

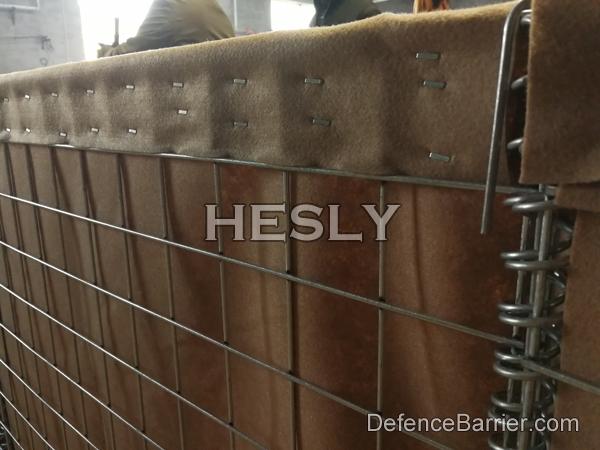

Defensive Barrier	Lined Geotextile

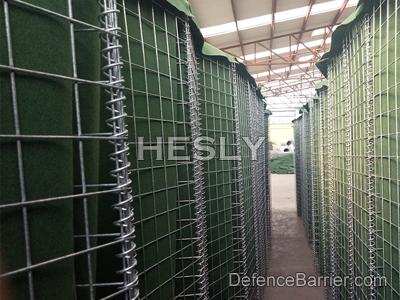

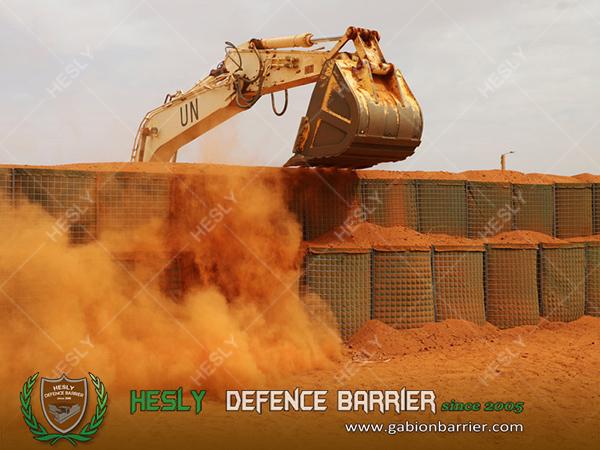

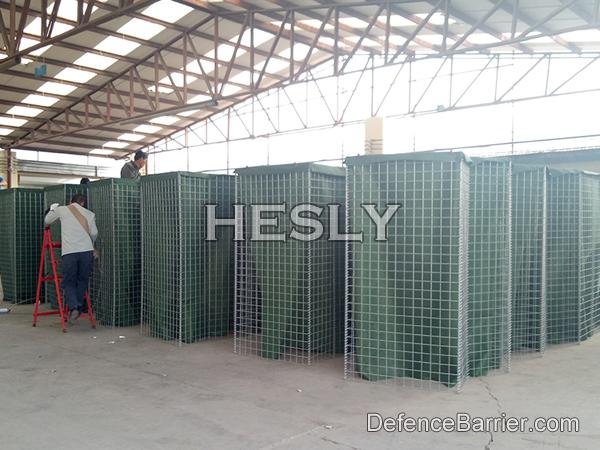

Military Defence Barriers	United Nation Defensive Barrier
