4000T 16mm copper rod upcasting machine with 300 type furnace
Price:
Negotiable
MOQ:
1set
Delivery Time:
60days
Brand:
E&V
Product Description
I, Introduction
Shanghai E&V Brand continuous casting machine is produced by professtional designers through indepentent design and research and gained the reputation both at home and abroad.
II, Main data
| No. | Item | Data |
| 1 | Model No | SYJ1016-I3 |
| 2 | Annual capacity | 5000tons |
| 3 | Furnace structure | 3 body (2 melting,1 holding ) |
| 4 | Casting Strands8 | 8 |
| 6 | Casting rod diameter: | 16mm |
| 7 | Upward casting speed | 0～3000mm/min |
| 8 | Annual working time | 7920hour |
| 9 | Liquid tracking precision | ±2mm |
| 10 | Take-up coil standard | Ф700mm × Ф1500mm× 800mm |
| 11 | Copper melting velocity | 760kg/h |
| 12 | Copper melting power consumption | <350kwh/ton |
| 13 | Take-up form | automatic adjust |
| 14 | Take-up plate driven approach | inverter motor, PLC control |
| 15 | Material feeding method | whole piece of electrolytic copper cathode fed by electric hoist |
| 16 | Upward driven approach | driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet |
| 17 | Rod clamping method | manual clamping |
III,Our advantages
1.Best quality
2.Lowest Price
3.Low consumption,power saving
4.Low production costs
5.Low labor costs
6.Latest design. New Configuration
7.Perfect service,timely customer response
8.No pollution
IV,Unit composition
1.Induction furnace
2.continuous casting machine
3.rack of directive wheels
4.tension device

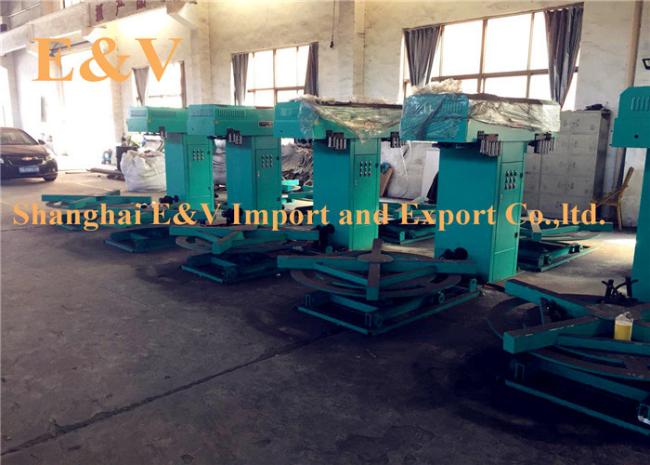

5.two-stroke coiler
6.cooling system
7.electric system
8.feeding system
9.measure temperature system
