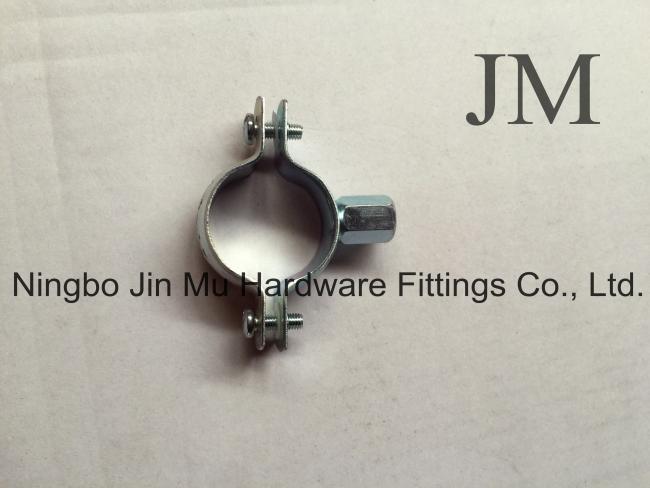

Sanitary Stainless Steel Quick Clamp Tube Fittings , Pipe Support Galvanised Tube Clamps
Size 1 / 2 Inch Pipe Fitting Clamps Without Rubber M8 + M10 Nut
Specifications:
| Pipe Size (Inch) |
Clamp Size |
Material Plate BxS(mm) |
Connection | Locking Screw |
| 3/8 | 16-20 | 20x1.5 | M8/M10 | M5x15 |
| 1/2 | 21-25 | 20x1.5 | M8/M10 | M5x15 |
| 3/4 | 27-32 | 20x1.5 | M8/M10 | M5x15 |
| 1 | 33-36 | 20x1.5 | M8/M10 | M5x15 |
| 1 1/4 | 40-43 | 20x1.5 | M8/M10 | M6x20 |
| 1 1/2 | 47-51 | 20x1.5 | M8/M10 | M6x20 |
| 2 | 59-63 | 20x1.5 | M8/M10 | M6x20 |
| 2 1/2 | 72-76 | 20x1.5 | M8/M10 | M6x25 |
| 3 | 87-91 | 20x1.5 | M8/M10 | M6x25 |
| 4 | 110-115 | 20x1.5 | M8/M10 | M6x25 |
| 4 1/2 | 123-126 | 20x1.5 | M8/M10 | M6x30 |
| 6 | 159-164 | 20x1.5 | M8/M10 | M6x30 |
For fastening:
Pipe lines,such as heating,sanitary and waste water pipes,to walls,cellings and floors.
Properties:
Material: iron
Zinc plating: electro zinc plated,6-8µm
Resistance welded nut: M8
Resistance welded nut: M8/10
Locking screw: combi-slot cheese head screw
Acoustic insulation lining: material:EPDM;chlorine-free;silicone-free
Sound insulation: for DIN 4109
Temperature range: -50° to +110°
Hardness: 45+-5° Shore
Fire behavior: DIN 4102:class B2
