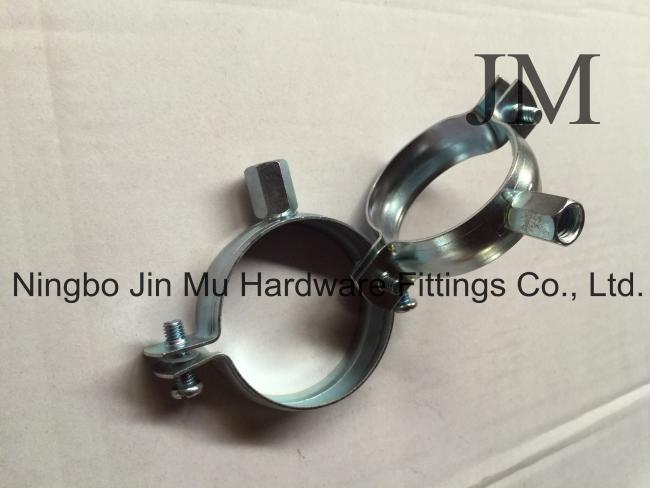

1 Inch Welding Clamps For Tubing , Galvanised Pipe Fittings Tubing Clamps Supports
Size 1 Inch Bandwidth 20mm Pipe Fitting Clamps Without Rubber
Specifications:
| Pipe Size (Inch) |
Clamp Size |
Material Plate BxS(mm) |
Connection | Locking Screw |
| 3/8 | 16-20 | 20x1.5 | M8/M10 | M5x15 |
| 1/2 | 21-25 | 20x1.5 | M8/M10 | M5x15 |
| 3/4 | 27-32 | 20x1.5 | M8/M10 | M5x15 |
| 1 | 33-36 | 20x1.5 | M8/M10 | M5x15 |
| 1 1/4 | 40-43 | 20x1.5 | M8/M10 | M6x20 |
| 1 1/2 | 47-51 | 20x1.5 | M8/M10 | M6x20 |
| 2 | 59-63 | 20x1.5 | M8/M10 | M6x20 |
| 2 1/2 | 72-76 | 20x1.5 | M8/M10 | M6x25 |
| 3 | 87-91 | 20x1.5 | M8/M10 | M6x25 |
| 4 | 110-115 | 20x1.5 | M8/M10 | M6x25 |
| 4 1/2 | 123-126 | 20x1.5 | M8/M10 | M6x30 |
| 6 | 159-164 | 20x1.5 | M8/M10 | M6x30 |
Description:
1. The product bandwidth is 20mm, thickness is 1.5mm.Two screw pipe clamp for all applications
2. M8 + M10 nut combinut.Used with Wood Screw Adapter.
3. Electro galvanized for corrosion resistance(plating thickness 8-10micron).
4. Provides easy and practical mounting by the Pan Head Screws with Type H Cross Recess on each side.
5. Through the nut, the height of the clamp can be adjust ed with a rod easily.
6. Quick and convenient installation
7. Being Fasteners for Pipe lines such as heating, sanitary, and waste water pipes.
8. Installation environment:To walls, ceilings and floors,Indoor and outdoor.
