3 / 8 Inch Heavy Duty Stainless Steel Hose Clamps Corrosion Resistance Quick Installation

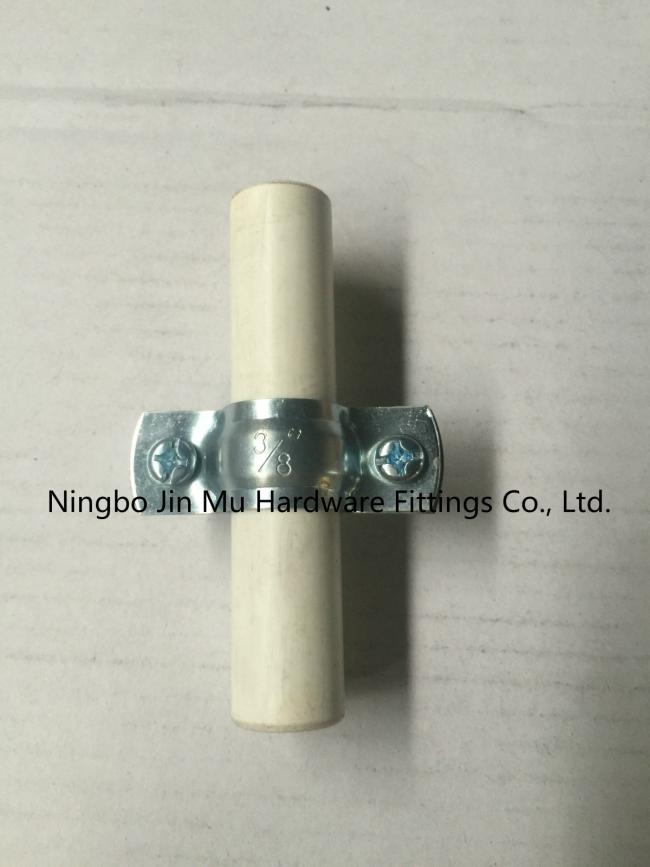

China Manufacturer 3 / 8 Inch Stainless Steel Pipe Clamp Without Rubber M8 Nut
Specifications:
| Pipe Size (Inch) |
Clamp Size |
Material Plate BxS(mm) |
Connection | Locking Screw |
| 3/8 | 16-20 | 20x1.5 | M8/M10 | M5x15 |
| 1/2 | 21-25 | 20x1.5 | M8/M10 | M5x15 |
| 3/4 | 27-32 | 20x1.5 | M8/M10 | M5x15 |
| 1 | 33-36 | 20x1.5 | M8/M10 | M5x15 |
| 1 1/4 | 40-43 | 20x1.5 | M8/M10 | M6x20 |
| 1 1/2 | 47-51 | 20x1.5 | M8/M10 | M6x20 |
| 2 | 59-63 | 20x1.5 | M8/M10 | M6x20 |
| 2 1/2 | 72-76 | 20x1.5 | M8/M10 | M6x25 |
| 3 | 87-91 | 20x1.5 | M8/M10 | M6x25 |
| 4 | 110-115 | 20x1.5 | M8/M10 | M6x25 |
| 4 1/2 | 123-126 | 20x1.5 | M8/M10 | M6x30 |
| 6 | 159-164 | 20x1.5 | M8/M10 | M6x30 |
Description:
1.The product bandwidth is 20mm, thickness is 1.5mm.
2.Two screw pipe clamp for all applications
3. M8 + M10 nut combinut.
4.Used with Wood Screw Adapter.
5.Electro galvanized for corrosion resistance(plating thickness 8-10micron).
6.Plastic Safe Washers on each side prevent the side screws to be lo st during assembly.
7.Provides easy and practical mou nting by the Pan Head Screws with Type H Cr oss Recess on each side.
8.Through the nut, the height of the clamp ca n be adjust ed with a rod easily.
9.The torque nut is welded at least 60 cattle.
10.Product bearing capacity of at least 600 kg or more.
11.Quick and convenient installation
12.Being Fasteners for Pipe lines such as heating, sanitary, and waste water pipes.
13.Installation environment:To walls, ceilings and floors,Indoor and outdoor.
