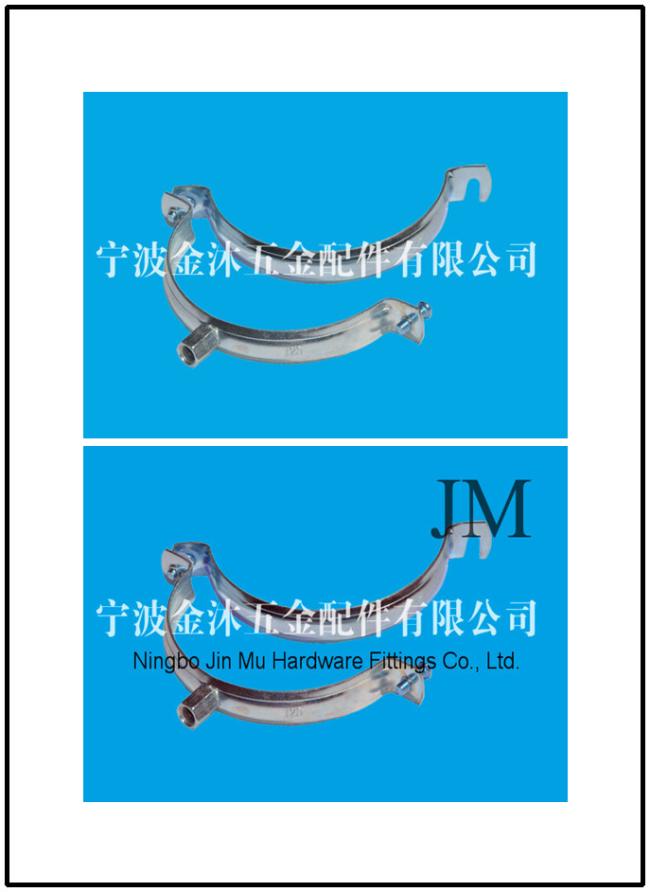

20 mm Bandwidth 1.8 mm Thickness Industrial Hose Clamps with M8 / M10 Connection
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
2 week after receiving the payment
Brand:
JM
Product Description
Wholesale Diameter 250mm Industrial Hose Clamps Without Rubber
Specifications:
| Pipe Size (mm) |
Material Plate BxS(mm) |
Connection | Locking Screw | |
| 100 | 20x1.5 | M8/M10 | M6x20 | |
| 125 | 20x1.5 | M8/M10 | M6x20 | |
| 140 | 20x1.5 | M8/M10 | M6x20 | |
| 150 | 20x1.5 | M8/M10 | M6x20 | |
| 160 | 20x1.5 | M8/M10 | M6x20 | |
| 180 | 20x1.5 | M8/M10 | M6x20 | |
| 200 | 20x1.5 | M8/M10 | M6x20 | |
| 225 | 20x1.5 | M8/M10 | M6x25 | |
| 250 | 20x1.8 | M8/M10 | M6x25 | |
| 315 | 20x1.8 | M8/M10 | M6x25 | |
| 355 | 20x1.8 | M8/M10 | M6x30 | |
| 400 | 20x1.8 | M8/M10 | M6x30 | |
| 430 | 20x1.8 | M8/M10 | M6x40 | |
| 560 | 20x1.8 | M8/M10 | M6x40 | |
| 630 | 20x1.8 | M8/M10 | M6x40 | |
| 1000 | 20x1.8 | M8/M10 | M6x40 | |
Product details
- The product bandwidth is 20mm, thickness is 1.8mm.
- Two screw pipe clamp for all applications
- M8 + M10 nut combinut.
- Used with Wood Screw Adapter.
- Electro galvanized for corrosion resistance(plating thickness 8-10micron).
- Plastic Safe Washers on each side prevent the side screws to be lo st during assembly.
- Provides easy and practical mou nting by the Pan Head Screws with Type H Cross Recess on each side.
- Through the nut, the height of the clamp ca n be adjust ed with a rod easily.
- The torque nut is welded at least 60 cattle.
- Product bearing capacity of at least 600 kg or more.
- Quick and convenient installation
- Being Fasteners for Pipe lines such as heating, sanitary, and waste water pipes.
- Installation environment:To walls, ceilings and floors,Indoor and outdoor.
