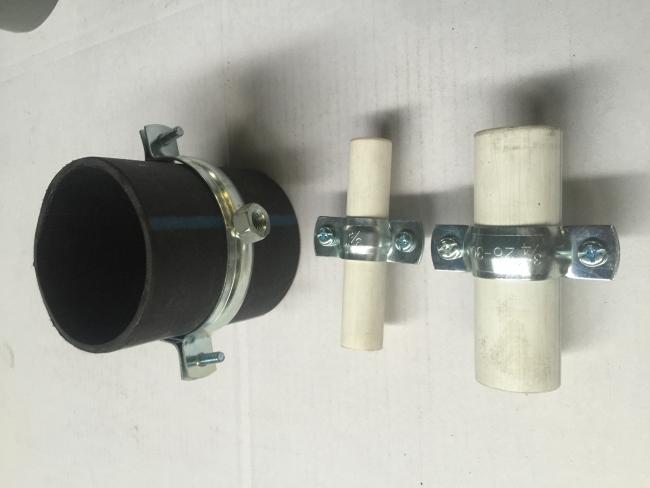

2 Inch Ss Pipe Clamps , Split Ring Hanger Stainless Steel Quick Installation
High Quality Stainless Steel Pipe Clamp Without Rubber Size 3 "
Advantages:
- Zinc galvanized pipe clamp enables one-hand mounting.
- A pipe is preassembled by mere snapping.
- The quick-clamping system protects the clamp against uncontrollable opening after snapping.
- Compact structural design of the clamp enables simple and full piping insulation without larger overlap in the area of the toggle and closing device. All this is possible even using a small thickness of insulating material.
- It prevents the action of electrolysis.
| Pipe Size (Inch) |
Clamp Size |
Material Plate BxS(mm) |
Connection | Locking Screw | Rubber(mm) |
| 3/8 | 16-20 | 20x1.5 | M8/M10 | M5x15 | 20x3.5 |
| 1/2 | 21-25 | 20x1.5 | M8/M10 | M5x15 | 20x3.5 |
| 3/4 | 27-32 | 20x1.5 | M8/M10 | M5x15 | 20x3.5 |
| 1 | 33-36 | 20x1.5 | M8/M10 | M5x15 | 20x3.5 |
| 1 1/4 | 40-43 | 20x1.5 | M8/M10 | M6x20 | 20x3.5 |
| 1 1/2 | 47-51 | 20x1.5 | M8/M10 | M6x20 | 20x3.5 |
| 2 | 59-63 | 20x1.5 | M8/M10 | M6x20 | 20x3.5 |
| 2 1/2 | 72-76 | 20x1.5 | M8/M10 | M6x25 | 20x4.5 |
| 3 | 87-91 | 20x1.5 | M8/M10 | M6x25 | 20x4.5 |
| 4 | 110-115 | 20x1.5 | M8/M10 | M6x25 | 20x4.5 |
| 4 1/2 | 123-126 | 20x1.5 | M8/M10 | M6x30 | 20x4.5 |
| 6 | 159-164 | 20x1.5 | M8/M10 | M6x30 | 20x4.5 |
