Wall Mounted Stainless Steel Hose Clamps / Pipe Fitting Clamps 1 1 / 2 " Size
Price:
Negotiation
MOQ:
Negotiation
Delivery Time:
Within 20 to 30 days after receiving the payment
Brand:
JM
Product Description

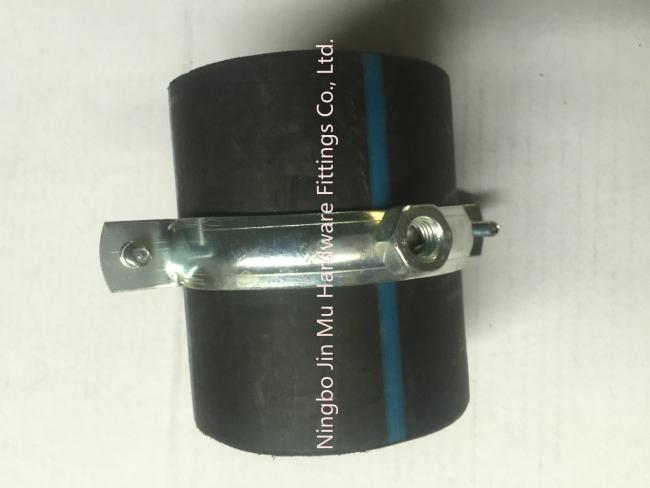

Wall Mounted Stainless Steel Pipe Clamp
Description:
1. The product bandwidth is 20mm, thickness is 1.5mm.
2. M8 + M10 nut combinut.
3. The EPDM rubber provides vibrtion contro l and soun d insulation
4. Electro galvanized for corrosion resistance(plating thickness 8-10micron).
5. Plastic Safe Washers on each side prevent the side screws to be lo st during assembly.
6. Provides easy and practical mou nting by the Pan Head Screws with Type H Cr oss Recess on each side.
7. Through the nut, the height of the clamp ca n be adjust ed with a rod easily.
Specifications:
| Pipe Size (Inch) |
Clamp Size |
Material Plate BxS(mm) |
Connection | Locking Screw | Rubber(mm) |
| 3/8 | 16-20 | 20x1.5 | M8/M10 | M5x15 | 20x3.5 |
| 1/2 | 21-25 | 20x1.5 | M8/M10 | M5x15 | 20x3.5 |
| 3/4 | 27-32 | 20x1.5 | M8/M10 | M5x15 | 20x3.5 |
| 1 | 33-36 | 20x1.5 | M8/M10 | M5x15 | 20x3.5 |
| 1 1/4 | 40-43 | 20x1.5 | M8/M10 | M6x20 | 20x3.5 |
| 1 1/2 | 47-51 | 20x1.5 | M8/M10 | M6x20 | 20x3.5 |
| 2 | 59-63 | 20x1.5 | M8/M10 | M6x20 | 20x3.5 |
| 2 1/2 | 72-76 | 20x1.5 | M8/M10 | M6x25 | 20x4.5 |
| 3 | 87-91 | 20x1.5 | M8/M10 | M6x25 | 20x4.5 |
| 4 | 110-115 | 20x1.5 | M8/M10 | M6x25 | 20x4.5 |
| 4 1/2 | 123-126 | 20x1.5 | M8/M10 | M6x30 | 20x4.5 |
| 6 | 159-164 | 20x1.5 | M8/M10 | M6x30 |
20x4.5 |
