API 5L GR.B LSAW Epoxy Resin Steel Pipe from China supplier

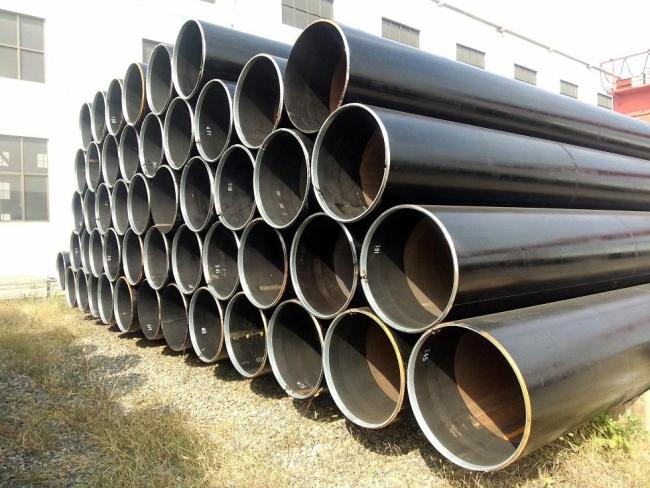

API 5L GR.B LSAW Epoxy Resin Steel Pipe
The API welded steel pipe is essentially an oil or natural gas line pipe that has been sent through ERW, LSAW, or SSAW process. It has been tested to and complies with the API 5L standard.
The main purpose of the API welded steel pipe is to convey oil, gas, or water to the end user. The pipe comes with one of the three types of ends: plain ends, threaded ends, or socket end. Correspondingly the joining method can be butt welding, threaded, or socket welding.
1. Welded: 1 1/2"-100" ( 48.3-2540mm)
2. Material: L210-450,GrB, X42-70 etc.
3.Standards: API 5L
4. Testing: eddy current/hydrostatic/ ultrasonic/ intergranular corrosion.
5. Packing: seaworthy packing
6. Application: for water, oil and gas transmission, ship-building, mining etc.
We supply various types of steel pipes that can be specified as the ASTM, API5L, API5CT, ANSI, EN, BS, DIN, JIS or GB standards. Meanwhile, we can also provide value-added services such as coating, cutting and other light fabrication.
Our products have gained increasing acceptance both at nationwide level and on international scope, such as America, Australia, Europe, the Middle East, and Southeast Asia.
We will strive to offer you first-class services and the high quality products, all available at a competitive price.
Please contact us to know more.
| Spec. | Diameter | Thickness | ||||
| A25.A.B | X42-X70 | |||||
| D<60.3 | +0.41/-0.40mm | D<73 | +20/-12.5% | D≥73 | +15/-12.5% | |
| API SPEC 5L | D≥60.3 | +0.75/-0.40mm | D≥73 | +15/-12.5% | D>73 | +15/-12.5% |
Chemical Composition
| Spec. | Steel Grade | C | Mn | P | S | |
| Max. | Max. | Min. | Max. | Max. | ||
| API SPEC 5L | PSL1 (GB/T9711.2) | |||||
| A25II | 0.21 | 0.6 | 0.03 | 0.03 | ||
| A25III | 0.21 | 0.6 | 0.45 | 0.8 | 0.03 | |
| A | 0.22 | 0.9 | 0.03 | 0.03 | ||
| B | 0.28 | 1.2 | 0.03 | 0.03 | ||
| X42 | 0.28 | 1.3 | 0.03 | 0.03 | ||
| X46.X52.X56 | 0.28 | 1.4 | 0.03 | 0.03 | ||
| X60.X65.X70 | 0.28 | 1.4 | 0.03 | 0.03 | ||
| PSL2 | ||||||
| B | 0.24 | 1.2 | 0.025 | 0.015 | ||
| X42 | 0.24 | 1.3 | 0.025 | 0.015 | ||
| X46.X52.X56 | 0.24 | 1.4 | 0.025 | 0.015 | ||
| X60.X65.X70.X80 | 0.24 | 1.4 | 0.025 | 0.015 | ||
Mechanical Properties
| Spec. | Steel Grade | Yield Strength (MPa) |
Tensile Strength (MPa) | Percentage Elongation | ||
| API SPEC 5L | PSL1 (GB/T9711.2) | |||||
| A25 | 172 | 310 | ||||
| A | 207 | 331 | ||||
| B | 241 | 414 | ||||
| X42 | 290 | 414 | ||||
| X46 | 317 | 434 | ||||
| X52 | 359 | 455 | ||||
| X56 | 386 | 490 | ||||
| X60 | 414 | 517 | ||||
| X65 | 448 | 531 | ||||
| X70 | 483 | 565 | ||||
| PSL2 | ||||||
| Min | Max | Min | Max | |||
| B | 241 | 448 | 414 | 758 | ||
| X42 | 290 | 496 | 414 | 758 | ||
| X46 | 317 | 524 | 434 | 758 | ||
| X52 | 359 | 531 | 455 | 758 | ||
| X56 | 386 | 544 | 490 | 758 | ||
| X60 | 414 | 565 | 517 | 758 | ||
| X65 | 448 | 600 | 531 | 758 | ||
| X70 | 483 | 621 | 565 | 758 | ||
| X80 | 552 | 690 | 621 | 827 | ||
