SUS304 / SUS316L Stainless Steel Extraction Tank With Dimple Pad Jacket

Description of extraction machinery

Usage:

This extraction machinery is used to extract tea from the tea leaves or make medicine from herbal medicine.

Structure:

All the tank walls are made of high quality SUS304 stainless steel, 2B surface, the jacket adopts high density of PU as insulation and was made out of new procedures. This tank can use steam to heat the product inside with steam or hot water inside of the dimple pad, the paddle type agitator is mounted from top at the center.

Standard attachments:

(1). Airtight manhole

(2). High and low level probe

(3). Temperature sensor

(4). Extracted liquid product is discharged from bottom outlet

(5). Dregs are discharged from bottom where a net is fixed to separate the dreg from the liquid product

(6). Top cover is elliptical type and bottom base is of conical type

(7). Pneumatic discharge device can be added according to the customers’ requirements

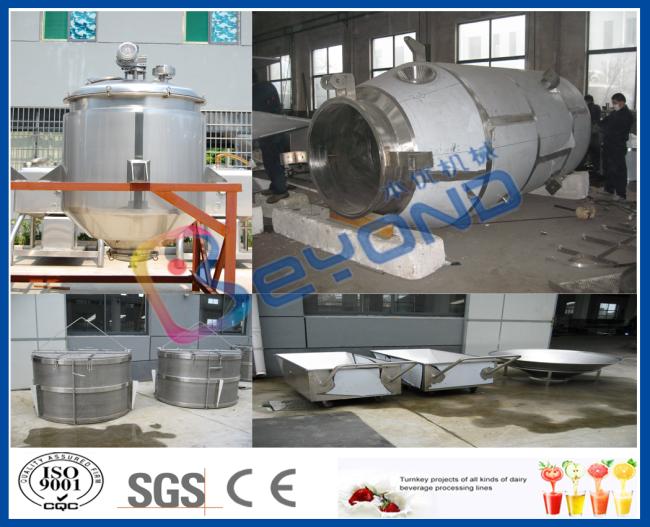

Picture of extraction machinery

Technical parameter of extraction machinery

Packing and shipping

Our service and supplier

Questions and answers

Q1: Are you factory? Can we visit your company before place the order?

A1: Yes, our factory is in Shanghai, China. Welcome to visit us!

Q2: May I get your product catalog?

A2: Sure, please feel free to contact me, I will send you our e-catalog.

Q3: Can you provide me whole production line?

A3: Of course we can, we are engaged in producing the liquid projects used in dairy, fruit juice, beverage, tea and so on products. We can provide you turnkey project.

Wish to have further cooperation with you in the future.
