Industrial Quick Freezing Double Spiral Freezer With High Efficient Cooling Tower 1000kgs/h
Price:
negotiation
MOQ:
1 set
Delivery Time:
30 work days
Brand:
CBFI
Product Description
Industrial High Quality Quick Freezing Spiral Freezer with High Efficient Cooling Tower
Sprial Freezer

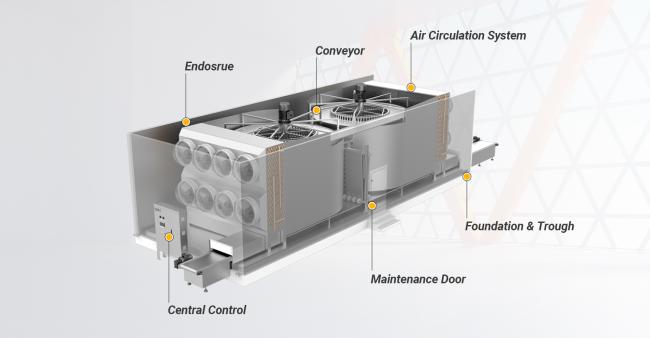

Spiral Freezer Double spiral freezer is a freezing device with small area, energy saving, high efficiency and large
capacity,product is conveyed on mesh belts doing spiral movement inside freezer to make food fast frozen. It is suitable for the quick freezing of bread fermentation,cooling application field and pastry,meat,poultry,seafood,ice cream, dairy products,etc.
capacity,product is conveyed on mesh belts doing spiral movement inside freezer to make food fast frozen. It is suitable for the quick freezing of bread fermentation,cooling application field and pastry,meat,poultry,seafood,ice cream, dairy products,etc.
Rational Design
Rational design,safe and reliable running;the design originated from advanced Europe technology.Double protection,both mechanical and electronic, ensures reliable running. Convenient and flexible production operation:more flexible in input and output direction options and also easier to match with other equipment, realizing streamline production.
Simple Operation and Easy Cleaning and Maintenance
Freezer can be operated only after simple training,no special requirement. Sloped and fully welded base structure is easier for cleaning and faster drainage.Inside space is larger for easier maintenance.
Product Configurations
|
Structure type
|
Double Spiral
|
Cage diameter
|
φ3000
|
Helical layers
|
15*2
|
In and out time
|
20~100min
|
|
Belt width
|
910mm
|
Effective network width
|
840mm
|
Total length of mesh belt
|
498m
|
Currency height
|
100mm
|
|
Installed capacity
|
72kw
|
Cooling capacity
|
370kw
|
Chamber temperature
|
-35℃
|
Library board thickness
|
120mm
|
|
Defrost method
|
Water melting frost
|
Refrigeration
|
-42℃/+35℃
|
||||
|
Library size
|
16300*6300*3800mm
|
In and out rack
|
Feeding frame 1600mm, discharging frame 1000mm
|
||||
