40 Ton Industrial Flake Ice Machine For Fish / Meat / Seaweed Evaporative Cooling
CBFI Underquote 10 ton/Day Flake Ice Machine Air Cooling/Water for Industrial Cooling

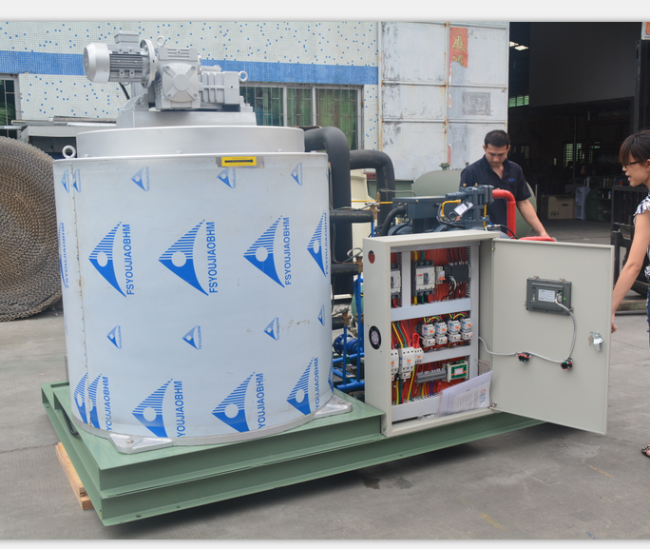

CBFI Ice flake machine
Main Features
1) Space saved: the structure is compact and simple.
2) Full automatically: the whole ice making and droping process are controlled by PLC controller.
3) High refrigeration efficiency: the latest evaporator with vertical spiral ice cutter is adopted. Water is sprayed by the sprinkler on the inner wall of the evapotator, forming ice quickly. At the same time, the spiral cutter cuts the forming ice, which makes full use of the evaporator surface and increases the efficiency of ice making.
Advantages of flake ice
1) Higher refrigeration efficiency and lower loss of refrigeration capacity.
2) High quality, dry and non-caked.
3) Widly use for different area.
Parameter
| model | Ice making capacity |
Cooling Capacity | Machine dimension |
Weight of machine |
| NO. | TON/24H | KW | W X H X L(mm) | KG |
| BF500 | 0.5 | 3.75 | 1220*900*1000 | 200 |
| BF1000 | 1.0 | 8.85 | 1300*960*1200 | 250 |
| BF2000 | 2.0 | 17.84 | 1500*1200*1350 | 360 |
| BF3000 | 3.0 | 24.15 | 1800*1250*1400 | 1000 |
| BF5000 | 5.0 | 35.1 | 2100*1250*1500 | 1100 |
| BF8000 | 8.0 | 52.7 | 2500* 2040*2200 | 1300 |
| BF10000 | 8.0 | 76.1 | 2300 * 2000 *2200 |
1500 |

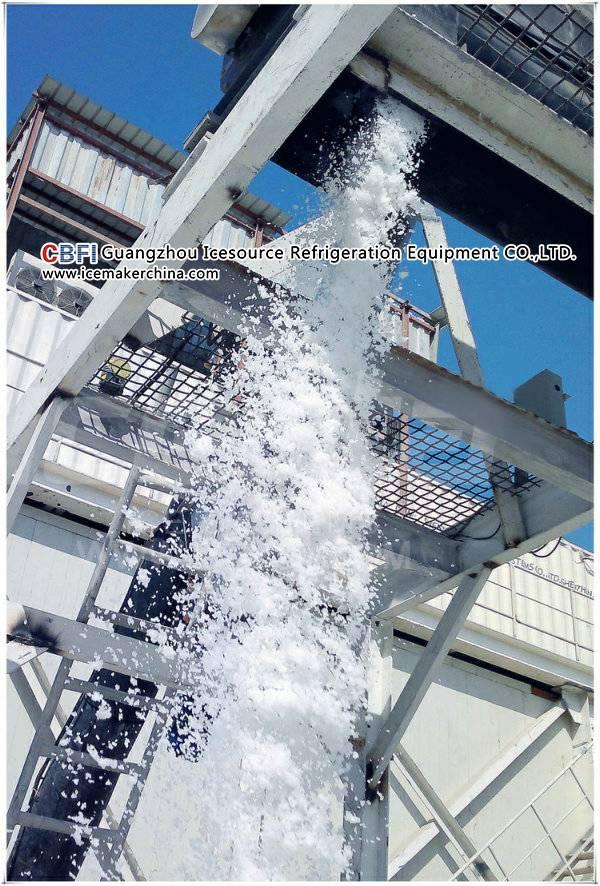

Customer cases
50 tons flake ice machine with Raking System Automatic ice packing in Morocco
20 Tons Flake Ice Machine with 40 Tons Raking System Automatic ice packing in Mozambique
20 Tons Flake Ice Machine with screw automatic ice packing in Qatar for Concrete cooling
2 sets of 10 Tons flake ice machine in Maldives
