CE Approved R507 Refrigerant Ice Tube Machine for Beverage Easy Installation
CBFI CE Approved 30 Ton Per Day Water Cooling Tube Ice Machine Easy Installation for Beverage
Features:
1)Automatic discharging outlet :(save labor and guarantee sanitary )Which can help save lot of labor cost when doing the ice business
2)High efficiency: will apply the HOT liquid Storage tank, make the machine at least make ice one more times every day.
3)Long life span: The tube we will import the Japan 304 SUS Seamless steel pipe,which can at least use for 20years.
4)Shockproof coper tube: avoiding refrigerant coper pipes and evaporator welds being damaged during transportation or using.
5)Specail compressor protecting device:CBFI self-developed oil balance system makes sure lack of oil to compressor when it running.
Product Model:
| Model | Ice Making Capacity | Rated Power | Circulationg Water Pump Power | Cooling Water Pump Capacity | Cooling Fan Capacity | Ice Cutter Motor | Machine Dimension | Weight of Machine |
|---|---|---|---|---|---|---|---|---|
| No. | Ton/24h | Kw | Kw | Kw | Kw | Kw | WxHxL(mm) | KG |
| TV10 | 1.0 | 4.28 | 0.55 | 1.1 | 0.18 | 0.75 | 1100x900x1760 | 900 |
| TV20 | 2.0 | 7.77 | 0.55 | 1.5 | 0.37 | 0.75 | 1250x1000x1950 | 1200 |
| TV30 | 3.0 | 12.33 | 1.1 | 1.5 | 0.56 | 0.75 | 1400x1100x2200 | 1500 |
| TV50 | 5.0 | 21 | 1.5 | 2.2 | 0.75 | 1.5 | 1600x1400x2250 | 1800 |
| TV100 | 10.0 | 29.2 | 1.5 | 4 | 1.5 | 1.5 |
1200x1200x3100 2300x1550x1800 |
3500 |
| TV150 | 15.0 | 49 | 2.2 | 5.5 | 1.5 | 1.5 |
1500x1200x4500 2700x1950x2250 |
4250 |
| TV200 | 20.0 | 58.5 | 2.2 | 5.5 | 2.2 | 2.2 |
1600x1300x4700 3100x2200x2250 |
6500 |
| TV300 | 30.0 | 87.6 | 2.2 | 15 | 2.2 | 2.2 |
3000x2200x2500 2200x1900x6200 |
7200 |

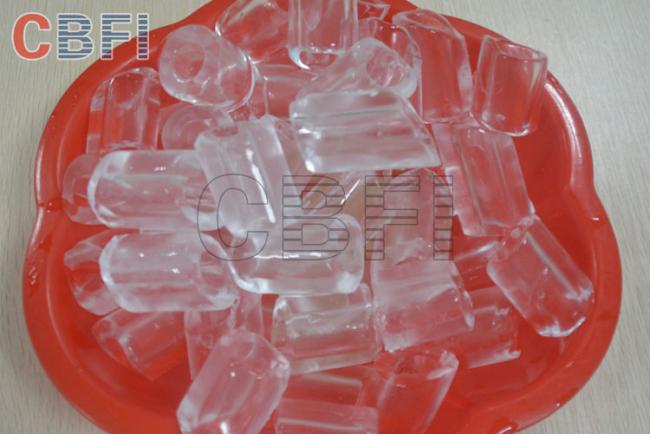

Commercial used Tube Ice
1. Daily Capacity : 1 ~ 30 ton
2. Ice making cycle : 20 ~ 25 mins
Machine Installation :

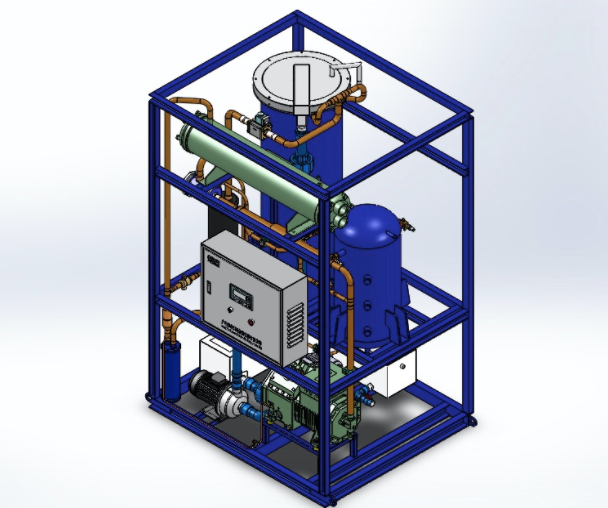

The 3 ton per day tube ice machine use all in one design , we will finish everything in our factory , you just only need to connect the water pipe between the machine and the cooling tower, then you can start the ice machine.( we will offer you all necessary part of the ice machine , even the water pipe we will send to you )

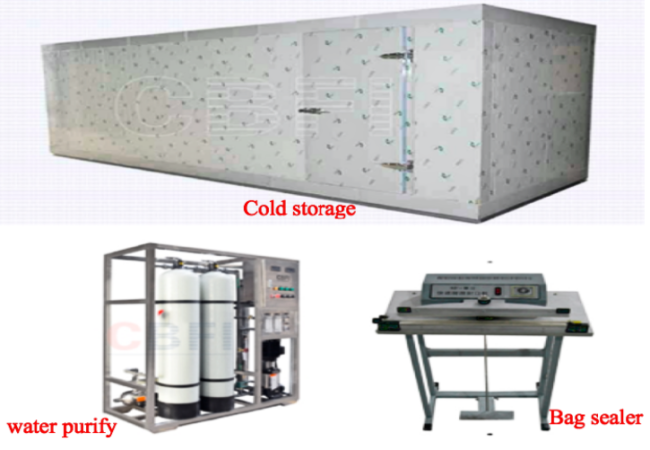

Supporting equipment for the 30 ton per day tube ice machine
1. Cold room: for ice storage , make sure the ice can last for longer time
2. Digital scale : make each bags with same kg
3. Bag sealer : sealing the ice bag
4. Ice bin : easy for the ice packing
1. The payment can be T/T, L/C, Western Union/ Money Gram and cash.
2. Deposit is 30%. Balance is 70%. When we get your deposit, we start to produce the machine. The balance should be paid before shipping.
3. The delivery time is about 40 days after the deposit.
4. We can also ship for you if you pay the freight to us.
