CBFI Pure Ice Machine 220V 1P 50Hz For Ice Sculpture And Nightclubs
CBFI PIM0202 Pure Ice Machine
CBFI PIM0202 Pure Ice Machine for ice sculpture and nightclubs
Introduction
The pure ice machine is a direct-cooling evaporator made of food-grade aluminum with high-efficiency heat conduction. The water is placed on the direct-cooling evaporator through the mold, which is different from the traditional salt-type five-sided icing method. The ice machine is only one side icing on the bottom, and the ice formation speed is slow, but the ice cube has high transparency, no bubbles, high hardness, ice rule, no blank groove in the middle, and can be processed into ball ice, big ice, etc. according to demand. It is used for whisky and other purposes, as well as ice sculpture.
Features
1. Leading transparent ice-forming technology, easy to operate and durable.
2. Fully transparent ice with no blank grooves in the middle, 100% ice block usage rate;
3. Under the premise of water source sanitation, transparent ice cubes reach food-grade standards;
4. Compact, easy to transport, move, and install on site.
Pure Ice Application
Celebration party, company sentiment, ceremony, ice sculpture, nightclub and etc.
Parameters
| PIM-02 | ||||
| Power Supply | 220V/50HZ/1P | |||
| Refrigerant | R507 | |||
| Evaporating Temperature | ℃ | -23 | ||
| Condensing Temprature | ℃ | 40 | ||
| Ambient Temperature | ℃ | 32 | ||
| Water Supply Temperature | ℃ | 20 | ||
| Ice Thickness | mm | 250 | ||
| Ice Size | mm | 1000*500*250 | ||
| Single Ice Block | Kg | 112.5 | ||
| Capacity per time | Kg | 225 | ||
| Quantity of ice per time | piece | 2 | ||
| Ice Making Time | h | 70 | ||
| Equipment Size (L*W*H) | mm | 1300*1225*973 | ||
| Power | kW | 0.66 | ||
| ♦ Compressor Brand: Copeland; Refrigerant: R507; Cooling Method: Air cooling;
♦ Power Supply: 220V/1P/50Hz; (For non-standard voltage, unit configuration needs to be calculated separately). ♦ Remark: The actual ice production varies due to the influence of water supply temperature and ambient temperature. ♦ Remark: Design and specifications subject to change without notice. |
||||
Details

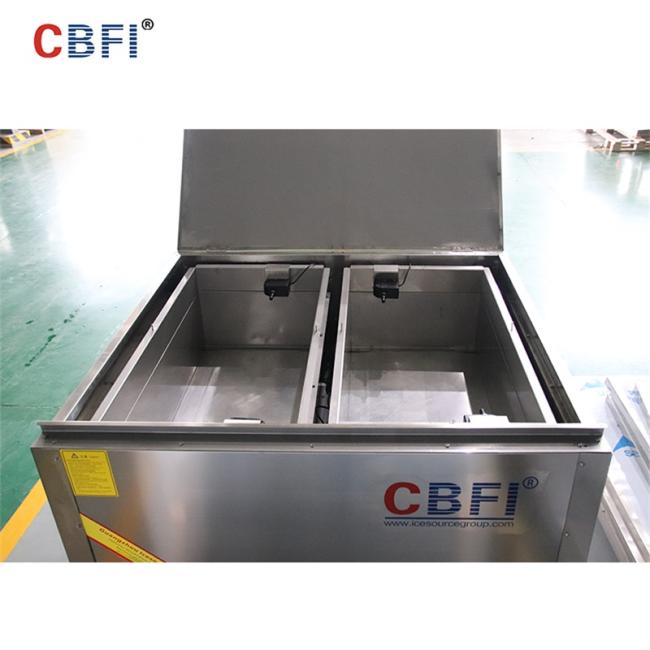

Machine made by stainless steel and aluminium, ensured the safety and sanitation.
