Fail Secure Electromagnetic Lock Anti - Residual Magneism Designed
280KG / 600LBS 5 Wires Electronic Magnetic Lock for Single Door
Features
1. Collinear Load Test 280kg / 600pounds.
2. Dual Voltage 12 or 24 VDC(optional).
3. The Standad Voltage is 12VDC when Finished.
4. MOV Provides Reverse Current Protection.
5. Anti-Residual Magneism Designed.
6. High Strength Material,Anodized Aluminum Housing.
7. Design with no Mechanical Bolt.
8. Increase the holding Force,Dual Insulative Hosing.
Product Parameter
| Lock Size | 250L*47W*26H(mm) |
| Armature Plate Size | 180*38W*11H(mm) |
| Holding Force | 280KG / 600LBS |
| Input Voltage | DC12V / DC24V |
| Current | DC12V/450mA; DC24V/200mA |

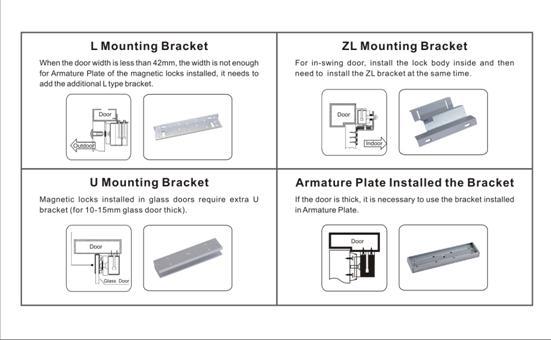

| Accessories | U Bracket, L bracket, ZL Bracket |
| Working temperature | -10~+55℃(14-131F) |
| Singal Output | Yes, door status feedback by LED |
| Cover Finish | Anodized Aluminum |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
Product Overview
Glass door, wooden door, fireproof door, sliding door and metal door can be fixed with single door magnetic lock. 600lbs is the holding force. Aluminum is the main material. Special anti-residual magnetism designed makes the access control automation safer and electric lock more durable.

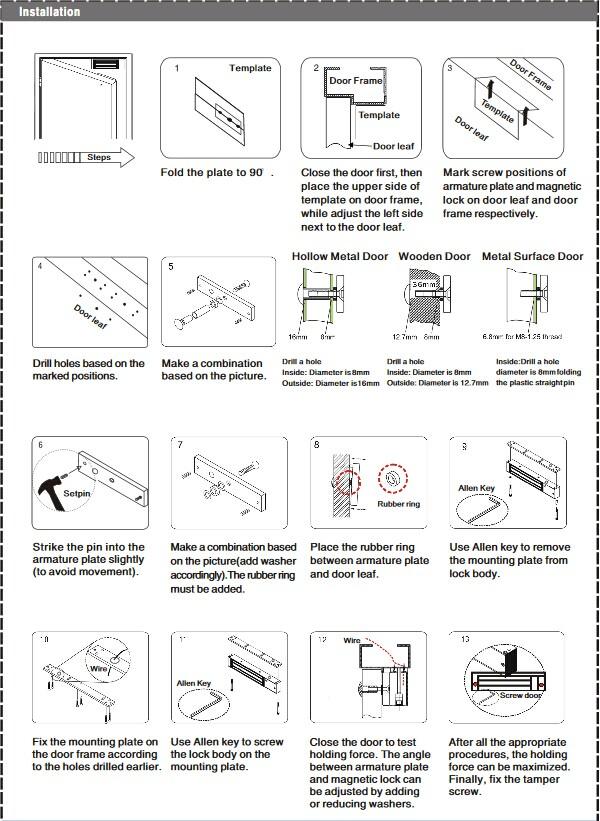

EL280-5 is a electro magnetic lock is a surface mount type with necessary brackets. It comes with necessary screws and installation papers. Good kits for resellers and installers. Its holding force is 280kg or 600lbs.
Fail-safe working type, door unlock when power off. It works together with door exit button, when press button, the door unlock/open. It is suitable for single door with frames.
Product Photoes
